Gradient Lens Luxxor User Manual page 4

seTuP

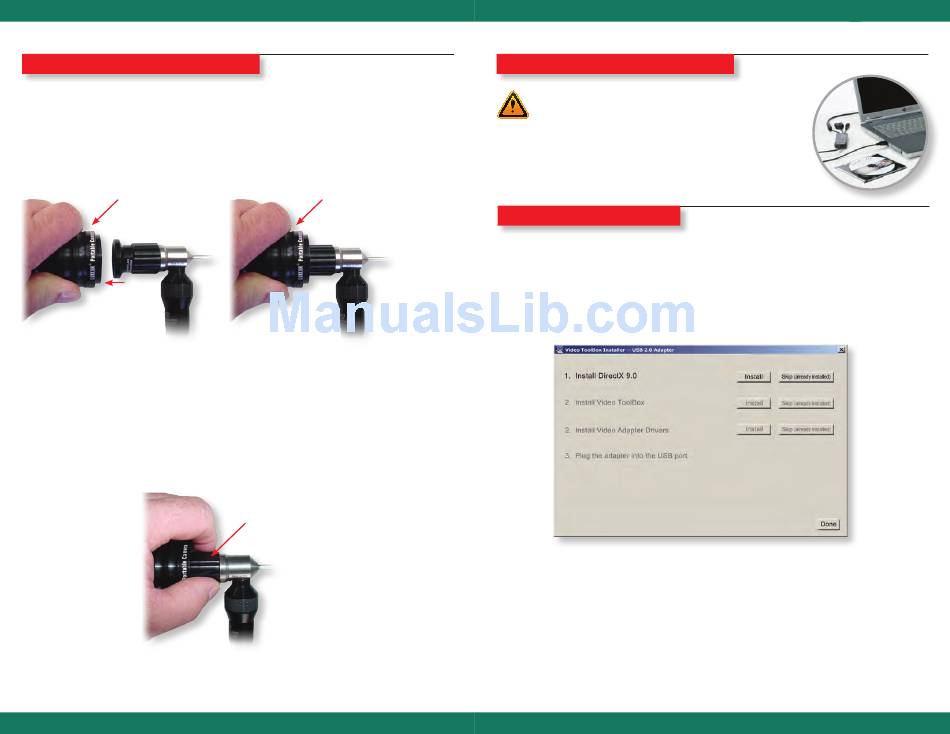

attach the Camera to Your Borescope
To attach the Luxxor Portable Camera to your Hawkeye
®
1. Pull back the grooved ring at the head of the camera.
2. Insert the borescope eyecup fully into the camera head.
3. Release the grooved ring.
Pull back
insert
Focus the image on your monitor by rotating the focus ring of the Hawkeye
series borescope.
The Luxxor Portable Camera is designed to be used with Hawkeye
®
borescopes. It may be used with other borescopes, but their focusing controls
may not be easily accessible.
6 Phone: 800.536.0790 fax 585.235.6645 gradientlens.com info@gradientlens.com
Luxxor Portable Video Camera User Guide
®
Pro series borescope:
®
release
Pro
®
Pro series
®
Focus ring
Luxxor Portable Video Camera User Guide
®
Computer ready Option
warning: The included software drivers
MusT be installed BeFOre the VC-usB2 is
connected to your computer's usB port.
install the software
1. Insert the included CD into your computer's CD-ROM drive.
2. Open the My Computer window and double-click on the CD-ROM icon.
3. Double-click on the installer program – Video ToolBox Installer USB2b.exe.
4. The program will display the following window:
If you are not sure that DirectX 9.0 or later is already installed, press the INSTALL button.
The software will not load if a newer version already exists on your computer.
5. The installer will now move to the Install Video ToolBox step. Click INSTALL to install
the Video ToolBox software.
Phone: 800.536.0790 fax 585.235.6645 gradientlens.com info@gradientlens.com
seTuP
7
