seTuP
Luxxor Portable Camera
®
The Luxxor Portable Camera is shipped with
®
a Y-cable, which allows it to be connected
to any video monitor with a composite input
(NTSC format).
The Y-cable has a 6-pin circular connector
at one end. The other end splits into two: an
RCA phono plug providing composite video
output and a power supply.
Attach the 6-pin connector to the Luxxor
VideoCamera.
4 Phone: 800.536.0790 fax 585.235.6645 gradientlens.com info@gradientlens.com
Luxxor Portable Video Camera User Guide
®

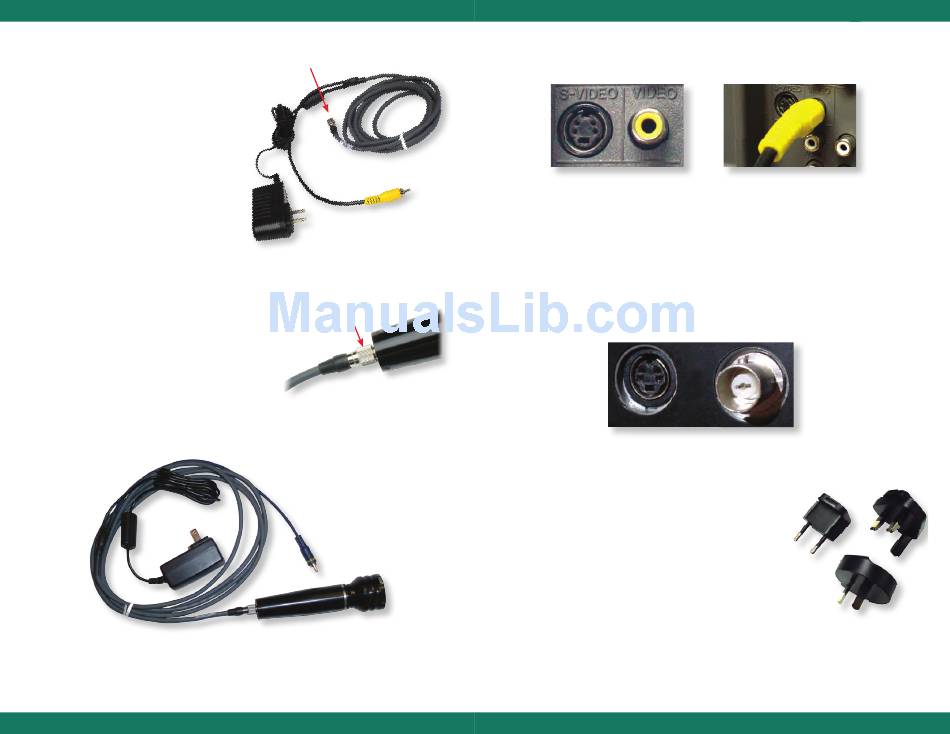

6-Pin Y-cable
Power supply
Portable
®
Luxxor Portable Video Camera User Guide
®
Connect the composite video output connector to your monitor's composite input.
Composite
Normally this is an RCA phono jack, usually colored yellow, and labeled Video,
Video Out
Video In, Composite In, or just Input.
note: The larger the video screen, the poorer the image resolution will appear at a
particular viewing distance.
The composite video output connector may also be connected to a monitor with an
S-Video Input or BNC Input with an appropriate adapter (sold separately).
Plug the power supply into a 100-240 VAC, 50-60 Hz outlet.
Adapters for a few common power outlets are included.
(UK, EU, etc.)
The Luxxor Portable Camera is powered On when the
®
cable is connected and the power supply is plugged in.
There is no power switch.
