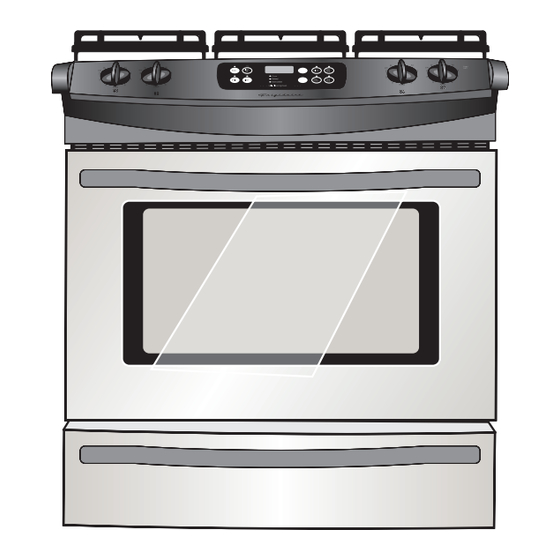

Frigidaire FGS365E Parts Catalog

30-inch slide-in gas range
Hide thumbs

Advertisement

FGS365EC.eps LA20BG0057.eps BRFGS365ECH.eps B79036933900.eps
LA20CT0068.eps DFES365ECE.eps
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Product No.
FGS365ECJ
Series
30" gas
Color
black
Market
North America
Wiring Diagram
318550110
Owner's Guide
318203872
Installation Instructions 318201673
Service Data Sheet
318127060
Timer Guide
318200184
318550110-1.eps 318550110-2.eps
Publication No.
5995554044
09/10/20
(EN/SERVICE/BJH)
377
30-INCH SLIDE-IN GAS
RANGE
Model No.
FGS365E
©
Copyright
2009 Electrolux Home Products, Inc.
All rights reserved.

Advertisement

loading

  Also See for Frigidaire Frigidaire FGS365E

  Related Manuals for Frigidaire Frigidaire FGS365E

  Summary of Contents for Frigidaire Frigidaire FGS365E

  • Page 1 FGS365EC.eps LA20BG0057.eps BRFGS365ECH.eps B79036933900.eps RANGE LA20CT0068.eps DFES365ECE.eps 318550110-1.eps 318550110-2.eps Electrolux Major Appliances Model No. North & Latin America FGS365E P.O. BOX 212378 AUGUSTA, GA 30917 Publication No. 5995554044 09/10/20 (EN/SERVICE/BJH) © Copyright 2009 Electrolux Home Products, Inc. All rights reserved.
  • Page 2 Publication No: 5995554044 FGS365ECJ BACKGUARD 10/09...
  • Page 3 FGS365ECJ Publication No: 5995554044 BACKGUARD POS. NO PART NO. DESCRIPTION 318299102 Console, assy., black 318235186 Panel, control, black 318224402 Panel, control mtg. 20 # 318414218 Clock/Timer, electronic, black, ES300 316419103 Overlay, clock, black, ES300 5304453707 Screw, 8-18 X 1/2 24 # 316005602 Switch, rocker, black 318233720...
  • Page 4 Publication No: 5995554044 FGS365ECJ BURNER 10/09...
  • Page 5 FGS365ECJ Publication No: 5995554044 BURNER POS. NO PART NO. DESCRIPTION 318305600 Manifold, right side 318305601 Manifold, left side 318305410 Tube, manifold, 3/8, interconnect 318233920 Valve, top burner, 12000 BTU 2B # 318233900 Valve, top burner, 5000 BTU 2C # 318233910 Valve, top burner, 9500 BTU 318232618 Wiring Harness, w/igntr switch...
  • Page 6 Publication No: 5995554044 FGS365ECJ BODY 10/09...
  • Page 7 FGS365ECJ Publication No: 5995554044 BODY POS. NO PART NO. DESCRIPTION 318259220 Back, main 318225110 Panel, main back, upper 318258902 Shield, insulation, upper 318225210 Panel, bodyside, upper RH 318225211 Panel, bodyside, upper LH 318175508 Screw, leveling, w/tee nut 318345207 Rack, oven 318290501 Panel, oven, bottom 318367401...
  • Page 8 Publication No: 5995554044 FGS365ECJ BODY 10/09...
  • Page 9 FGS365ECJ Publication No: 5995554044 BODY POS. NO PART NO. DESCRIPTION 318335500 Anti-tip & accessories 318335600 Frame & Wheel Assembly, black 318298230 Frame, drawer, black 219# 318003633 Thermostat, safety 318236201 Shield, hidden wires 318306604 Harness, wiring, main 5304400192 Retainer, wiring 3051050 Screw, shoulder 08016432 Screw, truss head, 8-18 x 0.375...
  • Page 10 Publication No: 5995554044 FGS365ECJ 10/09...
  • Page 11 FGS365ECJ Publication No: 5995554044 POS. NO PART NO. DESCRIPTION 318107105 Drawer 318298812 Panel, drawer, stainless, front 318229900 Cover, wiring 318332200 Roller, nylon 316135702 Module, spark 318298601 Bracket, drawer support, (2) 318018100 Channel, drawer, RH 318018101 Channel, drawer, LH 318287708 Cook Top Assy, glass, black 318231304 Grate, black, (2) 318307504...
  • Page 12 Publication No: 5995554044 FGS365ECJ DOOR 10/09...
  • Page 13 FGS365ECJ Publication No: 5995554044 DOOR POS. NO PART NO. DESCRIPTION 318260401 Trim, oven door, side, (2) 318262111 Cover, rear door, black, (2) 318260522 Baffle, door 318372000 Insulation, door, (2) 318372002 Insulation, door, (2) 316117500 Glass, oven door, heat barrier 318360108 Liner, oven door 5304452028 Screw, handle mtg, 10-14 x 1/2, (2)
  • Page 14: Wiring Diagram

    Publication No: 5995554044 FGS365ECJ WIRING DIAGRAM 10/09...
  • Page 15 FGS365ECJ Publication No: 5995554044 WIRING DIAGRAM 10/09 # Functional Parts * Non-Illustrated Parts...
