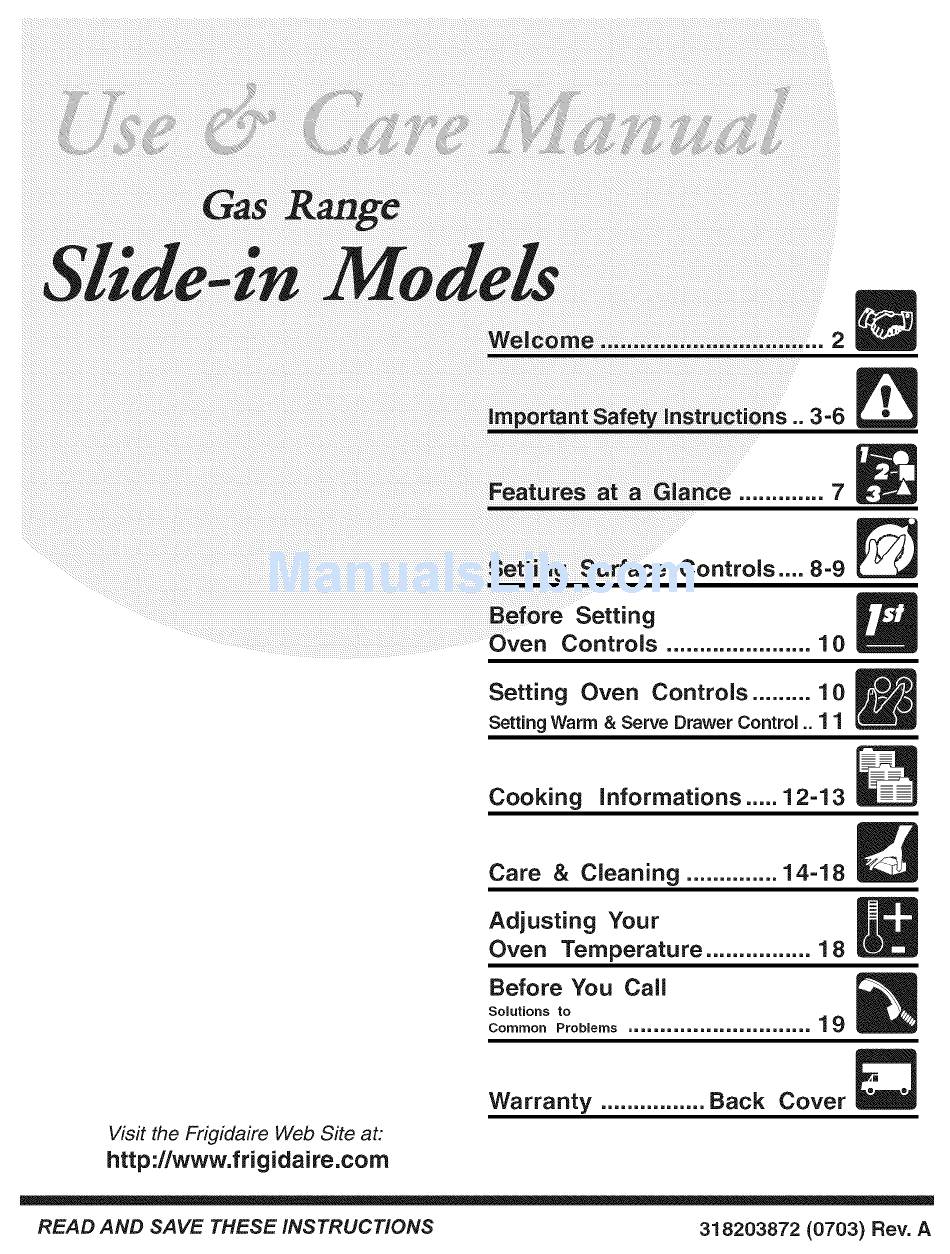

..12-13 Care & Cleaning ....14-18 Adjusting Your Oven Temperature ....Before You Call Solutions Common Problems ......Warranty ....Back Cover Visit the Frigidaire Web Site at: http://www, frigidaire,com READ AND SAVE THESE INSTRUCTIONS 318203872 (0703) Rev. A...
Welcome & Congratulations Congratulations on your purchase of a new appliance! At Electrolux Home Products, we are very proud of our product and are completely committed to Questions? providing you with the best service possible.Your satisfaction is our number one priority.
importantsafety Instructions Read all instructions before using this appliance. Save these instructions for future reference. _mbols and follow all This manual contains important safety symbols and instructions. Please pay attention to these s instructions given. This SYmbol will help alert you to situations that maY cause seiious bodily harm I deat h or property damage. This symbo I wil! he!p alert you to situations that may cause bodi!y injury or property damage, if the information in this manual...
• Storage in or on Appliance--Flammable materials power resumes, reset the clock and oven function. should not be stored in an oven, near surface burners or in the drawer (if equipped). This includes paper, Electronic controllers can be damaged plastic and cloth items, such as cookbooks, plasticware by cold temperatures.
Protectiveliners--Donotusealuminum foiltoline NEVER cover any slots, holes or passages surface burner p ans, o rovenbottom, e xcept a s in the oven bottom or cover an entire rack with materials suggested i nthismanual. I mproper installation o fthese such as aluminum foil. Doing so blocks air flow through the linersmayresult i n riskof electric shock, o r fire.
essential for a good seal. Care should be taken not to Important Safety Notice rub, damage or move the gasket. The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of • Remove oven racks. Oven racks color will change if left substances known to the state to cause cancer, birth in the oven during a self-cleaning cycle.
Electronic O ven Controls withClock andKitchen Timer Surface Burner C ontrol K nobs (Styles andcolorwillvaryby (Styles andcolorwillvaryby model) Removable CastIron model) Grates (Styles andcolor willvarybymodel) Self-Cleaning Oven ..._ Oven Light (2) Adjustable Oven Racks One Piece DoorHandle i iii ii(ii i iiii i iiii i iiii i iiii i iiii i iiiii i Glass Front Oven Doorwith Large...
Assembly of the Surface Burner Heads, Burner Caps and Burner Grates It is very important to make sure that all of the Surface Burner Heads, Surface Burner Caps and Surface Burner Grates are installed correctly and at the correct locations. Oven Vent Remove all packing tape from cooktop area.
rSurfaceControls Operating Gas Surface Controls: Place cooking utensil on surface burner. Push the surface control knob down and turn counterclockwise out of the OFF position. Release the knob and rotate to the LITE position (see figure 1). Note: All four electronic surface ignitors will spark at the same time.
Air Circulation in the Oven For best air circulation and baking results allow2-4" (5-10 cm) around the cookware for proper aircirculation and be sure pans and cookware do not touch each other, the oven door, sides or back of the oven cavity. The hot air must circulate around the pans 1 Oven Rack and cookware in the oven for even heat to reach around the food.
Settingwarm Arranging Warm & Serve Drawer Rack Positions The rack can be used in 2 ways: • In the upright position to allow low profile food items to be placed both under and on top of the rack (for example, rolls or biscuits on top of the rack and a casserole dish underneath).
Cooking in formations Oven Baking For best cooking results, heat the oven before baking cookies, breads, cakes, pies or pastries, etc... There is no need to preheat the oven for roasting meat or baking casseroles. The cooking times and temperatures needed to bake a product may vary slightly from your previously owned appliance. Baking Problems and Solutions Chart Baking Causes...
Cooking lnformations Broiling Broiling is a method of cooking tender cuts of meat by direct heat under the broil element of the oven. Preheating Preheating is suggested when searing rare steaks. (Remove all utensils before preheating the oven. Foods will stick if placed on hot metal.) To preheat, set the control(s) to BROIL as instructed in the Owner's Guide.
Self=Cleaning Self=Cleaning Oven A Self-Cleaning oven cleans itself with high temperatures (well above cooking During the Self-Cleaning temperatures) which eliminate soils completely or reduces them to a fine cycle, the outside of the range can become powdered ash you can wipe away with a damp cloth. very hot to the touch.
(Cleaning Chart) Surfaces How to Clean Aluminum (trim pieces) & Use hot, soapy water and a cloth. Dry with a clean cloth. Vinyl Glass, Painted and Plastic Using a soft cloth, clean with mild dish detergent and water or a 50/50 solution of vinegar and water.
Care & Cleaning Cleaning the Cooktop, Burner Heads, Caps & Grates The cooktop isdesigned to make cleaning easier. Because the gas Burners are sealed, cleanups are easy when spillovers are cleaned up immediately. The cooktop, Burner Heads and Caps should be routinelycleaned. Keeping the Burner Head Ports clean will prevent improper ignition and an uneven flame.
¸ Care& Cleaning Care and Cleaning of Stainless Steel (Stainless Steel models only) Some models are equipped with stainless steel exterior parts. Special care and cleaning are required for maintaining the appearance of stainless parts. Please refer to the table provided at the beginning of the General Care &...
Cam&Cleaning Removing and Replacing Storage Drawer with Extendible Glide (some models) To Remove Storage Drawer: Pull up latch Open the drawer to the fully opened position. Left with finger Locate glide leveron each side of drawer, pull up on the left glide leverand push down on the right glide lever (See Figure 1 ).
/::j i/¸/Before call i¸¸¸¸ Solutions to Common Problems OCCURRENCE POSSIBLE CAUSE/SOLUTION Range is not level. (1) Poor installation. Place oven rack in center of oven. Place a level on the oven rack. Adjust leveling legs at base of range until the rack is level. When range is level, cooktop may appear out of alignment if countertop is not level.
Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed,...
