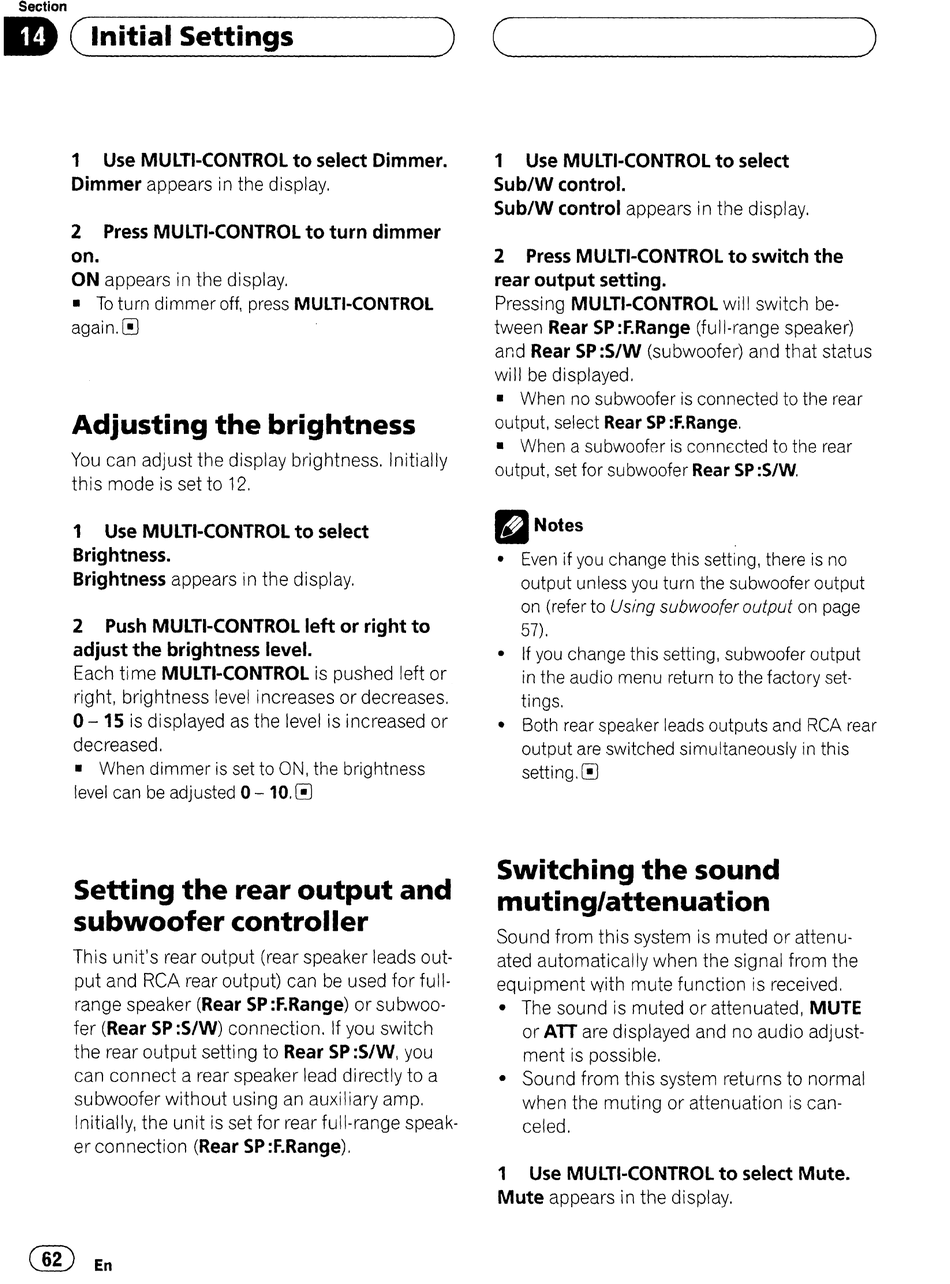

Pioneer DEH-P6800MP Operation Manual page 62

Section
II)
(Initial Settings
)
c~
)
1 Use MULTI-CONTROL to select Dimmer.
Dimmer
appears in the display,
2
Press MULTI-CONTROL to turn dimmer
on.
ON appears in the display,
• To turn dimmer off, press
MULTI-CONTROL
again. [!)
Adjusting the brightness
You can adjust the display brightness. Initially
this mode is set to 12,
1 Use MULTI-CONTROL to select
Brightness.
Brightness
appears in the display.
2
Push MULTI-CONTROL left or right to
adjust the brightness level.
Each time
MULTI-CONTROL
is pushed left or
right, brightness level increases or decreases.
0-
15 is displayed as the level is increased or
decreased.
• When dimmer is set to ON, the brightness
level can be adjusted 0 - 10.0
Setting the rear output and
subwoofer controller
This unit's rear output (rear speaker leads out-
put and RCA rear output) can be used for full-
range speaker
(Rear SP :F.Range)
or subwoo-
fer (Rear SP :S/W) connection. If you switch
the rear output setting to
Rear SP :S/W,
you
can connect a rear speaker lead directly to a
subwoofer without using an auxiliary amp.
Initially, the unit is set for rear full-range speak-
er connection
(Rear SP :F.Range).
@
En
1 Use MULTI-CONTROL to select
Sub/W control.
Sub/W control
appears in the display.
2
Press MULTI-CONTROL to switch the
rear output setting.
Pressing
MULTI-CONTROL
will switch be-
tween Rear SP :F.Range (full-range speaker)
and
Rear SP :S/W
(subwoofet') and that status
will be displayed.
• When no subwoofer is connected to the rear
output, select Rear SP :F.Range.
• When a subwoofer is connected to the rear
output, set for subwoofer
Rear SP :S/W.
BNotes
• Even if you change this setting, there is no
output unless you turn the subwoofer output
on (refer to Using subwoofer output on page
57).
• If you change this setting, subwoofer output
in the audio menu return to the factory set-
tings.
• Both rear speaker leads outputs and RCA rear
output are switched simultaneously in this
setting. [!)
Switching the sound
muting/attenuation
Sound from this system is muted or attenu-
ated automatically when the signal from the
equipment with mute function is received,
• The sound is muted or attenuated, MUTE
or
ATT
are displayed and no audio adjust-
ment is possible,
• Sound from this system returns to normal
when the muting or attenuation is can-
celed.
1 Use MULTI-CONTROL to select Mute.
Mute
appears in the display,
