Grill Bottom/Control Panel Assembly and Tank Wire
5

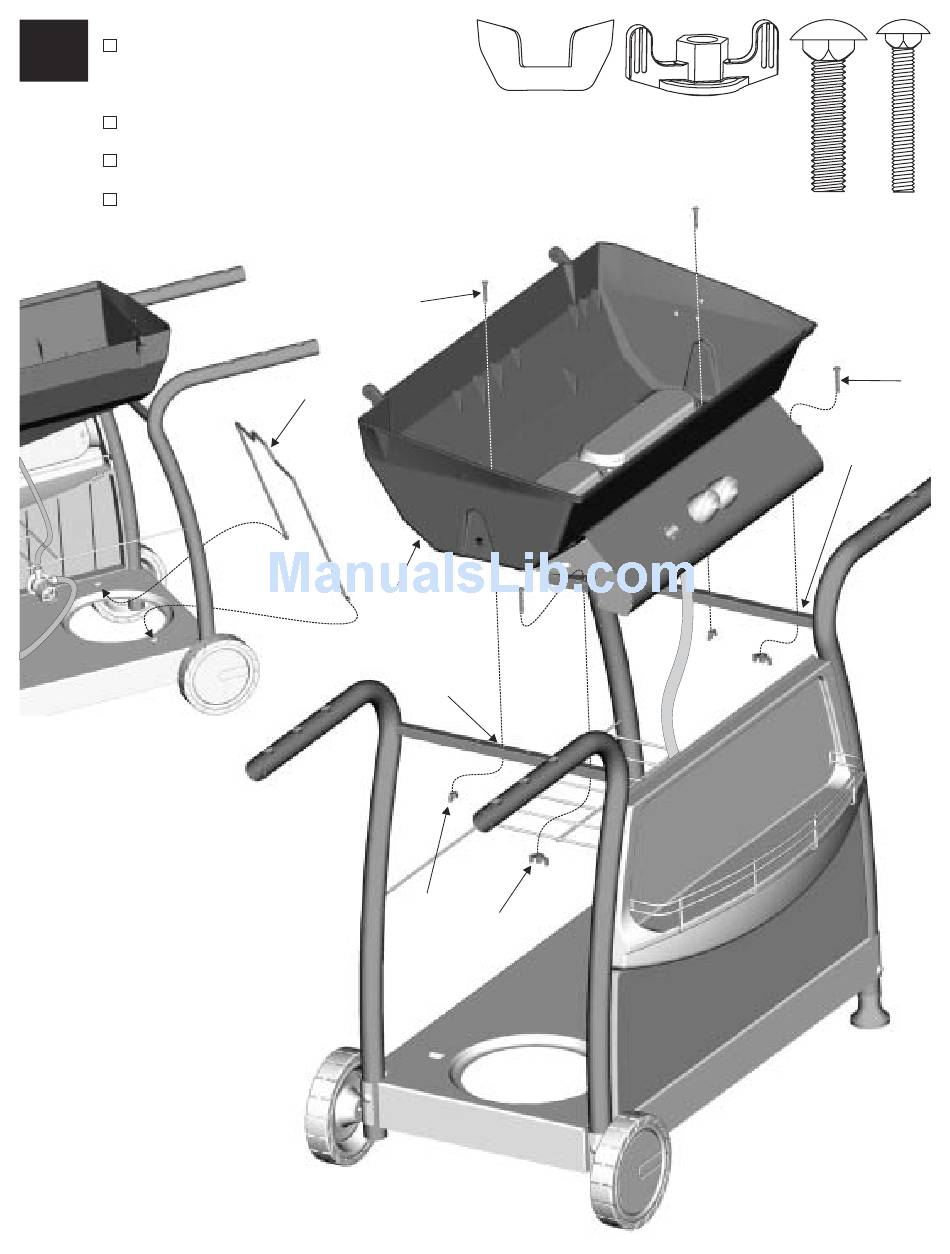

Carefully place grill bottom/control panel assembly
onto cart, so as not to scratch paint on legs. Front
of control panel should overlap top lip of upper
front panel.
Insert carriage bolts through grill bottom and center
hole in support bar. Secure with metal wing nuts.
Insert carriage bolts through control panel and front
holes in support bar. Secure with plastic wing nuts.
Insert ends of tank wire into slots on each side of
tank hole in base. Lean tank wire toward midshelf.
NOTE: Rear view
of cart. Wheels are
to right side.
10 • 463834703
27

Tank Wire

Grill Bottom/
Control Panel

Assembly

Support Bar
Center Hole
28
28
Qty. 2
5
5
Qty. 2
27
Qty. 2
Support Bar
Front Hole
NOTE: Front view
of cart. Wheels are
to left side.
29
Qty. 2
29
