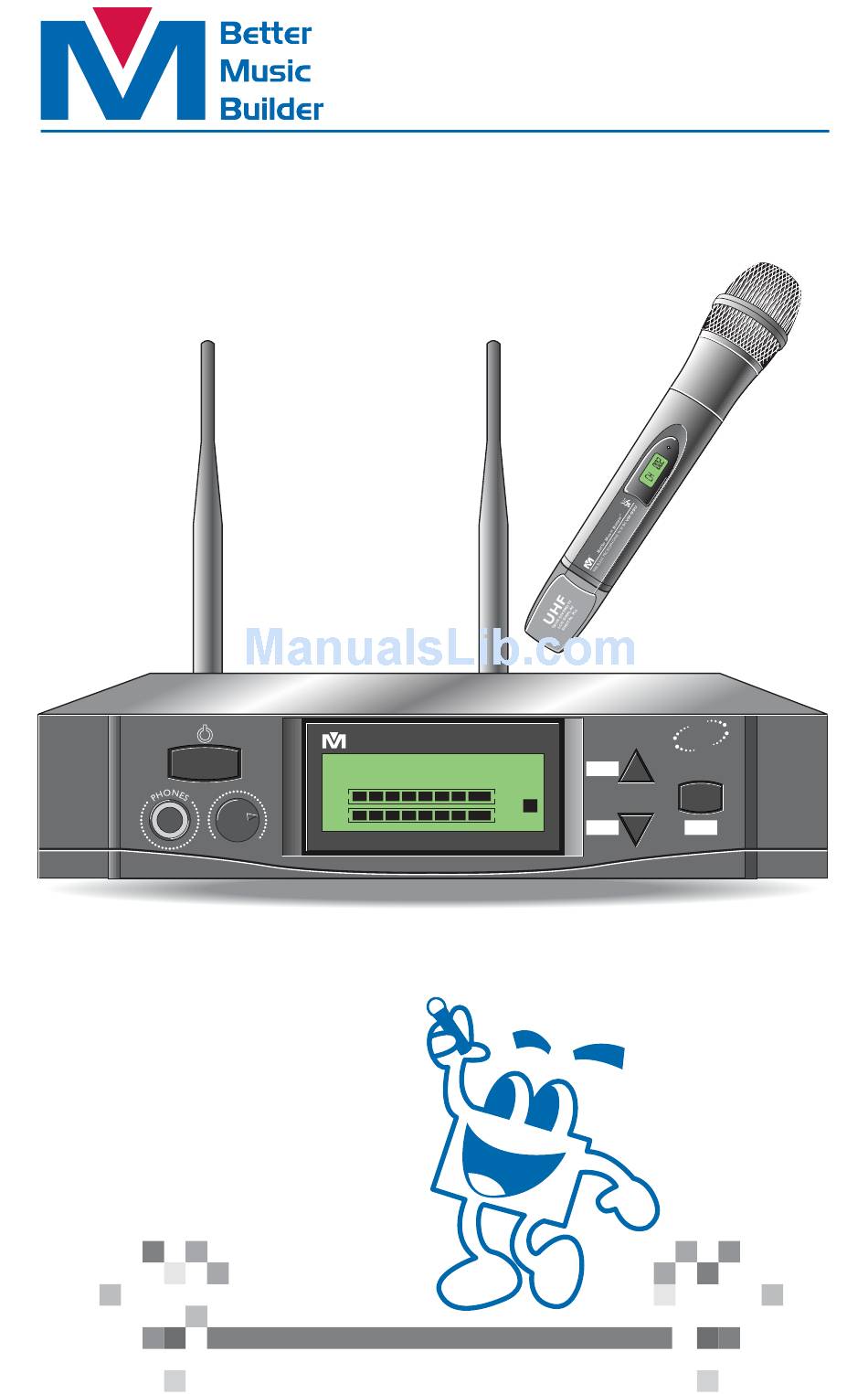

Professional UHF Wireless Microphone System
VM-99U
Operating Instructions
POWER
Thank you for purchasing this
unit. To make full and effective
use of this unit, please read this
Owner's Manual carefully
before operating it. After
reading this manual, retain this
booklet together with the
Warranty Card for future use
in case of maintenance or
troubleshooting.
TM
®
TM
Better Music Builder
0.01
B.CH B
RF
5 10 15 20 25 30 35
AF
-30 -25 -20 -15 -10 -5 0 PEAK
PROFESSIONAL WIRELESS MICROPHONE RECEIVER
MIN
MAX
Passionate about Music
www.BetterMusicBuilder.com
VM-99U
®
750 . 000
M
H
Z
40
II
UHF
TRUE DIVERSITY
LCD DISPLAY
UP
DIGITAL PLL
DOWN
SET
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Better Music Builder VM-99U
Summary of Contents for Better Music Builder VM-99U
-
Page 1: Operating Instructions
® Professional UHF Wireless Microphone System VM-99U Operating Instructions VM-99U Better Music Builder ® TRUE DIVERSITY POWER 0.01 750 . 000 LCD DISPLAY DIGITAL PLL B.CH B 5 10 15 20 25 30 35 -30 -25 -20 -15 -10 -5 0 PEAK... -
Page 2: Table Of Contents
HOW TO CHANGE YOUR TRANSMITTER’S BATTERIES......12 TIE-CLIP TRANSMITTER SPECIFICATION........... 13~17 SYSTEM TECHNICAL SPECIFICATION............ 18 CAUTION.................... 19 VM-99U FCC FREQUENCY 750 MHz and 800 MHz....... 20 FREQUENCY SCAN GROUPS FOR BAND C & BAND D......21 US UHF WIRELESS OPERATING FREQUENCIES........ 22~23 FOREWORD Thank you for purchasing our company’s product VM-99U. -
Page 3: Receiver Specification
OUTPUT VOLUME Frequency: A Frequency: B Better Music Builder ® DC13~15V MODEL NO. VM-99U TRUE DIVERSITY 600mA CALIFORNIA, UNITED STATES OF AMERICA Comments? E-mail: info@bettermusicbuilder.com www.BetterMusicBuilder.com ENGINEERED AND DESIGN IN U.S.A. 3 6 1 2 0 0 6 0 9 0 8 - 2 2... - Page 4 C. LCD PANEL OPERATION: After turn on the power, LCD is light up as screen: 0 0 0 0 0 0.01 5 10 15 20 25 30 35 -30 -25 -20 -15 -10 -5 0 PEAK MUTE 1. RF (radio frequency) Indicator 2.
- Page 5 E. THE RECEIVER SENSITIVITY ADJUSTING MENU: Keep pressing the set button until LCD screen displays “SQELCH” as shown below: 5 q E L C H 5 10 15 20 25 30 35 5 10 15 20 25 30 35 -30 -25 -20 -15 -10 -5 0 PEAK -30 -25 -20 -15 -10 -5 0 PEAK After 2-3 seconds, the screen will display “XX* dB”...
-
Page 6: Handheld Transmitter Specification
HANDHELD TRANSMITTER (Wireless Mic.) SPECIFICATION NAMES & FUNCTION: Uncover Looking of the Handheld Transmitter: LR6.AA LR6.AA Battery Slot VM-99U CH 002 CH 002 TRUE DIVERSITY WIRELESS SYSTEM ENGINEERING IN USA LCD DISPLAY DIGITAL PLL CH 002 1. Power switch: To turn on press and hold the power button located on the bottom cap of the transmitter for 2-3 seconds, until the LCD screen’s light is on. -
Page 7: How To Set Up Your Handheld Transmitter
HOW TO SET UP YOUR HANDHELD TRANSMITTER (Wireless Mic.) Firstly, push the release button on the bottom cap. Green Blue Yellow Silver Orange Black (*Optional: You can switch the caps with 6 different colors; green, blue, yellow, silver, orange and black. Sold separately) If you or anyone do any damage, either accidental or incidental, on NOTE the transmitter [microphone] head’s grille, we have the right to void your... - Page 8 Third, Pull open handle to reveal the transmitter’s LCD monitor. VM-99U CH 002 CH 002 WIRELESS SYSTEM ENGINEERING IN USA When pulling out handle make sure that you pull it straight out then NOTE when you hit a click wedge the handle a little bit and it will loosen, then pull it straight out.
- Page 9 Setting Up your Handheld Transmitter (Wireless Mic.) CH 002 To change frequency/channel press set until LCD screen displays CH 001* (channel display values) or 750.000* (frequency display values) (*varies depends on current settings). Press the up or down buttons to select a different channel/frequency (channel ranges from 1-9 &...
-
Page 10: How To Monitor Your Vocal
HOW TO MONITOR YOUR VOCAL (*Optional: You can insert a Stereo Headphone in the headphone jack on the front panel of your receiver to monitor your vocal via Headphone.) VM-99U Better Music Builder ® TRUE DIVERSITY POWER 0.01 750.000 LCD DISPLAY DIGITAL PLL B.CH B... - Page 11 You can adjust your receiver’s frequency by pressing the “DOWN” button to select your frequency. VM-99U Better Music Builder ® TRUE DIVERSITY POWER 0 .01 750 .000 LCD DISPLAY DIGITAL PLL B.CH B 5 10 15 20 25 30 35...
-
Page 12: How To Change Your Transmitter's Batteries
HOW TO CHANGE YOUR TRANSMITTER’S BATTERIES 1. Press and hold the power button on the bottom of the cap for 3-5 seconds until your transmitter is off. 2. Press the release button on the cap and pull out (*Optional: You can replace your cap with different colors to recognize your transmitter easily) 3. -
Page 13: Tie-Clip Transmitter Specification
TIE-CLIP TRANSMITTER SPECIFICATION NAMES & FUNCTION: Transmitter: Outside Picture 1. Antenna 2. Microphone Jack 3. LCD 4. Battery Cover 5. Tie-Clip UHF-SERIES 6. Microphone Extension Jack Inside Picture 1. Power Switch 2. Channel Selection UHF-SERIES 3. Setting 4. Battery Slot POWER GAIN 5. - Page 14 Operating Panel: Apical Panel 1. Antenna Jack 2. Power Indicator 3. Power Switch 4. Microphone Jack TIE-CLIP TRANSMITTER INSTALLATION SPECIFICATION: 1. Connect the microphone jack on the apical panel 2. Put 2 double A (AA) alkaline batteries in the battery box. LCD Panel Operation: 1.
- Page 15 2. Button Name & Function: 1. Button “SET”, menu selection and confirmation button, by pressing the set ▲ button you can choose the function menu for adjusting. After using button “ ” ▼ or “ ” to change the function status, please press “SET” to confirm. ▲...
- Page 16 FREQUENCY DISPLAY SELECTION: Press “SET” until, LCD screen displays as below: After 2~3 seconds, it will display as below screen: (The above screen displays according to the present setting) ▲ ▼ Press “ ” to select “FYE 9u” for frequency display, or “ ”...
- Page 17 SYSTEM LOCKING MENU: Keep pressing “SET” until, LCD display the below screen: After 2~3 seconds, it will display the screen below: (The screen above displays according to your present status) This menu’s function is for locking the transmitter’s working status (Channel, Displaying, Selecting, Power ON/OFF etc.).
-
Page 18: System Technical Specification
TECHNICAL SPECIFICATION A. OVERALL SYSTEM 1. OSD Model: PLL LOCK 2. Operating Frequency: 520~820 MHz (Tunable) 3. Modulation Model: FM 4. Maximum Deviation: ± 45 KHz 5. Frequency Response: 80Hz~15KHz(± 3dB) ≤ 6. Image Rejection: 7. Operating Temperature: -10 °C~+55°C 8. -
Page 19: Caution
Please also note that our warranty does not cover any shipping cost for the return of defective products to us for inspection, repair and maintenance. Our warranty for Better Music Builder products can only be executed in North America. Our warranty does not cover the battery for wireless microphone products. -
Page 20: Vm-99U Fcc Frequency 750 Mhz And 800 Mhz
VM-99U FCC FREQUENCY 750 MHz and 800 MHz VM-99U FCC Frequency 750 MHz Receiver Frequency Transmiter Frequency TV Ch. 750.025 752.800 753.625 754.525 755.456 756.150 758.130 758.850 760.050 760.650 760.650 761.650 762.150 763.850 764.350 764.875 VM-99U FCC Frequency 800 MHz... -
Page 21: Frequency Scan Groups For Band C & Band D
FREQUENCY SCAN GROUPS FOR BAND C & BAND D Band C Band C Scan Group 1 Band C Scan Group 2 Band C Scan Group 3 TV Ch. Frequency – MHz * TV Ch. Frequency – MHz * TV Ch. Frequency – MHz * (None) 541.500 541.500... -
Page 22: Us Uhf Wireless Operating Frequencies
US UHF WIRELESS OPERATING FREQUENCIES Band C: 541.500 - 566.375 MHz TV Ch. 541.500 541.625 541.750 541.875 542.000 542.125 542.250 542.375 542.500 542.625 542.750 542.875 543.000 543.125 543.250 543.375 543.500 543.625 543.750 543.875 544.000 544.125 544.250 544.375 544.500 544.625 544.750 544.875 545.000 545.125 545.250 545.375 545.500 545.625 545.750 545.875 546.000 546.125 546.250 546.375 546.500 546.625 546.750 546.875 547.000 547.125 547.250 547.375 547.500 547.625 547.750 547.875... - Page 23 Band D: 655.500 - 680.375 MHz TV Ch. 655.500 655.625 655.750 655.875 656.000 656.125 656.250 656.375 656.500 656.625 656.750 656.875 657.000 657.125 657.250 657.375 657.500 657.625 657.750 657.875 658.000 658.125 658.250 658.375 658.500 658.625 658.750 658.875 659.000 659.125 659.250 659.375 659.500 659.625 659.750 659.875 660.000 660.125 660.250 660.375 660.500 660.625 660.750 660.875 661.000 661.125 661.250 661.375 661.500 661.625 661.750 661.875 662.000 662.125 662.250 662.375 662.500 662.625 662.750 662.875...
- Page 24 ® Passionate about Music www.BetterMusicBuilder.com Printed on 100% Recycled Paper ©2007 Better Music Builder (USA) Comments E-mail to nfo@bettermusicbuilder.com All Rights Reserved in USA.
