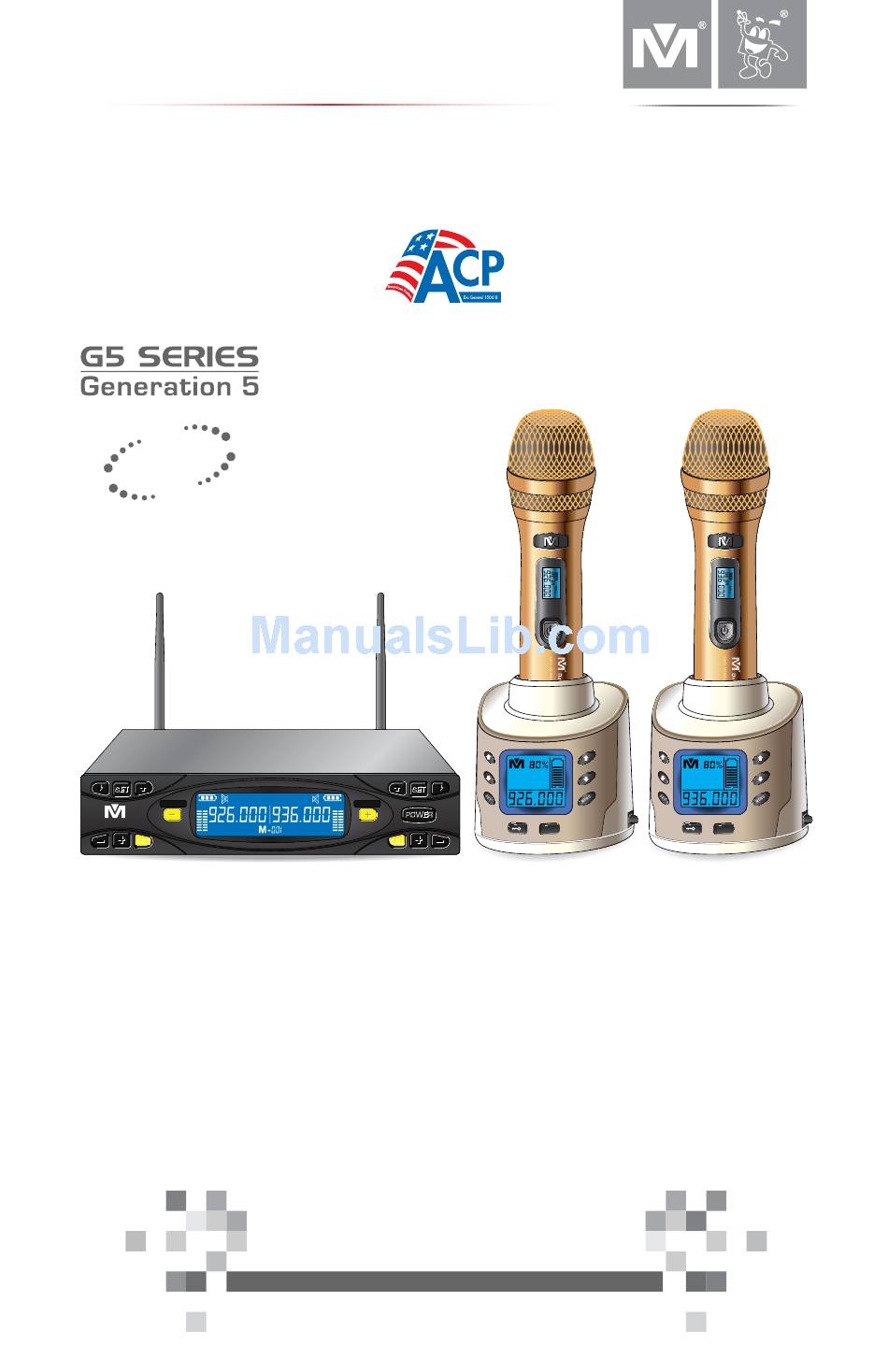

Better Music Builder .com
Professional UHF Wireless Microphone System
VM-93C G5
Operating Instructions
UHF
Frequency Selectable
SET
VOL
MODULE
VM-93C G5
MHZ
SQL
RF AF
SQL
SQL
2-in-1 Base Module *** 1 Receive Module with 2 Wireless Microphones System
SET
M
VOL
MODULE
POWER
SQL
MHZ
AF RF
SQL
Thank you for purchasing this unit. To
make full and effective use of this unit,
please read this Owner's Manual
carefully before operating it. Please
retain this manual for future reference.
P assi o n at e ab ou t Mu sic
w w w . B e t t e r M u s i c B u i l d e r . c o m
®
Passionate about Music
BATTERY LIFE
MHz
CHR
Rechargeable with Lithium-ion Battery
It's what we do!
BATTERY LIFE
MHz
CHR
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Better Music Builder VM-93C G5
Summary of Contents for Better Music Builder VM-93C G5
-
Page 1: Operating Instructions
Better Music Builder .com ® Passionate about Music It’s what we do! Professional UHF Wireless Microphone System VM-93C G5 Operating Instructions Frequency Selectable BATTERY LIFE BATTERY LIFE MODULE MODULE POWER VM-93C G5 RF AF AF RF Rechargeable with Lithium-ion Battery 2-in-1 Base Module *** 1 Receive Module with 2 Wireless Microphones System Thank you for purchasing this unit. -
Page 2: Table Of Contents
CONTENTS INTRODUCTION................1 Intro SYSTEM FEATURES................1 Features PACKAGE ACCESSORIES..............2 Package 2-in-1 BASE MODULE..............3~4 • Controls and Functions..............3~4 Base Module HARDWARE SETUP................ 5~7 Set Up HANDHELD MICROPHONE............8~9 • Controls and Functions..............8~10 Handheld OPERATION................11~19 • Selecting Receiver Frequency............ -
Page 3: Introduction
INTRODUCTION Intro The Better Music Builder VM-93C G5 is a Fifth Generation UHF Dual-Channel Microphone System that uses the latest technologies and engineering. Its heavy duty design features two handheld microphones with one 2-in- 1 Base Module, Intelligent Energy Control, and innovative Charger Bases. -
Page 4: Package Accessories
RF AF AF RF RECEIVER ANTENNA: 2 UNITS 7 in 17.5 cm HANDHELD MICROPHONE: 2 UNITS UHF WIRELESS SYSTEM VM-93C G5 UHF WIRELESS SYSTEM VM-93C G5 HANDHELD MICROPHONE CHARGER BASE: 2 UNITS BATTERY LIFE BATTERY LIFE DC POWER ADAPTER: 3 UNITS... -
Page 5: 2-In-1 Base Module
2-in-1 BASE MODULE [RECEIVER] Base Module CONTROLS AND FUNCTIONS MODULE MODULE POWER VM-93C G5 RF AF AF RF The “DOWN” button would be in no use when lock mode is on ("LOCK" will appear NOTE on the LCD). FRONT PANEL: 1. - Page 6 RISK OF ELECTRIC SHOCK 397170516300 DO NOT OPEN Model No.: VM-93C G5 CALIFORNIA, UNITED STATES OF AMERICA MIC 1 & 2 w w w. B e t t e r M u s i c B u i l d e r. c o m...
-
Page 7: Hardware Setup
RISK OF ELECTRIC SHOCK 397170516300 DO NOT OPEN Model No.: VM-93C G5 CALIFORNIA, UNITED STATES OF AMERICA MIC 1 & 2 w w w . B e t t e r M u s i c B u i l d e r. c o m... -
Page 8: In-1 Base Module
UHF WIRELESS SYSTEM DIAGRAM: UHF WIRELESS SYSTEM VM-93C G5 UHF WIRELESS SYSTEM VM-93C G5 MIC 1 HANDHELD MICROPHONE MIC 2 HANDHELD MICROPHONE DC-POWER TRUE ANTENNA-B DC 8V ANTENNA-A DIVERSITY 1.7A Better Music Builder RISK OF ELECTRIC SHOCK 397170516300 DO NOT OPEN Model No.: VM-93C G5... - Page 9 To put the system onto one of the mount kits, please follow the diagram below. Single Receiver Rack Mount Kit ANTENNA IS ADJUSTABLE 10 inches MODULE MODULE POWER VM-93C G5 RF AF AF RF 5.4 inches 8.3 inches 5.4 inches 19 inches Rack mount kit is not included in package.
-
Page 10: Handheld Microphone
HANDHELD MICROPHONE Handheld CONTROLS AND FUNCTIONS UHF WIRELESS SYSTEM VM-93C G5 1. INTERCHANGEABLE MICROPHONE HEAD 2. LCD DISPLAY: Displays frequency and battery status. 3. POWER BUTTON 4. LITHIUM-ION BATTERY: Battery Capacity 1600mAh. 5. CHARGER CONNECTION LCD PANEL: After turning on the power, the LCD screen will display the following: 6. - Page 11 HIGH TECH INTELLIGENT ENERGY CONTROL (IEC) FEATURES This function’s primary focus is energy saving. To do so, the microphones are equipped with six-axis gyroscope sensor. FEATURES: 1. Energy Saving AUTO-MUTE MODE: The six-axis gyroscope senses speed in three directions as well as any angular changes in velocity.
- Page 12 CHARGER BASE: FRONT VIEW REAR VIEW BATTERY LIFE 1. MICROPHONE DOCK 2. SET BUTTON: Confirms selection. 3. UP/DOWN BUTTONS: Adjusts selection. 4. LOCK: Locks all operations except charging function. 5. CHARGE BUTTON 6. LCD DISPLAY: Displays frequency, battery and charging status. 7.
-
Page 13: Operation
OPERATION Operation LOCK/UNLOCK RECEIVER SETTING Press and hold “UP ▲” on the receiver to lock/unlock the setting. MODULE MODULE POWER POWER AF RF AF RF SELECTING RECEIVER FREQUENCY STEP 1: Press and hold “SET” until “SET FRQ” displays. MODULE MODULE POWER POWER AF RF... -
Page 14: Scanning Receiver Frequency
MODULE MODULE adjusting the frequency on one microphone. POWER VM-93C G5 RF AF AF RF Each unit is fully tested and qualified by the manufacturer. However, due to the nature of wireless connection, interference may occur... -
Page 15: Selecting Frequencies With Module Groups
The receiver has 10 preset frequency module groups. Press the yellow “+” or “–” button to select module groups. MODULE MODULE POWER VM-93C G5 RF AF AF RF The “UP/SET/DOWN” buttons would be in no use when lock mode is on ("LOCK" will NOTE appear on the LCD). -
Page 16: Charger Base Menu Diagram
CHARGER BASE MENU DIAGRAM FRQ: Frequency SEN: Sensitivity IEC: Intelligent Energy Control : Button : LCD Screen BATTERY LIFE Before entering “MENU”, make sure it is not NOTE charging. Press “CHR” button to cancel charging. MENU SET FRQ SET SEN SET IEC 926.000 936.000... -
Page 17: Selecting Frequency With Charger Base
SELECTING FREQUENCY WITH CHARGER BASE Before entering “MENU”, make sure it is not charging. Press “CHR” button to cancel charging. STEP 1: Place microphone in the charges base. Then turn on the microphone and charger base. STEP 2: Press and hold “MENU” until “SET FRQ” displays. Then press “SET” until frequency displays and “MHz”... -
Page 18: Adjusting Sensitivity With Charger Base
ADJUSTING SENSITIVITY WITH CHARGER BASE Before entering “MENU”, make sure it is not charging. Press “CHR” button to cancel charging. STEP 1: Place microphone in the charges base. Then turn on the microphone and charger base. STEP 2: Press and hold “MENU” until “SET FRQ” displays. Then press “UP ▲” until “SET SEN”... -
Page 19: Selecting Intelligent Energy Control
SELECTING INTELLIGENT ENERGY CONTROL WITH CHARGER BASE Before entering “MENU”, make sure it is not charging. Press “CHR” button to cancel charging. STEP 1: Place microphone in the charges base. Then turn on the microphone and charger base. STEP 2: Press and hold “MENU” until “SET FRQ” displays. Then press “DOWN ▼”... -
Page 20: Start/Cancel Charging Microphone
CHARGING MICROPHONE STEP 1: Make sure microphone is off. Then place microphone in the charger base. STEP 2: Turn on the charger base. POWER OFF STEP 3: Press “ ” button “SCAN” will display and then “CHARGING” will start blinking until it is fully charged. Turn off charger base or cancel charging NOTE before removing microphone to avoid damage to... -
Page 21: Lock/Unlock Charger Base Setting
LOCK/UNLOCK CHARGER SETTING Press and hold “ ” button on the charger base to lock/unlock the setting. UNLOCK BATTERY LIFE BATTERY LIFE LOCK BATTERY LIFE TURNING ON/OFF MICROPHONE Press the POWER BUTTON to turn ON/OFF the microphone. The LCD blue lights up when the microphone is ON. -
Page 22: Technical Specifications
TECHNICAL SPECIFICATIONS Specs A. TECHNICAL FEATURE OF THE SYSTEM: • Channel: 100 Channels • Frequency Range: UHF 926~936 MHz • Frequency Response: 50Hz~18kHz • Range: ≈50m • Frequency Spacing: 100kHz • Bandwidth: 10MHz • Lithium-ion Battery Capacity: 1600mAh • Frequency Oscillation Mode: PLL module locked loop design B. -
Page 23: Body-Pack Microphone (Optional)
BODY-PACK MICROPHONE SYSTEM (Optional) Body-Pack CONTROLS & FUNCTIONS: Body-Pack Microphone System (including Lavalier Mic. and Headset Mic.) SIDE VIEW FRONT VIEW 1. Antenna 2. 4-pin Microphone Input Jack 3. LCD Display 4. IR Port: Receives infrared beam to synchronize frequencies. IR when using multiple systems, only one microphone port should be exposed at a time... - Page 24 REPLACING BODY-PACK BATTERIES STEP 1: Open battery cover. Good STEP 2: Insert 2 AA batteries. 2 ALKALINE BATTERY alkaline batteries are expected to ALKALINE BATTERY last 8 hours. CLOSE Make sure to insert batteries correctly according to diagram. ALKALINE BATTERY When the microphone body-pack light glows red, the batteries should OPEN...
-
Page 25: Troubleshooting
TROUBLESHOOTING Troubleshooting CAUTION: Before troubleshooting any symptoms make sure all devices are powered off. 1. SYMPTOM: NO SOUND COMING FROM MICROPHONE A. CAUSE: There is no signal. REMEDY: • Check if batteries are inserted correctly. • If batteries are inserted correctly but still no power, insert new batteries. •... - Page 26 4. SYMPTOM: THE MICROPHONE SUDDENLY HAS NO SOUND BUT THE RECEIVER SHOWS RF SIGNAL. CAUSE: The microphone wire is damaged or disconnected. REMEDY: Open the microphone head cover to check the wire and reconnect the wire. If it does not work, replace the microphone head. 5.
-
Page 27: Appendix
APPENDIX Appendix VM-93C G5 FCC FREQUENCY: 926.000~936.000 MHz UHF Frequencies Available for Use for Home Electronics in North America The radio frequencies used in the transmission of wireless information are closely regulated in most countries including North America. A lot of countries... - Page 28 MIC 1 & MIC 2 FREQUENCY: 926.000~936.000 MHz FREQUENCY FREQUENCY FREQUENCY FREQUENCY 928.600 931.100 933.600 926.000 928.700 931.200 933.700 926.100 928.800 931.300 933.800 926.200 928.900 931.400 933.900 926.300 929.000 931.500 934.000 926.400 929.100 931.600 934.100 926.500 929.200 931.700 934.200 926.600 929.300 931.800 934.300...
-
Page 29: Warranty
Please also note that our warranty does not cover any shipping cost for the return of defective products to us for inspection, repair and maintenance. Our warranty for Better Music Builder products can only be executed in North America. Our warranty does not cover the battery for wireless microphone products. -
Page 30: Contact Information
CONTACT INFORMATION Contact Us MAILING ADDRESS BETTER MUSIC BUILDER 29300 Kohoutek Way #150 Union City, CA 94587 U.S.A. TELEPHONE NUMBERS USA Region USA Toll Free: 1-800-318-2218 Sales & Marketing: 510-477-9955 Customer Service: 510-477-9955 FAX NUMBERS USA Region Sales & Marketing: 510-477-9922... - Page 31 MAINTENANCE NOTE...
- Page 32 . B e t t e r M u s i c B u i l d e r . c o m 397170516300 Code: 20170419 Printed on 100% Recycled Paper Comments E-mail to sales@bettermusicbuilder.com Copyright © 2017 Better Music Builder. All rights reserved. Legal trademark.
