Bluetooth ® SWC
Owner's manual

Advertisement

Table of Contents
loading

Related Manuals for Toyota Bluetooth SWC

Summary of Contents for Toyota Bluetooth SWC

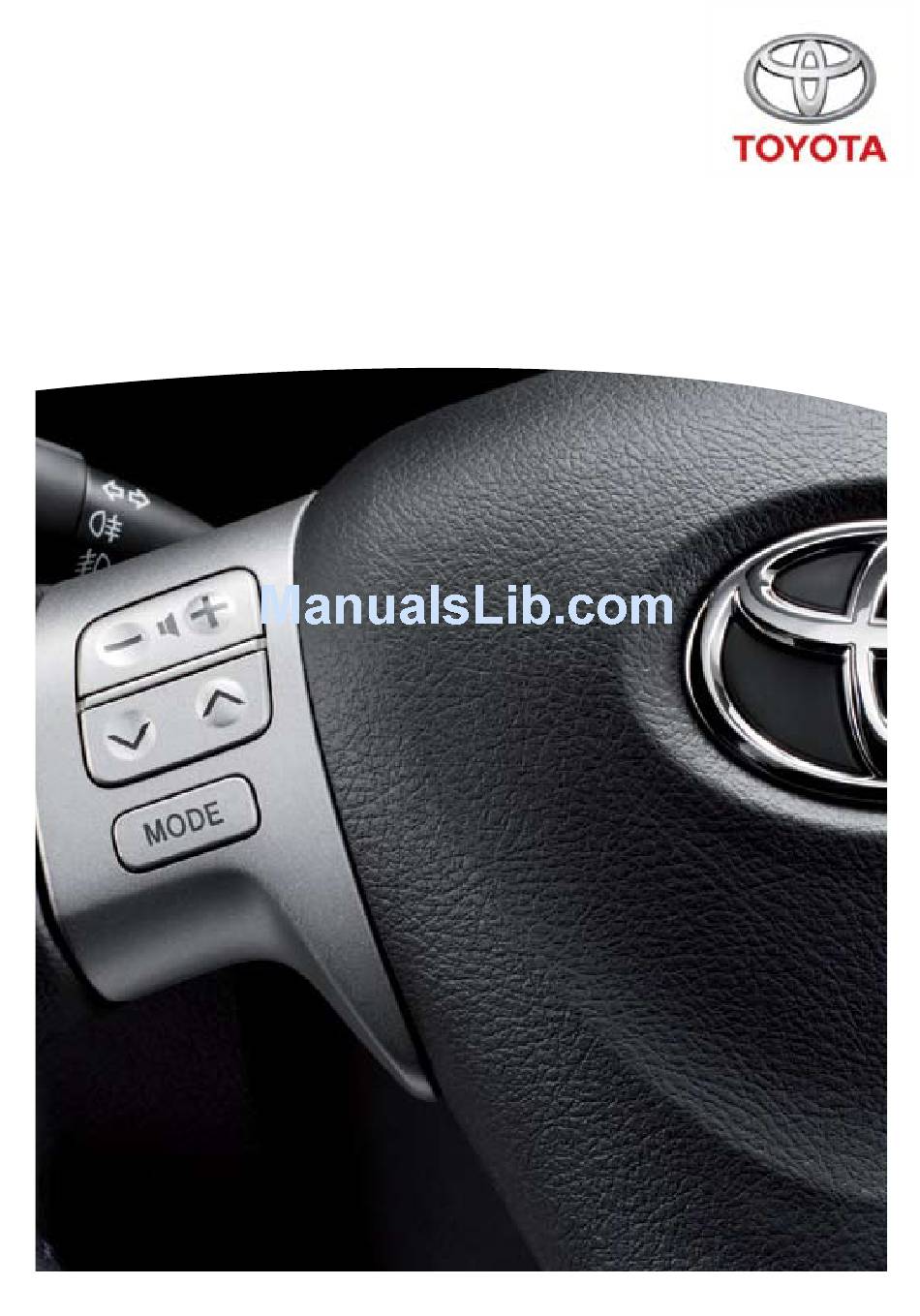

  • Page 1 Bluetooth ® SWC Owner’s manual...
  • Page 2 OPERATING INSTRUCTIONS ..............Page Read this manual thoroughly before using the Bluetooth SWC. ® Always keep this owner’s manual in the vehicle. Bluetooth ®...
  • Page 3 Bluetooth ®...

  • Page 4: Table Of Contents

    Table of contents 1. Welcome .......................... 2. Safety and general information ..................2.1. Safety symbols ......................2.2. Caution ........................3. Smart practices while driving .................. 10 4. Using your Bluetooth hands-free system .............. 11 ® 4.1. Steering wheel control (SWC) .................. 4.2. Selecting your language ..................4.. Pairing your handset device to the hands-free system ..........4.4.
  • Page 5 Bluetooth ®...
  • Page 6 “Troubleshooting”. Toyota recommends that only parts and accessories that have been tested and approved by Toyota in terms of safety, function and suitability should be used.
  • Page 7 Bluetooth ®...

  • Page 8: Welcome

    1. Welcome Welcome to Toyota’s “connected” world of Bluetooth personal area wireless networking. ® Toyota’s Premium Speech-Operated hands-free system with Bluetooth Wireless Technology makes ® wireless connection simple and quick. The Toyota Bluetooth hands-free system offers: ® • seamless, wireless hands-free audio through Bluetooth connection ®...

  • Page 9: Safety And General Information

    2. Safety and general information 2.1. Safety symbols Warning: When this symbol appears in front of a text you must follow these recommendations to avoid irreparable damage to your car, system or connected devices or to avoid accidents with injuries or death as a result. Caution: When this symbol appears in front of a text you must be very careful and follow the recommendations to avoid damage to your car, system or connected devices or to avoid injuries.

  • Page 10: Declaration Of Conformity

    Medical devices Hearing Aids Some devices may interfere with some hearing aids. In the event of such interference, you may want to consult your hearing aid manufacturer to discuss alternatives. Other medical devices If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from RF energy.

  • Page 11: Smart Practices While Driving

    • When possible, use your hands-free device. If possible, add an additional layer of convenience to your mobile device with one of the many Toyota original hands-free accessories available today. •...

  • Page 12: 4. Using Your Bluetooth ® Hands-Free System

    4. Using your Bluetooth hands-free system ® 4.1. Steering wheel control (SWC) The SWC enables you to set up and use the Bluetooth hands-free system. It has five buttons ® whose functions will vary depending on how they are pressed, and which mode the radio and the hands-free system is in.

  • Page 13: Selecting Your Language

    4.2. Selecting your language Before you can use the hands-free system’s voice recognition functions, you must select your language. Turn off the vehicle ignition. Press and hold the MODE and ARROW DOWN buttons, turn on the vehicle ignition, and continue holding the MODE and ARROW DOWN buttons for at least 15 seconds. The hands-free system enters language selection and responds: Language Menu.

  • Page 14: Automatic Connection

    Searching may take a minute or two to complete. Select Toyota from the list of devices. If prompted by the handset device, enter the passkey 0000, and press the OK key.

  • Page 15: Using The Voice Recognition (Vr) Features

    4.5. Using the voice recognition (VR) features A press and hold of the MODE button will activate a voice recognition session. When you begin a VR session, you hear a prompt and then a short beep. The beep - also known as a listening prompt - indicates that the hands-free system is waiting for a verbal command from you.
  • Page 16 Adding contact list entries You can store a list of names and phone numbers in the hands-free system’s contact list. The contact list can support up to 50 entries. The contact list is only available when a handset device is connected to the hands-free system. You can enter up to 50 digits for each contact list entry.

  • Page 17: Using The Phone Features

    Deleting a contact list entry Press and hold the MODE button. The hands-free system responds: Phone menu. {Say a command}. When prompted, say “CONTACT LIST”. If the hands-free system responds: Contact list. {Say a command}. Say “DELETE <NAME>” (where <name> is the name of a contact list entry). When the hands-free system responds: Are you sure you want to delete the contact <name>? say “YES”.
  • Page 18 Placing a call You can place a hands-free call using the hands-free system’s phone menu in the following ways: • using the system’s contact list • digit dial using voice recognition • using the handset device’s voice commands • using redial •...
  • Page 19 Calling with digit segments Press and hold the MODE button. The hands-free system responds: Phone menu. {Say a command}. When prompted, say “DIAL NUMBER”. The hands-free system responds: Number please? Dictate the first segment of digits. (For example, say the first 3 numbers.) The hands-free system recites the digits heard.

  • Page 20: Using The Call Menu Features

    Placing a call using memory dial Speak memory dial numbers as continuous digits. For example, dictate memory dial location 22 as “2-2”, not “twenty-two.” Press and hold the MODE button. The hands-free system responds: Phone menu. {Say a command}. When prompted, say “MEMORY DIAL”. The hands-free system responds: Memory dial number please.
  • Page 21 Unmuting the call Press and hold the MODE button. The hands-free system responds: Call menu. {Say a command}. When prompted, say “UNMUTE”. The hands-free system responds: Call unmuted. Or use the SWC: A press and hold of either VOLUME button while the call is muted will unmute the microphone.
  • Page 22 Resuming the held call A press and release of the ARROW UP button while a call is held will resume the call. Accepting a waiting call When you are in a call, an audible beep signals an incoming call. Press and release the ARROW UP button to place the active call on hold and answer the waiting call.

  • Page 23: Managing The Contact List

    Splitting a 3-way conference Press and hold the MODE button. The hands-free system responds: Call menu. {Say a command}. When prompted, say “PRIVATE CONFERENCE”. The hands-free system responds: Leaving conference. The last call to be added to conference is placed on hold. Ending all calls Press and hold the MODE button.

  • Page 24: Using The Setup Menu

    Delete a contact when listing contact entries List the contacts. When the contact name is played for the contact you want to delete, say “DELETE CONTACT”. When the hands-free system responds: Are you sure you want to delete the contact <name>? say “YES”.
  • Page 25 Searching may take a minute or two to complete. Select Toyota from the list of devices. If prompted by the handset device, enter the passkey 0000, and press the OK key.
  • Page 26 Removing all paired handset devices Activate the SETUP menu. When prompted, say “REMOVE ALL DEVICES”. The hands-free system responds: Are you sure you want to remove all devices? Say “YES”. Upon successful removal, the hands-free system responds: All Devices Removed. Using the device list Alternatively the handset devices can be managed using the “LIST DEVICES”...

  • Page 27: Audio Indicators

    Call announce setting To turn the Caller ID Announce feature on or off. Activate the SETUP menu. When prompted, say “CALLER ANNOUNCE ON” or “CALLER ANNOUNCE OFF”. The hands-free system responds: Caller Announce On or Caller Announce Off. Expert mode setting Expert mode speeds up hands-free system operation for advanced users.

  • Page 28: If You Need Help

    5. If you need help If you have any additional questions, please contact your authorised retailer. 5.1. Warranty coverage Please refer to the warranty information provided at the time of purchase. 5.2. Troubleshooting Poor voice recognition performance • Always divert air flow from vent or defrost away from the microphone; airflow into microphone will severely impact audio and voice recognition performance.
  • Page 29 You cannot use phone voice commands • You may not have a “VOICE TAG” set up for the number you want to dial. Follow your device’s user manual to set up voice dialling. • Most handset devices will prompt with a beep to indicate it is now time to speak. Wait until the beep has ended before speaking.

  • Page 30: Voice Recognition Quick Reference

    5.. Voice recognition quick reference Phone menu Multi-function button Phone menu. {Say a command} ”Setup menu” Setup menu. {Say a command}… ”Dial Number” Number please? <number> <number> ”Dial/Yes” Calling ”Clear” Last String Cleared… ”Clear all” Number please? ”Help” Dial menu. You can say ”Clear”, ”Clear all”,…...
  • Page 31 Call menu Multi-function button Call menu. {Say a command} ”Hang up” Call Ended ”Privacy mode” Privacy mode ”Hands-free mode” Hands-free mode ”Mute” Call Muted ”Unmute” Call Unmuted ”Enter <digits>” <digits> ”Switch call” Switching active calls ”Conference” Starting conference ”Private conference” Leaving conference ”Hang up all calls”...
  • Page 32 Contact list menu Contact list. {Say a command} ”Add Contact” Say the name ”<name>” Say the number for <name> <number> <number> ”Yes/Add” Contact added. Would you like to add another contact? ”Clear” Last string Cleared… ”Clear all” Say the number for <name> ”Help”...

  • Page 33: Setup Menu

    Setup menu Multi-function button Setup menu. {Say a command} ”Pair Device” Set your device in scan mode and enter 0000 if prompted for the passcode Pairing complete. Please say a friendly name for the device ”<device name>” <device name> added ”Connect <device name>”...

  • Page 34: Appendix

    6. Appendix 6.1. Detailed SWC button functions State Button Action Idle Connected Call VR session Press and release Mode • Activate Setup • Activate • Activate call • End prompt, Press and menu phone menu menu play listen hold prompt •...

  • Page 35: Pronunciation Chart

    State Button Action Idle Connected Call VR session • Increase VR • Increase VR • Increase • Increase VR volume by volume by hands-free volume by Press and one level one level volume by one level release one level • In language Volume menu, select next language...
  • Page 36 PZ420-00293-EN Publication no. AOM 000 146-0 Printed in Belgium (August 2007)
