Chimney Connection - Jøtul C 550 CB Installation And Operating Instructions Manual

Jøtul C 550 CB Rockland 138940_Rev_D 4.24.11
Chimney Connection Requirements
U.S. Only Requirements:
1. The insert must be connected to a code-approved
masonry chimney with a direct (positive) flue con-
nector into the first chimney liner section.
2. The cross-sectional area of the chimney flue may
not be less than the cross-sectional area of the
flue collar..
3. A sealed block-off plate must be installed at the
damper area of the existing fireplace, unless the
liner is connected directly to the top of the chim-
ney. See fig. 8.
4. For internal chimneys, (no sides of the chimney
exposed to the outside below the roofline,) a posi-
tive connection into the first flue tile is acceptable
provided the tile is no larger than 8" x 12".
5. For external chimneys, (one or more sides are ex-
posed to the outside below the roof line, including
garages), a positive connection to the first flue tile
is acceptable provided the tile is no larger than 8"
x 8".
6. A 6", 7", or 8" stainless steel liner, extending the
full height of the chimney, is required for those
installations where the flue tile is greater than
8" x 12" for internal chimneys, or 8" x 8" for exter-
nal chimneys. In such cases, a damper block-off
plate is not required.
Apply sealant
around damper
opening
Damper
Frame

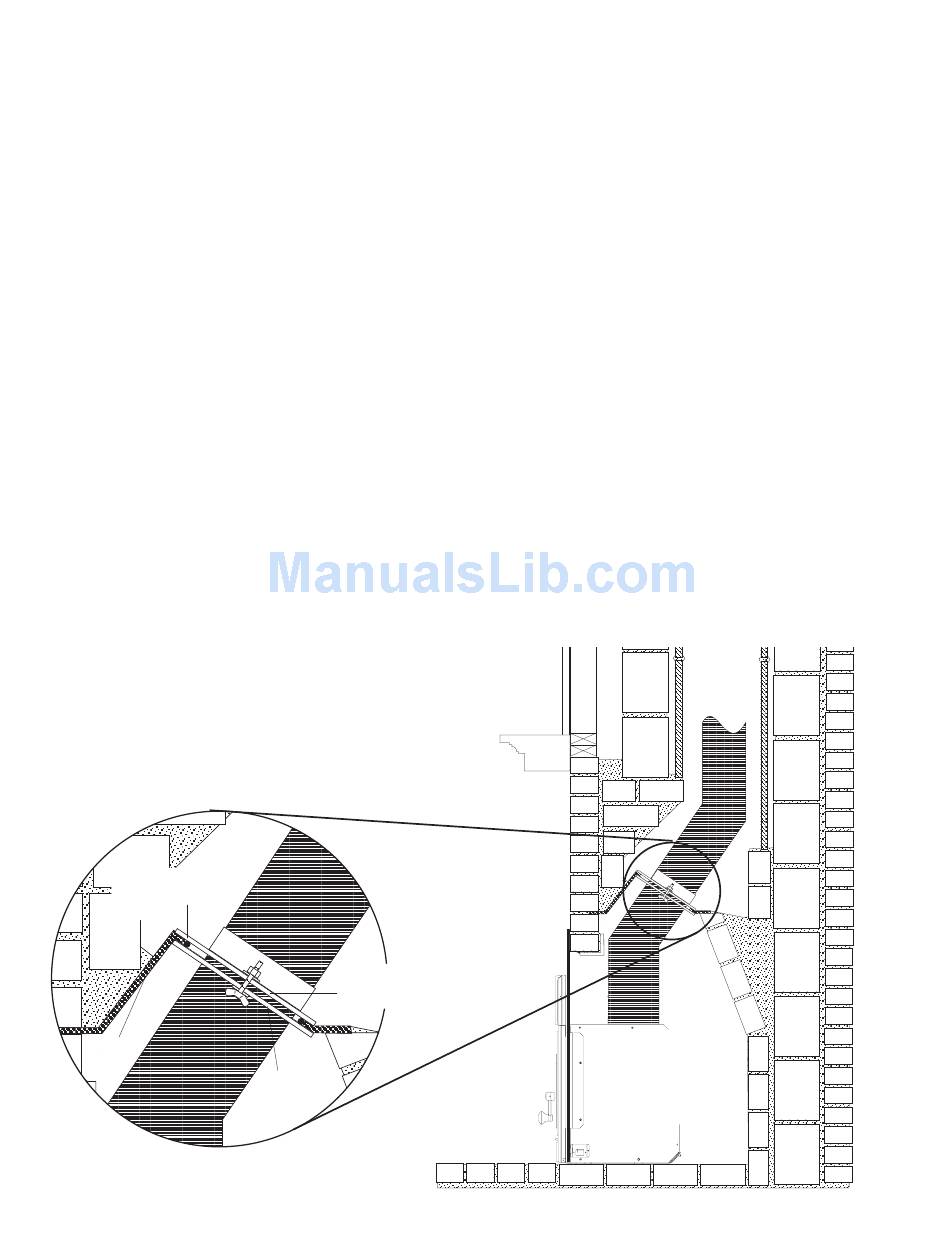

Figure 8. Positive Chimney Connection with an
example of a damper block-off plate - U.S. only.
10
Flex
Connector
Adjustable
Sealing Plate
Locking
Bracket
Canada Requirement:
The insert must be installed with a continuous chim-
ney liner of 6" (152 mm) diameter extending from
the fireplace insert to the top of the chimney. The
chimney liner must conform to the Class 3 require-
ments of CAN/ULC-S635, Standard for Lining Systems
for Existing Masonry or Factory-Built Chimneys and
Vents, or CAN/ULC-S640, Standard for Lining Sys-
tems for New Masonry Chimneys.
See fig. 9.
Do not use aluminum or galvanized steel pipe for
chimney connection components - these materials
are not suitable for use with solid fuel.
Attach Fireplace
Notice Plate
to Rear Wall of
Flex
Connec-
tor Pipe
extends at
least into
the first
flue tile
Conversion
Fireplace
