Signal Connections Cont.
2.5
You can use an HD-15 connector cable or a BNC adapter cable to connect the flat panel
monitor to the host computer. The HD-15 video cable (supplied in the kit) you use with this
monitor is equipped with a conventional HD-15 connector at each end.

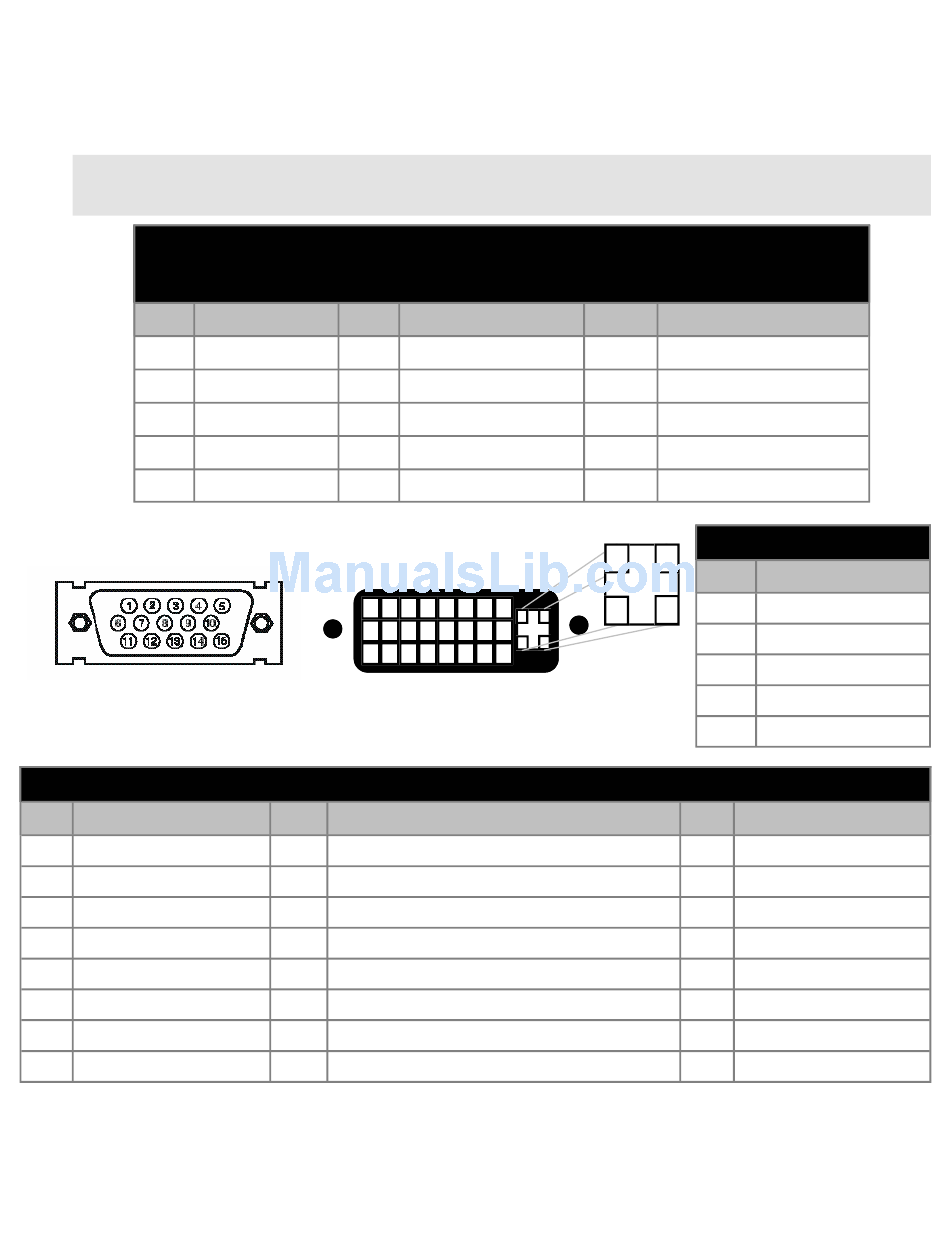

Note: The following figure is the view looking into the pin end of the male connector or solder
term end of the female connector.
HD15 Connector
The following table provides the pin numbers and corresponding pin assignments for
the HD-15 video connector.
Pin Signal
1 Red Video
2 Green Video
3 Blue Video
4 Not Used
5 Return
HD15 Connector
DVI-I
Pin Signal
1 T.M.D.S. Data2-
2 T.M.D.S. Data2+
3 T.M.D.S. Data2/4 Shield
4 T.M.D.S. Data4-
5 T.M.D.S. Data4+
6 DDC Clock
7 DDC Data
8 Analog Vertical Sync
VT190 DiamondVue User Guide
Pin
6
7
8
9
10
1
9
17
DVI-I Connector
(Digital / Analog)
Pin Signal
9 T.M.D.S. Data1-
10 T.M.D.S. Data1+
11 T.M.D.S. Data1/3 Shield
12 T.M.D.S. Data3-
13 T.M.D.S. Data3+
14 +5V Power
15 Ground (return for +5V, H. Sync and V. Sync)
16 Hot Plug Detect
Composite Video Input Connector: CVBS 1.0V p-p
S-Video: S-VHS
LUMA Signal Input 0.7V p-p
CHROMA Signal Input 0.7V p-p
Signal
Red Video Ground
Green Video Ground
Blue Video Ground
No Connection
Sync Ground
8
16
24
5
Pin Signal
11 Not Used
12 Bi-Directional Data
13 Horizontal Sync
14 Vertical Sync
15 Data Clock (SCL)
DVI-I
C2
C1
Pin Signal
C5
C1 Analog Red
C3 C4
C2 Analog Green
C3 Analog Blue
C4 Analog H. Sync
C5 Analog Ground
Pin Signal
17 T.M.D.S. Data0-
18 T.M.D.S. Data0+
19 T.M.D.S. Data0/5 Shield
20 T.M.D.S. Data5-
21 T.M.D.S. Data5+
22 T.M.D.S. Clock Shield
23 T.M.D.S. Clock+
24 T.M.D.S. Clock-
