Copyright
Copyright © 2012 MiTAC International Corporation. All rights reserved. No part of
this manual may be reproduced or translated without prior written consent from
MiTAC International Corporation.
Trademark
All registered and unregistered trademarks and company names contained in this
manual are property of their respective owners including, but not limited to the
following.
®
TYAN
is a trademark of MiTAC International Corporation.
®
Intel
is a trademark of Intel
AMI, AMI BIOS are trademarks of AMI Technologies.
®
Microsoft
, Windows
®
Winbond
is a trademark of Winbond Electronics Corporation.
Notice
Information contained in this document is furnished by MiTAC International
Corporation and has been reviewed for accuracy and reliability prior to printing.
MiTAC assumes no liability whatsoever, and disclaims any express or implied
warranty, relating to sale and/or use of TYAN
warranties relating to fitness for a particular purpose or merchantability. MiTAC
retains the right to make changes to product descriptions and/or specifications at
any time, without notice. In no event will MiTAC be held liable for any direct or
indirect, incidental or consequential damage, loss of use, loss of data or other
malady resulting from errors or inaccuracies of information contained in this
document.
S7055
Version 1.0
®
Corporation.
®
are trademarks of Microsoft Corporation.
http://www.tyan.com
®
products including liability or
1

Advertisement

Table of Contents
loading

Related Manuals for TYAN S7055

Summary of Contents for TYAN S7055

  • Page 1 Corporation and has been reviewed for accuracy and reliability prior to printing. MiTAC assumes no liability whatsoever, and disclaims any express or implied ® warranty, relating to sale and/or use of TYAN products including liability or warranties relating to fitness for a particular purpose or merchantability. MiTAC retains the right to make changes to product descriptions and/or specifications at any time, without notice.

  • Page 2: About This Guide

    This section aims to help readers identify the locations of some specific Fan and Temp Sensors on the motherboard. A table of BIOS Temp sensor name explanation is also included for readers’ reference. Appendix II: RAID OPROM Configuration This section describes how to setup the RAID system with the RAID OPROM Utility. http://www.tyan.com...

  • Page 3: Table Of Contents

    3.9 Save & Exit ..................97 Chapter 4: Diagnostics................99 4.1 Flash Utility ..................99 4.2 AMIBIOS Post Code (Aptio) ............100 Appendix I: Fan and Temp Sensors ............. 107 Appendix II: RAID OPROM Configuration ..........111 Glossary....................113 Technical Support .................. 119 http://www.tyan.com...

  • Page 4: Before You Begin

    Check the box contents! The retail motherboard package should contain the following: 1 x S7055 Motherboard 6 x SATA Single Cable 1 x IO shield 1 x S7055 Quick Installation Guide ® 1 x TYAN Driver CD IMPORTANT NOTE: Sales samples may not come with any of the accessories listed above.

  • Page 5: Chapter 1: Instruction

    32 and 64-bit computing, high-bandwidth memory design, and lightning-fast PCI-E bus implementation. The S7055 not only empowers you in today’s demanding IT environment but also offers a smooth path for future application upgradeability. All of these rich feature sets provide the S7055 with the power and flexibility to meet demanding requirements for today’s IT environments.
  • Page 6 / User-configurable H/W monitoring / Auto-configurable of hard disk types Form Factor Physical SSI EEB Dimension Board Dimension 12"x13" (305x330mm) Operating System OS supported list Please visit out Web site for the latest update. http://www.tyan.com...
  • Page 7 - 40° C ~ 70° C (-40° F ~ 158° F) Temp. Environment In/Non-operating 90%, non-condensing at 35° C Humidity RoHS RoHS 6/6 Compliant Yes Motherboard (1) S7055 Motherboard Manual (1) Quick Installation Guide Package Contains Installation CD (1) TYAN installation CD I/O Shield (1) I/O Shield Cable SATA...
  • Page 8 H/W monitoring / Auto-configurable of hard disk types Form Factor Physical SSI EEB Dimension Board Dimension 12"x13" (305x330mm) Operating System OS supported list Please visit out Web site for the latest update. FCC (DoC) Class A Regulation CE (DoC) http://www.tyan.com...
  • Page 9 Package Contains Installation CD (1) TYAN installation CD I/O Shield (1) I/O Shield Cable SATA (6) SATA signal cables TYAN S7055 (S7055AGM3NR-2T [BTO]) Supported CPU Intel Xeon Processor E5-2600 Series Series Socket Type / Q'ty (2) LGA2011 Thermal Design Processor...
  • Page 10 CE (DoC) Operating Temp. 10° C ~ 35° C (50° F~ 95° F) Non-operating Operating - 40° C ~ 70° C (-40° F ~ 158° F) Temp. Environment In/Non-operating 90%, non-condensing at 35° C Humidity RoHS RoHS 6/6 Compliant Yes http://www.tyan.com...
  • Page 11 Motherboard (1) S7055 Motherboard Manual (1) Quick Installation Guide Package Contains Installation CD (1) TYAN installation CD I/O Shield (1) I/O Shield Cable SATA (6) SATA signal cables TYAN S7055 (S7055WGM3NR) Supported CPU Intel Xeon Processor E5-2600 Series Series Socket Type / Q'ty...
  • Page 12 - 40° C ~ 70° C (-40° F ~ 158° F) Temp. Environment In/Non-operating 90%, non-condensing at 35° C Humidity RoHS RoHS 6/6 Compliant Yes Motherboard (1) S7055 Motherboard Package Contains Manual (1) Quick Installation Guide Installation CD (1) TYAN installation CD http://www.tyan.com...

  • Page 13: Software Specifications

    I/O Shield (1) I/O Shield Cable SATA (6) SATA signal cables 1.3 Software Specifications For the latest OS (operation system) support and IPMI Configuration Guide, please visit our Web site for information. http://www.tyan.com...
  • Page 14 NOTE http://www.tyan.com...

  • Page 15: Chapter 2: Board Installation

    Caution! To avoid damaging the motherboard and associated components, do not use torque force greater than 7kgf/cm (6.09 lb/in) on each mounting screw for motherboard installation. Do not apply power to the board if it has been damaged. http://www.tyan.com...

  • Page 16: Board Image

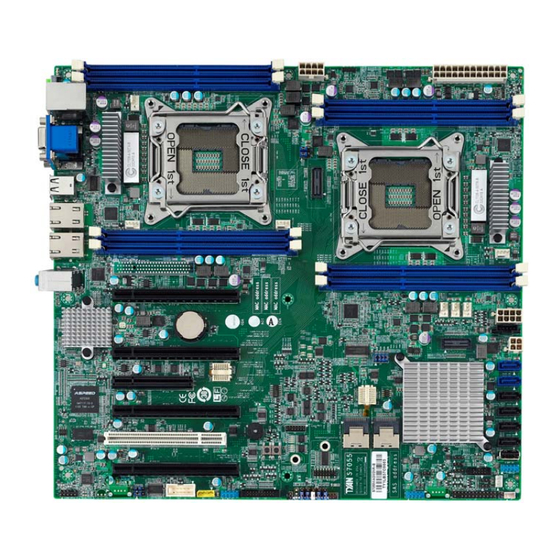

    2.1 Board Image S7055 This picture is representative of the latest board revision available at the time of publishing. The board you receive may not look exactly like the above picture. http://www.tyan.com...

  • Page 17: Block Diagram

    2.2 Block Diagram S7055 Block Diagram http://www.tyan.com...

  • Page 18: Mainboard Mechanical Drawing

    2.3 Mainboard Mechanical Drawing http://www.tyan.com...

  • Page 19: Board Parts, Jumpers And Connectors

    The board you receive may not look exactly like the above diagram. The DIMM slot numbers shown above can be used as a reference when reviewing the DIMM population guidelines shown later in the manual. For the latest board revision, please visit our web site at http://www.tyan.com. http://www.tyan.com...
  • Page 20 Front Fan Connector Reserved for Barebone J28 / J65 SSI 8-pin CPU1 / CPU0 Power Connector SSI 4-pin PCIE Power Connector SSI 24-pin Power Connector TYAN Module Header Patsburg Upgrade ROM Module Connector J36 / J38 Mini SAS Connector Vertical Type-A USB Connector...
  • Page 21 http://www.tyan.com...
  • Page 22 LAN1_ACTIVE_LED- Reset Switch+ SMB_DATA Reset Switch-(GND) SMB_CLK ID Switch+ INTUDER# TBMP Sensor LAN2_ACTIVE_LED+ NMI Switch# LAN2_ACTIVE_LED - J23/J40/J55: USB Front Panel Header (blue) Signal Signal USB 5V Power USB 5V Power USB Data- USB Data- USB Data+ USB Data+ http://www.tyan.com...
  • Page 23 http://www.tyan.com...
  • Page 24 SMB DATA SYSFAN TACH12 SMB CLK SYSFAN PWM2 J22: IPMB Connector Signal Signal BMC SMB DATA BMC SMB CLK J58: PSMI Connector 3.3V PSMI PSMI PSMI Signal Standby Clock Data Alert# (option) J52: LAN3 LED Header Signal LAN3LED+ LAN3LED- http://www.tyan.com...
  • Page 25 LED1 http://www.tyan.com...
  • Page 26 System identified System not identified NOTE: The ID LED can be activated remotely using IPMI. http://www.tyan.com Please visit the TYAN Web Site at to download the latest IPMI Configuration Guide for more details. J56: Vertical Type-A USB Connector Signal USB 5V Power...
  • Page 27 http://www.tyan.com...
  • Page 28 V3P3_AUX AUD_AZA_SDO J51: HDD Fault Header for BB HD Board Signal Signal SMB CLK SMB DATA HDD FAULT J1: Front Panel Audio Header Signal Signal MIC2 L AGND MIC2 R MIC2 JD LINE2 R SENSE LINE2 JD LINE2 L http://www.tyan.com...
  • Page 29 JP10 JP11 http://www.tyan.com...
  • Page 30 JP10: ME Firmware Update Jumper Pin 1-2 Closed: no function (Default) Pin 2-3 Closed: Update ME Firmware JP11: ME Recovery Mode Jumper Pin 1-2 Closed: Open (Default) Pin 2-3 Closed: ME Recovery J67: PCH Software SAS RAID Key Header Signal PCH_RAID_KEY http://www.tyan.com...
  • Page 31 http://www.tyan.com...
  • Page 32 JP8: Memory Slot Event Select Jumper Pin 1-2 Closed: Shutdown system (Default) Pin 2-3 Closed: BMC record the event only http://www.tyan.com...
  • Page 33 Therefore, the illustrations should be held for your reference only. Take out the Patsburg Upgrade ROM Kit. Locate the Patsburg Upgrade ROM Connector on your motherboard. Please note that the picture is only an example and may not exactly match your particular motherboard. http://www.tyan.com...
  • Page 34 Insert the Upgrade ROM Kit in the direction as the arrow shows. You have completed the Patsburg Upgrade ROM Kit installation. http://www.tyan.com...

  • Page 35: Installing The Processor And Heatsink

    2.5 Installing the Processor and Heatsink The types of processors supported by the S7055 are listed in the 1.2 Hardware http://www.tyan.com Specifications section on page 5. Check our website at ® the latest list of validated Intel processors for this specific motherboard.
  • Page 36 Place the CPU in the CPU socket and make sure that the gold arrow is located in the right direction with two notches properly aligned. Close the socket cover and press the CPU socket lever down to lock the CPU in place. The CPU installation is now complete. http://www.tyan.com...
  • Page 37 ® The following diagram illustrates how to install the heatsink on the Intel Sandy Bridge Socket R: Place the heat sink on top of the CPU and secure it to the motherboard with screws. Connect the fan power cord. http://www.tyan.com...

  • Page 38: Thermal Interface Material

    CPU lid (applying too much will actually reduce the cooling). NOTE: Always check with the manufacturer of the heat sink & processor to ensure that the thermal interface material is compatible with the processor and meets the manufacturer’s warranty requirements. http://www.tyan.com...

  • Page 39: Tips On Installing Motherboard In Chassis

    Note: Be especially careful to look for extra stand-offs. If there are any stand-offs present that are not aligned with a mounting hole on the motherboard, it will likely short components on the back of the motherboard when installed. This will cause malfunction and/or damage to your motherboard. http://www.tyan.com...
  • Page 40 Some chassis include plastic studs instead of metal. Although the plastic studs are usable, MiTAC recommends using metal studs with screws that will fasten the motherboard more securely in place. Below is a chart detailing what the most common motherboard studs look like and how they should be installed. http://www.tyan.com...

  • Page 41: Installing The Memory

    2.8 Installing the Memory Before installing memory, ensure that the memory you have is compatible with the motherboard and processor. Check the TYAN Web site at http://www.tyan.com details of the type of memory recommended for your motherboard.  The Sandy Bridge-EP/EX processor is a quad-channel design with a total of 4 DDR3 channels ...
  • Page 42 √ √ √ √ CPU0_DIMM_B0 √ √ √ √ √ √ CPU0_DIMM_C0 √ √ √ √ CPU0_DIMM_D0 √ √ CPU1_DIMM_A0 √ √ √ √ √ √ √ CPU1_DIMM_B0 √ √ √ √ √ CPU1_DIMM_C0 √ √ √ CPU1_DIMM_D0 √ http://www.tyan.com...
  • Page 43 The speeds are estimated targets and will be verified through simulation.  For 3SPC/3DPC -Rank Multiplication (RM) >= 2.  DDP -Dual Die Package DRAM stacking. P –Planer monolithic DRAM Die.  Romley-EP/EX platform does not support 3DPC when using E5-2400 LRDIMMs. http://www.tyan.com...
  • Page 44 Command Address Timing is 1N.  QR RDIMM are supported but not validated by Intel/PMO in a homogenous environment. The coverage will have limited system level testing, no signal integrity testing, and no interoperability testing. The passing QR RDIMMs will be web posted. http://www.tyan.com...

  • Page 45: Memory Installation Procedure

    Memory Installation Procedure Follow these instructions to install memory modules into the S7055. Press the locking levers in the direction shown in the following illustration. Align the memory module with the socket. The memory module is keyed to fit only one way in the socket.
  • Page 46 There are 8 DIMM Fault LEDs on the motherboard. The DIMM Fault LEDs are off when the DIMM slots work normally. However, if any of the DIMM slots failed, the DIMM Fault LED will turn red to warn you and help you identify the failed slot. http://www.tyan.com...

  • Page 47: Attaching Drive Cables

    SATA/SAS cables or power adapters please contact your local sales representative. Attaching SAS Cables The following illustrates how to make a SAS Cable connection. If you are in need of SATA/SAS cables or power adapters please contact your local sales representative. http://www.tyan.com...

  • Page 48: Installing Add-In Cards

    Doing so allows air to circulate within the chassis more easily, thus improving cooling for all installed devices. NOTE: You must always unplug the power connector from the motherboard before performing system hardware changes to avoid damaging the board or expansion device. http://www.tyan.com...

  • Page 49: Connecting External Devices

    Green 10 Mbps Active Blinking Green Link Green Solid Green 100 Mbps Active Blinking Green Solid Green Link Green Solid Yellow 1000 Mbps Active Blinking Green Solid Yellow Link Yellow Solid Yellow 10 Gbps Active Blinking Yellow Solid Yellow http://www.tyan.com...

  • Page 50: Installing The Power Supply

    2.12 Installing the Power Supply three (3) There are power connectors on your S7055 motherboard. The S7055 supports EPS 12V power supply. J43: ATX 24-Pin Power Connector Signal Signal +3.3V +3.3V +3.3V -12V PS ON# Power OK Reserve +5VSB +12V +12V +3.3V...

  • Page 51: Finishing Up

    In the rare circumstance that you have experienced difficulty, you can find help by asking your vendor for assistance. If they are not available for assistance, please find setup information and documentation online at our website or by calling your vendor’s support line. http://www.tyan.com...
  • Page 52 NOTE http://www.tyan.com...

  • Page 53: Chapter 3: Bios Setup

    The table below shows how to navigate in the setup program using the keyboard. Function Left/Right Arrow Keys Change from one menu to the next Up/Down Arrow Keys Move between selections Enter Open highlighted section PgUp/PgDn Keys Change pages Change options Exit http://www.tyan.com...
  • Page 54 The following pages provide the details of BIOS menu. Please be noticed that the BIOS menu are continually changing due to the BIOS updating. The BIOS menu provided are the most updated ones when this manual is written. Please visit TYAN’s website at http://www.tyan.com for the information of BIOS updating. http://www.tyan.com...

  • Page 55: Main Menu

    It displays BIOS related information. Memory Information This displays the total memory size. System Date Adjust the system date. MM (Months): DD (Days): YYYY (Years) System Time Adjust the system clock. HH (24 hours format): MM (Minutes): SS (Seconds) Access Level Read only. http://www.tyan.com...

  • Page 56: Advanced Menu

    PCI, PCI-X and PCI Express Settings. ACPI Settings System ACPI Parameters. CPU Configuration CPU Configuration Parameters. Runtime Error Logging Runtime Error Logging Support Setup Options SATA Configuration SATA Devices Configuration. SAS Configuration SAS Devices Configuration. Onboard Device Configuration Onboard Device Configuration. http://www.tyan.com...
  • Page 57 PCIe Slot Configuration PCIe Slot Configuration. USB Configuration USB Configuration Parameters. Hardware Health Configuration Hardware health Configuration Parameters. Super IO Configuration System Super IO Chip Parameters. Serial Port Console Redirection Serial Port Console Redirection. http://www.tyan.com...
  • Page 58 3.3.1 PCI Subsystem Settings Above 4G Decoding Enables or Disables 64bit capable Devices to be Decoded in Above 4G Address Space (Only if System Supports 64 bit PCI Decoding). Disabled / Enabled http://www.tyan.com...
  • Page 59 OS. Disabled / Enabled ACPI Sleep State Select the highest ACPI sleep state the system will enter when the SUSPEND button is pressed. Suspend Disabled / S1 (CPU Stop Clock) / S3 (Suspend to RAM) http://www.tyan.com...
  • Page 60 Disabled / Enabled Execute Disable Bit XD can prevent certain classes of malicious buffer overflow attacks when combined with a supporting OS (Windows Server 2003 SP1, Windows XP SP2, SuSE Linux 9.2, RedHat Enterprise 3 Update 3). Enabled / Disabled http://www.tyan.com...
  • Page 61 Intel Virtualization Technology When enabled, a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology. NOTE: Once the lock bit is set, the contents of this register can not be modified until S5 reset occurs. Enabled / Disabled http://www.tyan.com...
  • Page 62 3.3.3.1 Socket 0/1 CPU Information Read only. http://www.tyan.com...
  • Page 63 Enabled / Disabled P-STATE Coordination Change P-State coordination type. HW_ALL / Disabled CPU C3 Report Enable/Disable CPU C3 (ACPI C2) report to OS. Disabled / Enabled CPU C6 Report Enable/Disable CPU C6 (ACPI C3) report to OS. Enabled / Disabled http://www.tyan.com...
  • Page 64 Long duration power limit in Watts. Factory Long Duration Maintained Read only. Long Duration Maintained Time window which the long duration power is maintained. Recommended short duration power limit Read only. Short duration power limit Short duration power limit in Watts. http://www.tyan.com...
  • Page 65 3.3.4 Runtime Error Logging Runtime Error Logging Support Enable/Disable Runtime Error Logging Support. Disabled / Enabled http://www.tyan.com...
  • Page 66 3.3.5 SATA Configuration SATA Mode Select SATA Mode. IDE Mode / AHCI Mode / RAID Mode / Disabled Port 0/1/2/3/4/5 Hot Plug Enable/Disable SATA Ports Hot Plug Support. Enabled / Disabled http://www.tyan.com...
  • Page 67 3.3.6 SAS Configuration Read only. NOTE: You can press [CTRL_I] to set the RAID function while the RAID Card OPROM is loading. http://www.tyan.com...
  • Page 68 Disabled / PXE / ISCSI NOTE: The ISCSI function is only supported in LAN1. LAN2 Option ROM Enabled/Disabled the LAN Option ROM in the Chipset. Disabled / PXE LAN 82574 Enable or disable the LAN controller. Enabled / Disabled http://www.tyan.com...
  • Page 69 LAN3 Option ROM Enabled/Disabled the LAN Option ROM in the Chipset. Disabled / PXE http://www.tyan.com...
  • Page 70 3.3.8 PCIe Slot Configuration PCIe #1/3/4/5/7 OPTROM Enable/Disable OPTROM for PCIe slot. Disabled / Enabled PCIe #8 OPTROM (optional) Enable/Disable OPTROM for PCIe slot. Disabled / Enabled http://www.tyan.com...
  • Page 71 The time-out value for Control, Bulk and Interrupt transfers. 20 sec / 10 sec / 5 sec / 1 sec Device reset time-out USB mass storage device Start Unit command time-out. 20 sec / 10 sec / 30 sec / 40 sec http://www.tyan.com...
  • Page 72 Maximum time the device will take before it properly reports itself to the Host Controller. AUTO uses default value: for a Root port it is 100 ms, for a Hub port the delay is taken from Hub descriptor. Auto / Manual http://www.tyan.com...
  • Page 73 On / Off 3.3.10.1 Sensor Data Register Monitoring When you enter the Sensor Data Register Monitoring submenu, you will see the following dialog window pop out. Please wait 8~10 seconds. NOTE 1: SDR can not be modified. Read only. http://www.tyan.com...
  • Page 74 http://www.tyan.com...
  • Page 75 3.3.11 Super IO Configuration Super IO Chip Read only. http://www.tyan.com...
  • Page 76 / IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; / IO=3E8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; / IO=2E8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; Change Settings SUART clock source. 24MHZ/13 / 24MHz http://www.tyan.com...
  • Page 77 Serial Port for Out-Of-Band Management/Windows Emergency Services (EMS) Console Redirection Console redirection enable or disable. Disabled / Enabled Console Redirection Settings The settings specify how the host computer (which the user is using) will exchange data. Both computers should have the same or compatible settings. http://www.tyan.com...
  • Page 78 1’s in the data bits is odd. Mark: parity bit is always 1. Space: parity bit is always 0. Mark and Space parity do not allow for error detection. None / Even / Odd / Mark / Space http://www.tyan.com...
  • Page 79 Disabled / Enabled Legacy OS Redirection Resolution On Legacy OS, the number of rows and columns supported redirection. 80x24 / 80x25 Putty KeyPad Select FunctionKey and KeyPad on Putty. VT100 / LINUX / XTERMR6 / SCO / ESCN / VT400 http://www.tyan.com...
  • Page 80 ‘stop’ signal can be sent to stop the data flow. Once the buffers are empty, a ‘start’ signal can be sent to restart the flow. Hardware flow control uses two wires to send start/stop signal. None / Hardware RTS/CTS http://www.tyan.com...
  • Page 81 Data Bits / Parity / Stop Bits Read only. http://www.tyan.com...

  • Page 82: Chipset Menu

    3.4 Chipset Menu North Bridge North Bridge Parameters. South Bridge South Bridge Parameters. WatchDog Timer Configuration WatchDog Timer Configuration. http://www.tyan.com...
  • Page 83 Enabled / Disabled MPST Support Enable or Disable MPST Support. Along with enabling MPST Support, it also requires NUMA to be enabled and Channel Interleaving to be set to 1-way for MPST tables to be published. Disabled / Enabled http://www.tyan.com...
  • Page 84 DDR Speed Force DDR Speed. Auto / Force DDR3 800 / Force DDR3 1066 / Force DDR3 1333 / Force DDR3 1600 / Force DDR3 1866 http://www.tyan.com...
  • Page 85 Select number of 1GB contiguous regions to be assigned MMIOH space per CPU. 64G / 1G / 2G / 4G / 8G / 16G / 32G / 64G / 128G MMCFG Base Select the MMCFG BASE Values. 80000000 0xA0000000 0xC0000000 http://www.tyan.com...
  • Page 86 Disabled / Enabled ® NOTE: The following items will appear when Intel VT-d is set to [Enabled]. Coherency Support Enable/Disable VT-d Engine Coherency Support. Disabled / Enabled ATS Support Enable/Disable VT-d Engine Address Translation Services support. Enabled / Disabled http://www.tyan.com...
  • Page 87 QPI Configuration Submenu QPI Link Speed Mode Select the QPI link speed as either the Fast Mode or the Slow Mode. Fast / Slow QPI Link Frequency Select Select the QPI Link Frequency. Auto / 6.4GT/s / 7.2GT/s / 8.0GT/s http://www.tyan.com...
  • Page 88 3.4.1.3 DIMM Information Submenu Read only. http://www.tyan.com...
  • Page 89 Azalia HD Audio (optional) Enabled/Disabled Azalia HD Audio. Enabled / Disabled NOTE: The BIOS will automatically read the onboard audio controller. Chassis Intrusion Detection Enabled: When a chassis open event is detected, the BIOS will display the event. Disabled / Enabled http://www.tyan.com...
  • Page 90 Disabled / POST / OS / PowerON NOTE: Watch Dog Timer will appear when Watch Dog Mode is set to [Enabled]. Watch Dog Timer Watch Dog Timer Help. 2 MINS / 4 MINS / 6 MINS / 8 MINS / 10 MINS http://www.tyan.com...

  • Page 91: Boot

    Interrupt 19 Capture Enabled: allows Option ROMs to trap Int. 19. Enabled / Disabled Endless Boot Enable or disable Endless Boot. Disable Link / Enabled Boot Option #1/Boot Option #2/Boot Option #3 Select the first boot device. Device Name / Disabled http://www.tyan.com...

  • Page 92: Security

    Confirm New Password window will pop out to ask for confirmation. User Password Set user password in the Create New Password window. After you key in the password, the Confirm New Password window will pop out to ask for confirmation. http://www.tyan.com...

  • Page 93: Server Management

    3.7 Server Management Press <Enter> to change the SEL event log configuration. Enable/Disable interfaces to communicate with BMC. http://www.tyan.com...
  • Page 94 Choose options for reactions to a full SEL. Do Nothing / Erase Immediately Log EFI Status Codes Disable the logging of EFI Status Codes or log only error code or only progress code or both. Both / Disabled / Error Code / Progress Code http://www.tyan.com...
  • Page 95 3.7.2 BMC Network Configuration Configuration Address Source Select the configure LAN channel parameters statically or dynamically (by BIOS or BMC). Unspecified option will not modify any BMC network parameters during BIOS phase. Unspecified / Static / Dynamic-Obtained by BMC http://www.tyan.com...

  • Page 96: Event Logs

    3.8 Event Logs Read only. http://www.tyan.com...

  • Page 97: Save & Exit

    Save Options Read only. Save Changes Save changes done so far to any of the setup options. Discard Changes Discard changes done so far to any of the setup options. Restore Defaults Restore/Load Default values for all the setup options. http://www.tyan.com...
  • Page 98 Save as User Defaults Save the changes done so far as User Defaults. Restore User Defaults Restore the User Defaults to all the setup options. http://www.tyan.com...

  • Page 99: Chapter 4: Diagnostics

    BIOS flash failure, you must contact your dealer for a replacement BIOS. There are no exceptions. TYAN does not have a policy for replacing BIOS chips directly with end users. In no event will TYAN be held responsible for damages done by the end user.

  • Page 100: Amibios Post Code (Aptio)

    South Bridge initialization before microcode loading 0x05 OEM initialization before microcode loading 0x06 Microcode loading 0x07 AP initialization after microcode loading 0x08 North Bridge initialization after microcode loading 0x09 South Bridge initialization after microcode loading 0x0A OEM initialization after microcode loading 0x0B Cache initialization http://www.tyan.com...
  • Page 101 CPU post-memory initialization is started. 0x33 CPU post-memory initialization. Cache initialization 0x34 CPU post-memory initialization. Application Processor(s) (AP) initialization 0x35 CPU post-memory initialization. Boot Strap Processor (BSP) selection 0x36 CPU post-memory initialization. System Management Mode(SMM) initialization 0x37 Post-Memory North Bridge initialization is started. http://www.tyan.com...
  • Page 102 Reserved for future AMI progress codes S3 Resume Error Codes 0xE8 S3 Resume failed 0xE9 S3 Resume PPI not found 0xEA S3 Resume Boot Script error 0xEB S3 OS wake error 0xEC – 0xEF Reserved for future AMI error codes http://www.tyan.com...
  • Page 103 CPU DXE initialization (CPU module specific) 0x67 CPU DXE initialization (CPU module specific) 0x68 PCI host bridge initialization 0x69 North Bridge DXE initialization is started. 0x6A North Bridge DXE SMM initialization is started. 0x6B North Bridge DXE initialization (North Bridge module specific) http://www.tyan.com...
  • Page 104 USB initialization is started. 0x9B USB Reset 0x9C USB Detect 0x9D USB Enable 0x9E -0x9F Reserved for future AMI codes 0xA0 IDE initialization is started 0xA1 IDE Reset 0xA2 IDE Detect 0xA3 IDE Enable 0xA4 SCSI initialization is started. http://www.tyan.com...
  • Page 105 No Console Output Devices are found. 0xD7 No Console Input Devices are found. 0xD8 Invalid password 0xD9 Error loading Boot Option (LoadImage returned error) 0xDA Boot Option is failed (StartImage returned error). 0xDB Flash update is failed. 0xDC Reset protocol is not available. http://www.tyan.com...
  • Page 106 System is waking up from the S3 sleep state. 0x40 System is waking up from the S4 sleep state. 0xAC System has transitioned into ACPI mode. Interrupt controller is in APIC mode. 0xAA System has transitioned into ACPI mode. Interrupt controller is in APIC mode. http://www.tyan.com...

  • Page 107: Appendix I: Fan And Temp Sensors

    (rpm) Temp Sensor: PCH_Area_Temp, LAN_Temp and PCI-E_air_inlet. They detect the system temperature around. NOTE: The system temperature is measured in a scale defined by Intel, not in Fahrenheit or Celsius. http://www.tyan.com...
  • Page 108 BIOS Temp Sensor Name Explanation: http://www.tyan.com...
  • Page 109 Fan speed of SYS_FAN_5 SYS_FAN_6 Fan speed of SYS_FAN_6 SYS_FAN_7 Fan speed of SYS_FAN_7 SYS_FAN_8 Fan speed of SYS_FAN_8 SYS_FAN_9 Fan speed of SYS_FAN_9 SYS_FAN_10 Fan speed of SYS_FAN_10 SYS_FAN_11 Fan speed of SYS_FAN_11 SYS_FAN_12 Fan speed of SYS_FAN_12 http://www.tyan.com...
  • Page 110 NOTE http://www.tyan.com...

  • Page 111: Appendix Ii: Raid Oprom Configuration

    When the RAID OPROM loads during boot-up, it displays pertinent information about the RAID logical drives that it finds. <CTRL-I> When the RAID Option ROM screen appears, press to enter the Utility. Follow the instructions on your computer screen to complete the RAID OPROM Configuration. http://www.tyan.com...
  • Page 112 NOTE http://www.tyan.com...

  • Page 113: Glossary

    (reading to or writing from a disk drive a single time is much faster than doing so repeatedly) there is the possibility of losing your data should the system crash. Information in a buffer is temporarily stored, not permanently saved. http://www.tyan.com...
  • Page 114 (like soundcards or keyboards) to access the main memory without involving the CPU. This frees up CPU resources for other tasks. As with IRQs, it is vital that you do not double up devices on a single line. Plug-n-Play devices will take care of this for you. http://www.tyan.com...
  • Page 115 EEPROM (Electrically Erasable Programmable ROM): also called Flash BIOS, it is a ROM chip which can, unlike normal ROM, be updated. This allows you to keep ® up with changes in the BIOS programs without having to buy a new chip. TYAN ’s BIOS updates can be found at http://www.tyan.com...
  • Page 116 PXE (Preboot Execution Environment): one of four components that together make up the Wired for Management 2.0 baseline specification. PXE was designed to define a standard set of preboot protocol services within a client with the goal of allowing networked-based booting to boot using industry standard protocols. http://www.tyan.com...
  • Page 117 NVIDIA s (graphics communications processing units) and NVIDIA MCPs (media and processors). application Depending on the , NVIDIA SLI can deliver as much as two times the performance of a single GPU configuration. http://www.tyan.com...
  • Page 118 CPUs without damaging the sensitive CPU pins. The CPU is lightly placed in an open ZIF socket, and a lever is pulled down. This shifts the processor over and down, guiding it into the board and locking it into place. http://www.tyan.com...

  • Page 119: Technical Support

    "TYAN's tech support is some of the most impressive we've seen, with great response time and exceptional organization in general" - Anandtech.com Help Resources: 1. See the beep codes section of this manual.
  • Page 120 (RMA) number. The RMA number Should be prominently displayed on the outside of the shipping carton and the package should be mailed prepaid. ® TYAN will pay to have the board shipped back to you. Notice for the USA Compliance Information Statement (Declaration of...
