Summary of Contents for Acesonic DGX-211

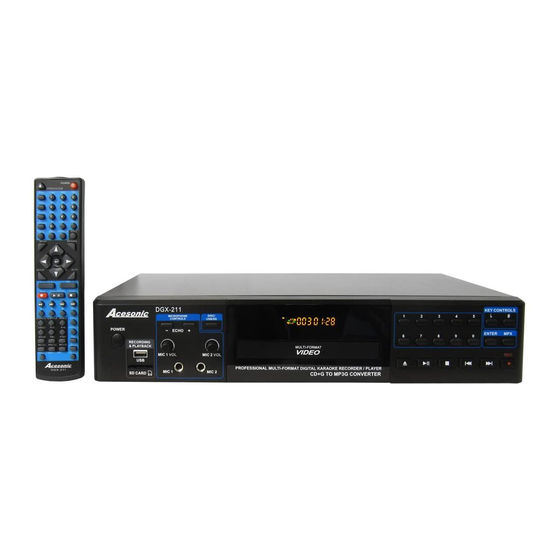

- Page 1 DGX-211 Multi-Function HDMI Karaoke Player With Digital Recording & MP3G Ripping Function USER’S MANUAL www.acesonic.com CAUTION: To assure this player will work at its best, please read this user’s manual carefully before operation and keep for future reference.
- Page 2 Warnings, Cautions and Others Mises en garde, precautions et indications diverses For Canada/Pour le Canada CAUTION CAUTION: TO PREVENT ELECTRIC SHOCK, RISK OF ELECTRIC SHOCK DO NOT OPEN MATCH WIDE BLADE OF PLUG TO WIDE SLOT,AND FULLY INSERT. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK).
-
Page 3: Important Safety Instructions
Important Safety instructions 18. Overloading Do not overload wall outlets, extension cords, or integral 1. Read These Instructions. convenience receptacles as this can result in a risk of fire or electric shock. 2. Keep These Instructions. 3. Heed All Warnings. 19. -
Page 4: Table Of Contents
DGX-211 Table of Contents Included Accessories Before Operation Please check that you have all of the following Playable Media accessories supplied to you. If anything is missing, Handling and Cleaning of Discs please contact your dealer immediately. Front Panel Functions... -
Page 5: Before Operation
Before Operation Playable Media Handling and Cleaning of Discs This unit supports the following disc formats: *DVD, AVI, Video CD, Video CD 2.0 Handling *CD+Graphics, Audio CD, HDCD. *At anytime, when handling discs, always hold them from *MP3, MP3+G, JPEG, Kodak, MPEG their edges and/or by the circle in the center. -
Page 6: Front Panel Functions
BACK PANEL FUNCTIONS AND OPERATION: Multi-Format Karaoke Player VGA OUTPUT VIDEO & AUDIO OUTPUT OPTICAL SURROUND AUDIO OUTPUT Model: DGX-211 Voltage:100~240V Power: 25W S/N:____________ www.acesonic.com Design in U.S.A MIC & MUSIC AUDIO OUT 1.ELECTRIC PLUG - Connection to auto-detect AC power supply 6. -
Page 7: Remote Functions
Remote Functions 1. POWER BUTTON - Turns the player on or off. 2. SD CARD - Press to change to SD card mode. 3. USB PORT - Press to change to USB mode if USB devices is connected. 4. DVD DISC - Press to change to the disc mode. 5. -
Page 8: Remote Functions
Remote Functions 22. PAUSE BUTTON- Press the button while the disc is playing, to pause playback. STEP BUTTON- Press to play the frame step by step. Press the PLAY button once to return to normal playback. 24. STOP BUTTON - Press to STOP playback. 25.&... -
Page 9: Player Connections
If you wish to use this player in karaoke mode, you must have your player connected as the picture below. Multi-Format Karaoke Player VIDEO & AUDIO OUTPUT OPTICAL VGA OUTPUT SURROUND AUDIO OUTPUT Model: DGX-211 Voltage:100~240V Power: 25W S/N:____________ www.acesonic.com Design in U.S.A MIC &... -
Page 10: Player Connections
You can connect this player with 5.1 channel amplifiers as shown below: Multi-Format Karaoke Player VGA OUTPUT VIDEO & AUDIO OUTPUT OPTICAL SURROUND AUDIO OUTPUT Model: DGX-211 Voltage:100~240V Power: 25W S/N:____________ www.acesonic.com Design in U.S.A MIC & MUSIC AUDIO OUT *NO Microphone audio will be outputted in 5.1 Channel mode... -
Page 11: Basic Operation
The DGX-210 may support 2.5” external hard drives that do not require an external power source but we cannot guarantee it will support all models. Acesonic recommends using a USB flash drive formatted to FAT32 but due to the many different brands available, we cannot guarantee every USB flash drive will work. -
Page 12: Karaoke Operation
Basic Operation Karaoke - USING MICROPHONE The system has 2 microphone inputs with individual vol. adjusment. Connected up to 2 microphones to this players. Karaoke-To recording singing(See also Page12 -13): 1. Play Mp3, CD,CDG,MP3G or VCD song from disc, Mp3, MP3G song from USB or SD card. -
Page 13: System Setup
Basic Operation SYSTEM SETUP Unload the Disc then: Press to open the SETUP KEY Setup MENU. TV SYSTEM 1) Press ] to choose Direction KEY “TV SYSTEM” 2) Press ] to show Direction KEY Sub-MENU. 3) Press [ / ] to select the TV system [NTSC/ PAL/AUTO] . Direction KEY SCREEN SAVER 1) Press... -
Page 14: Audio Setup
Basic Operation AUDIO LANGUAGE 1) Press ] to choose Direction KEY “AUDIO LANGUAGE”. 2) Press ] to show Direction KEY Sub-MENU. 3) Press ] to select the [ ENGLISH, GERMAN, FRENCH , SPANISH ]. Direction KEY Language 4) Press to confirm it. ENTER SUBTITLE LANGUAGE 1) Press... -
Page 15: Mp3G Recording Operation
BASIC RECORDING OPERATION FOR MP3+G WHAT IS MP3+G An MP3+G file is a karaoke based file format that consists of two files. An audio file in MP3 form and a Graphic file which displays on screen lyrics. These two files combined are called an MP3+G file. - Page 16 BASIC RECORDING OPERATION FOR MP3+G 4. Next, go to TRACKS section, to select one or few or all tracks which you desire to transfer to MP3+G format. Click here if you want to check/uncheck all tracks 5. Go to START section, you will see the ripping information. To start the ripping process, press ENTER. There are two status bar showing the ripping progresses while ripping.
-
Page 17: Advanced Operations
Advanced Operations Playing From A Specific Position Player Repeating Playback Press REPEAT. If you press REPEAT in stop mode, Locating a desired scene from the DVD menu press PLAY to start playback. Each time you press DVD discs generally have their own menus showing the REPEAT, the repeat mode cycles among REP-ALL, REP- contents of the disc. -
Page 18: Song Searching By Number
Advanced Operations Create Song List: 1. In the Disc/USB/SD Card mode, you can have a create your own song list from current MP3/MP3G songs in the disc/USB/SD Card. Press CREATE SONG LIST button on the remote to start the processing. 2. - Page 19 Remember to try inspecting other components and electrical appliances in use. If the trouble cannot be rectified even after exercising the steps listed below, call our Acesonic service center +1-626-820-0670 to inquire about repairs. Symptom...
-
Page 20: Troubleshooting
Troubleshooting Symptom Possible Causes Karaoke Operations 11. There's no sound from * Only HDMI & RCA mix output will support Karaoke Output. See page 6. the microphone * You need to adjust the volume of microphone. 12. There's feedback and screeching * The microphones are too close to the speakers 13. - Page 21 Note:...
-
Page 22: Specifications
MP3+G,CD+G,AVI, CD, VCD, MPEG, JPG Multimedia Source Interface USB 2.0 Port for MP3/JPEG/ AVI playbacks and JPEG viewing. Weight 2.5 Kg 430(W) X 125(D) X 80(H)mm Dimensions ACESONIC USA CORP. City of Industry CA, U.S.A Customer service: +1626 820 0670 www.acesonic.com...
