  • Page 1 PROFESSIONAL AUDIO& KARAOKE SYSTEM User Manual...

  • Page 2: Table Of Contents

    SAFETY FOR USERS INTRODUCTION AND CONTENTS All safety and operating instructions should be read before the product Thank you for choosing this product. is operated. Be sure to inspect packaging and contents for any damages incurred during shipping and transit. Please read this User Manual before you connect or operate this Power: This unit should only use the same type as shown in this manual.

  • Page 3: Features

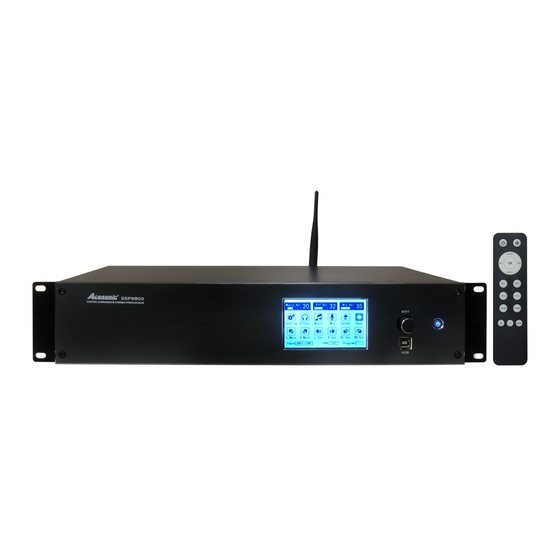

    FEATURES FRONT PANEL AND FUNCTIONS This device is a professional integrated design of all-digital Karaoke and cinema processor with 7.1 channels output. It supports DOLBY, DTS and other decoding format, also has the professional KTV sound effect; With multiple functions such as home theater, Vocal Effects, X-OVER, Limiter, Delay and other functions.

  • Page 4: Back Panel And Functions

    BACK PANEL AND FUNCTIONS BACK PANEL AND FUNCTIONS 16 17 13.REC output 14.Music input 15.RS485 interface 16.RS232 interface 4 5 6 7 8 9 10 11 12 1314 17.Ethernet interface 1. Power switch AC INPUT 90-240V-50/60Hz 18.Optical interface, Coaxial interface 2.

  • Page 5: System Connection Diagram

    SYSTEM CONNECTION DIAGRAM TERMINAL CONNECTION DIAGRAM Connecting Attention: RS232 Terminal Connection Diagram: 1. Adjust each volume to the minimum level or turn off power amplifier ; Connect to the 5th foot of the 9 pins 2. Check if the available voltage meets the requirement before connecting serial port on the PC computer the power socket Connect to the 3th foot of the 9 pins...

  • Page 6: Menu Function

    MENU FUNCTION MENU FUNCTION Basic functional Setting 5.Audio& Video inputTouch the “Input” on the screen. VOD, DVD, Boot Interface COAXIAL, OPTICAL, HDMI1, HDMI2, HDMI3, HDMI4 input sources Upon powering on, the boot interface on the LCD will appear as are optional. illustrated: MUS Vol EFF Vol...
  • Page 7 MENU FUNCTION MENU FUNCTION Main Menu ©. Password Reset: Reset the new password. 1.Setting I. Standby: Turn on this button, once switch the power on, the device There are 2 pages of setting for Setting menu, parameters can be will open automatically. set independently.
  • Page 8 MENU FUNCTION MENU FUNCTION 4.MIC 7. Main left Each parameter can be set independently. There are Bass, Mid, There are Gain, MUSIC VOL, MIC VOL, Echo VOL and Reverb VOL Treble for independent A/B way MIC. Rotate EDIT to adjust the in Main left menu.

  • Page 9: Software Operation And Application

    SOFTWARE OPERATION AND APPLICATION SOFTWARE OPERATION AND APPLICATION 1. Connect the corresponding input source, then connect the corresponding (2). Apple application software setting: Get into setting, and open the output channels, and power on the machine. wireless network to search the device. When you have searched 2.
  • Page 10 SOFTWARE OPERATION AND APPLICATION SOFTWARE OPERATION AND APPLICATION Network Device Name and Password Setting: Your device comes with a pre-fixed name and default connecting password and you may change them according to your preference. The modification ways are the following statement. A.
  • Page 11 SOFTWARE OPERATION AND APPLICATION SOFTWARE OPERATION AND APPLICATION Methods pictured 1 and 2 as follows: Methods pictured 1 and 2 as follows: Picture 1 ① Picture 1 ② ③ Picture 2 Picture 2 ④ B. Set by Apple mobile device: Refer to the same way as setting in PC.
  • Page 12 SOFTWARE OPERATION AND APPLICATION SOFTWARE OPERATION AND APPLICATION This machine can be applied to Apple wireless mobile setting, the IPad editing interface: editing software include PC and mobile Phones. Detailed operating Turn on the machine and open the WiFi setting to connect to it. iPad as below: software is more professional than iPhone.
  • Page 13 SOFTWARE OPERATION AND APPLICATION SOFTWARE OPERATION AND APPLICATION As picture 2 As picture 3 As picture 6 As picture 7 Audio input source include: VOD, DVD, Video input source include: HDMI 1-4. Load: Load for User data Save: Save for User data COAXIAL, OPTICAL, HDMI 1-4.
  • Page 14 SOFTWARE OPERATION AND APPLICATION SOFTWARE OPERATION AND APPLICATION IPad operation: 16 bands PEQ for Music. Independent 16 bands PEQ for A/B way MIC. Click EQ parameter to switch and adjust each PEQ, or operate on the curve graph. As shown in picture: Center output SUB output 5 bands PEQ+LPF/HPF+Mixer+Gain+...

  • Page 15: Remote Control Keys And Functions

    SOFTWARE OPERATION AND APPLICATION REMOTE CONTROL KEYS AND FUNCTIONS PC software operation: 16 bands PEQ for Music and A/B way MIC for PC software. Connect the machine by WiFi or USB to software interface as illustrated in picture 1 below.Click the on-line button on the upper right of the software to connect the machine with the external equipment.

  • Page 16: Technical Parameters

    TECHNICAL PARAMETERS FAULTS AND MAINTENANCE Attention: Output channel Main(R/L)/Center/SUB/SURR(L/R) When it doesn't work, it is not always the problem of the device itself, >85dB maybe it is damaged in the shipment. Please check carefully by the S/N R > 100dB Music following ways before you take the device to repair.
