Summary of Contents for Acesonic DGX-210

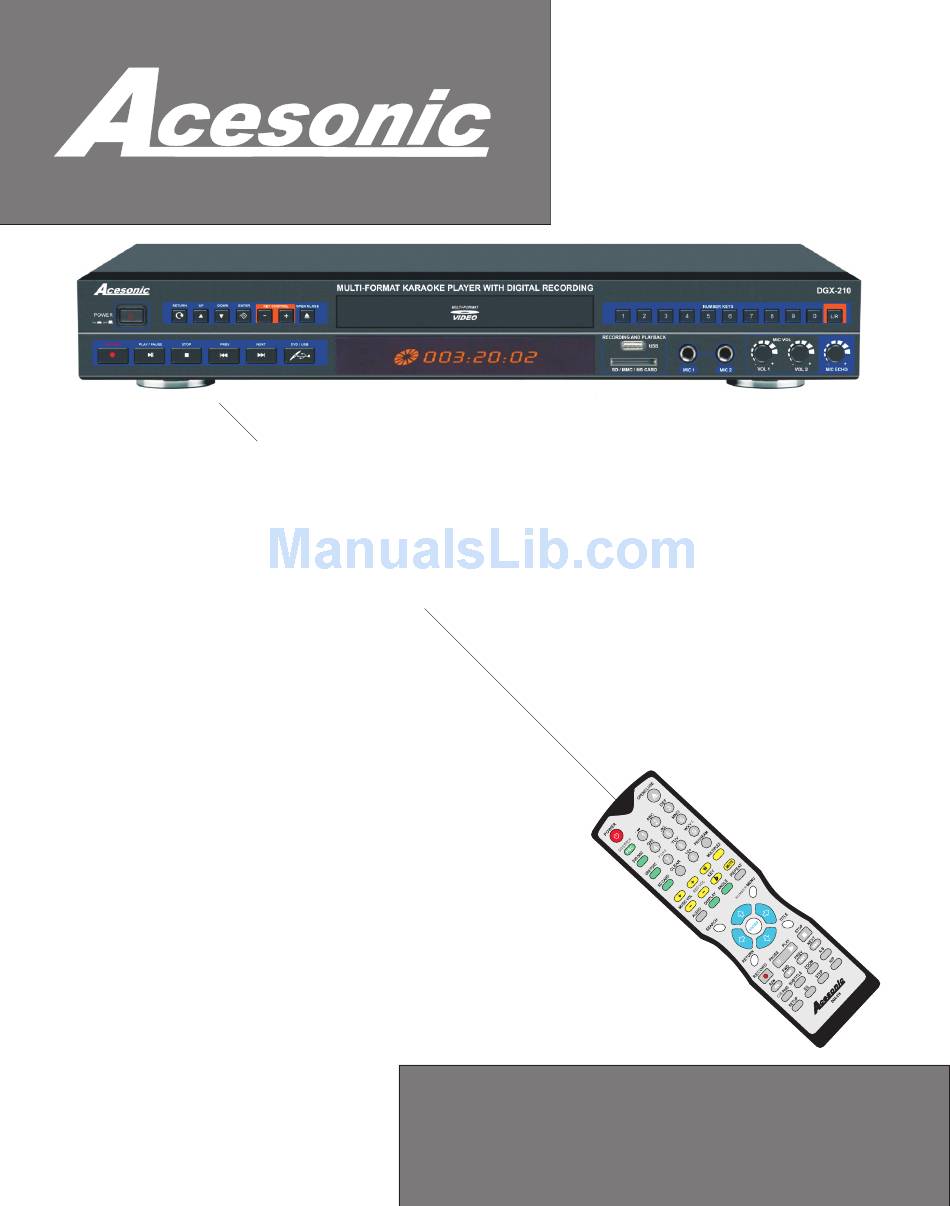

- Page 1 MINI SD DGX-106 DGX-210 Multi-Function Karaoke Player With Digital Recording & MP3G Ripping Function USER’S MANUAL www.acesonic.com CAUTION: To assure this player will work at its best, please read this user’s manual carefully before operation and keep for future reference.
- Page 2 Warnings, Cautions and Others Mises en garde, precautions et indications diverses For Canada/Pour le Canada CAUTION CAUTION: TO PREVENT ELECTRIC SHOCK, RISK OF ELECTRIC SHOCK DO NOT OPEN MATCH WIDE BLADE OF PLUG TO WIDE SLOT,AND FULLY INSERT. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. ATTENTION: DO NOT REMOVE COVER (OR BACK).
- Page 3 Important Safety instructions 18. Overloading Do not overload wall outlets, extension cords, or integral 1. Read These Instructions. convenience receptacles as this can result in a risk of fire or electric shock. 2. Keep These Instructions. 3. Heed All Warnings. 19.
-
Page 4: Table Of Contents
cesonic DGX-210 Table of Contents Included Accessories Before Operation Please check that you have all of the following Playable Media accessories supplied to you. If anything is missing, Handling and Cleaning of Discs please contact your dealer immediately. Front Panel Functions Back Panel Functions *RCA Audio/Video Cable (Yellow/Red/White) Remote Functions... -
Page 5: Before Operation
Before Operation Playable Media Handling and Cleaning of Discs This unit supports the following disc formats: *DVD, AVI, Video CD, Video CD 2.0 Handling *CD+Graphics, Audio CD, HDCD. *At anytime, when handling discs, always hold them from *MP3, MP3+G, JPEG, Kodak, MPEG their edges and/or by the circle in the center. -
Page 6: Front Panel Functions
FRONT PANEL FUNCTIONS AND OPERATION: 16 19 1. POWER - Press the button to turn the unit on or off. PREV or NEXT - Press to go to the previous or next track 2. MIC 1 & 2 INPUT jacks - Connects microphones with 1/4 inch plug. OPEN/CLOSE - Used to open and close disc tray. -
Page 7: Remote Functions
Remote Functions 1. POWER BUTTON - Turns the player on or off. 2. GUI SWITCH/PCB BUTTON - In MP3G mode, press the button to switch between windows and playback display mode. PBC: this function is only available for video-cd version 2.0 or higher. The function of PBC may differ by different discs. - Page 8 18. CUE /PASS - Cue: Switching the mode between Remote Functions Karaoke and DVD. In Karaoke mode, player will be paused after one track has finished playing. In DVD mode, all tracks will be played continually. * Karaoke mode= Cue on, DVD mode= Cue off.
-
Page 9: Player Connections
Note: We can not guarantee this machine will Player Connections read and play all USB memory devices. *See more information on Page 8. We recommend using USB version 2.0, USB & SD CARD class 4 or higher SD cards for smooth recording and playback. - Page 10 Player Connections Player Connections MAKING THE CONNECTION BETWEEN DGX-210 WITH 5.1 CHANNEL AMPLIFIERS You can connect your DGX-210 with 5.1 channel amplifiers as shown below: NO Microphone audio will be outputted in 5.1 Channel mode Rear Speaker (left) Rear Speaker (right) Subwoofer Speaker (for mid &...
-
Page 11: Basic Operation
The DGX-210 may support 2.5” external hard drives that do not require an external power source but we cannot guarantee it will support all models. Acesonic recommends using a USB flash drive formatted to FAT32 but due to the many different brands available, we cannot guarantee every USB flash drive will work. -
Page 12: Karaoke Operation
Basic Operation Karaoke - MICROPHONE ECHO Karaoke - USING MICROPHONE The system has 2 microphone inputs. You can adjust echo while recording by pressing the up Connected up to 2 microphones to this players. or down directional keys on your remote. This feature is only available while recording is in progress. -
Page 13: System Setup
Basic Operation SYSTEM SETUP Unload the Disc then: Press to open the SETUP KEY Setup MENU. TV SYSTEM 1) Press ] to choose Direction KEY “TV SYSTEM” 2) Press ] to show Direction KEY Sub-MENU. 3) Press [ / ] to select the TV system [NTSC/ PAL/AUTO] . Direction KEY SCREEN SAVER 1) Press... -
Page 14: Audio Setup
Basic Operation AUDIO LANGUAGE 1) Press ] to choose Direction KEY “AUDIO LANGUAGE”. 2) Press ] to show Direction KEY Sub-MENU. 3) Press ] to select the [ ENGLISH, GERMAN, FRENCH , SPANISH ]. Direction KEY Language 4) Press to confirm it. ENTER SUBTITLE LANGUAGE 1) Press... -
Page 15: Mp3G Recording Operation
BASIC RECORDING OPERATION FOR MP3+G WHAT IS MP3+G An MP3+G file is a karaoke based file format that consists of two files. An audio file in MP3 form and a Graphic file which displays on screen lyrics. These two files combined are called an MP3+G file. - Page 16 BASIC RECORDING OPERATION FOR MP3+G TRANSFER CDG TO MP3+G The DGX-210 can also be used to transfer CDG’s to MP3+G Files. Being that an MP3+G file only occupies about one eighth of the required space for a CDG, this is great way to back up your CDG’s and protect your investment.
-
Page 17: Advanced Operations
Advanced Operations Playing From A Specific Position Player Repeating Playback Press REPEAT. If you press REPEAT in stop mode, Locating a desired scene from the DVD menu press PLAY to start playback. Each time you press DVD discs generally have their own menus showing the REPEAT, the repeat mode cycles among REP-ALL, REP- contents of the disc. -
Page 18: Song Searching By Number
Advanced Operations Searching by Song Number: Song searching by title: In USB/SD Card mode, you can search song by song title(file name). In the USB/SD Card mode, you can play songs from 1. Press TITLE button on the remote control to call out USB/SD devices by the song number that the unit the Song searching by title screen.(see below picture) assigns the number to each song automatically. - Page 19 Remember to try inspecting other components and electrical appliances in use. If the trouble cannot be rectified even after exercising the steps listed below, call our Acesonic service center +1-626-820-0670 to inquire about repairs. Symptom...
-
Page 20: Troubleshooting
Troubleshooting Symptom Possible Causes Karaoke Operations 11. There's no sound from * You need to connect the amp to the Karaoke Output jacks. See page 7. the microphone * You need to adjust the volume of microphone. 12. There's feedback and screeching * The microphones are too close to the speakers Video 13. - Page 21 Note:...
-
Page 22: Specifications
MP3+G,CD+G,AVI, CD, VCD, MPEG, JPG Multimedia Source Interface USB 1.1 Port for MP3/JPEG/ AVI playbacks and JPEG viewing. Weight 2.5 Kg 430(W) X 225(D) X 55(H)mm Dimensions ACESONIC USA CORP. City of Industry CA, U.S.A Customer service: +1626 820 0670 www.acesonic.com...
