1-4
RealPort CardBus Ethernet 10/100+Modem 56 User's Guide

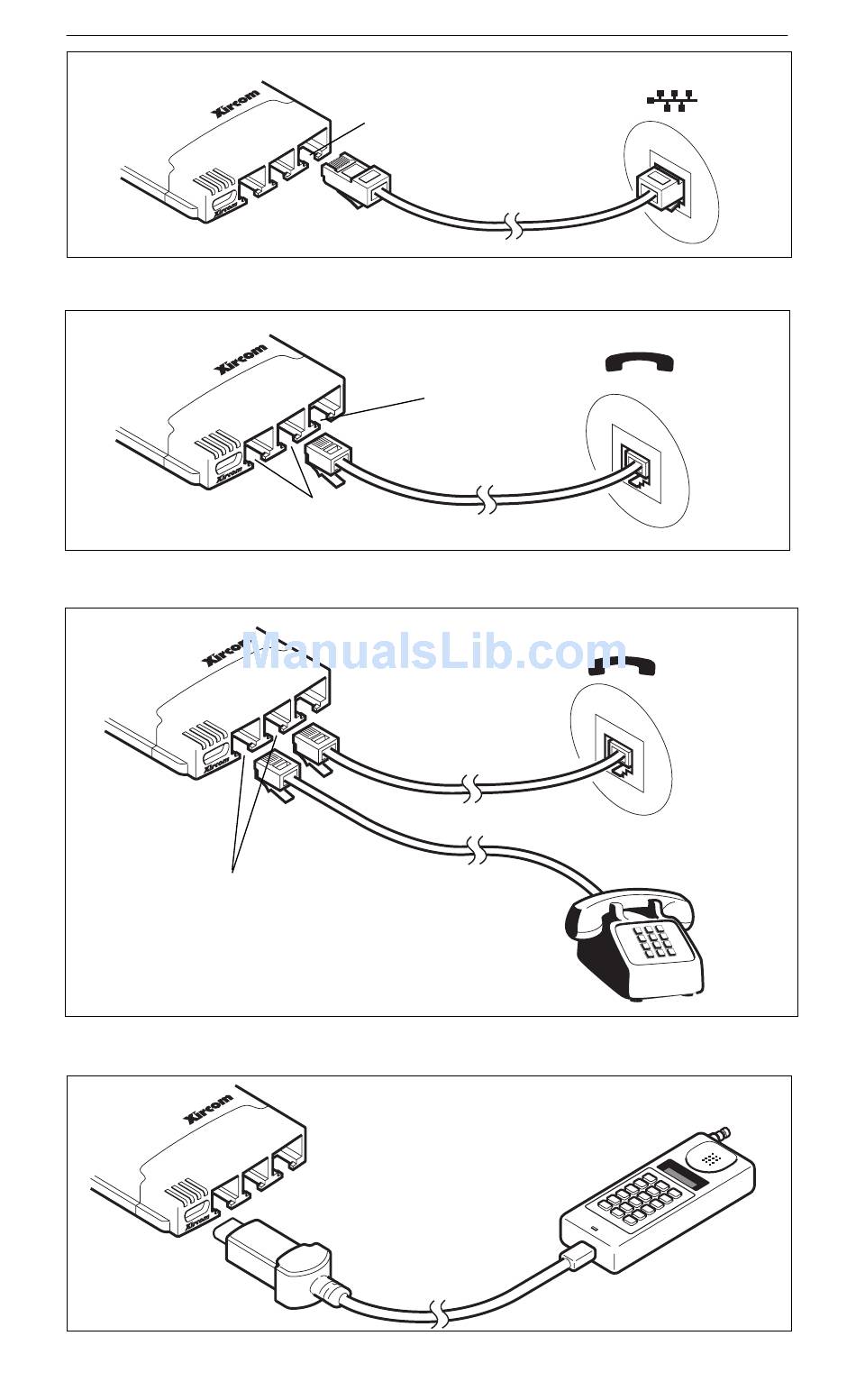

Connecting to a 100Base-TX or 10Base-T LAN (RJ-45)
Connecting Modem to the Telephone Network (RJ-11)
RJ-11 connectors are identical: use
one for modem link, one for an
approved telephone. Some
countries prohibit or restrict use of
a second RJ-11 connection.
Connecting an Approved Telephone (RJ-11)
Connecting to a Wireless Handset for Data Transmission
RJ-45
DO NOT PLUG AN RJ-11
CONNECTOR INTO THE
RJ-45 SOCKET.
RJ-11
GSM 900, 1800, 1900;
DCS 1800; PCS 1900;
AMPS Cellular; ISDN
(optional kits available)
