3 For modem operations: an analog telephone line, RJ-11
modular telephone cable (supplied), and if needed, RJ-11
adapter for the local telephone system. Communications
software is required for modem and fax operations.
The two RJ-11 ports on the RealPort Integrated PC Card are
identical: use one to connect the modem to the telephone
line, the other for an approved telephone set. Some
countries prohibit or restrict use of two RJ-11 connections.
The CardBus adapter can only be used in CardBus-compli-
ant PC Card slots.
MODEM LEDs
1 TRANSMIT/RECEIVE (YELLOW)
2 CARRIER DETECT (GREEN)

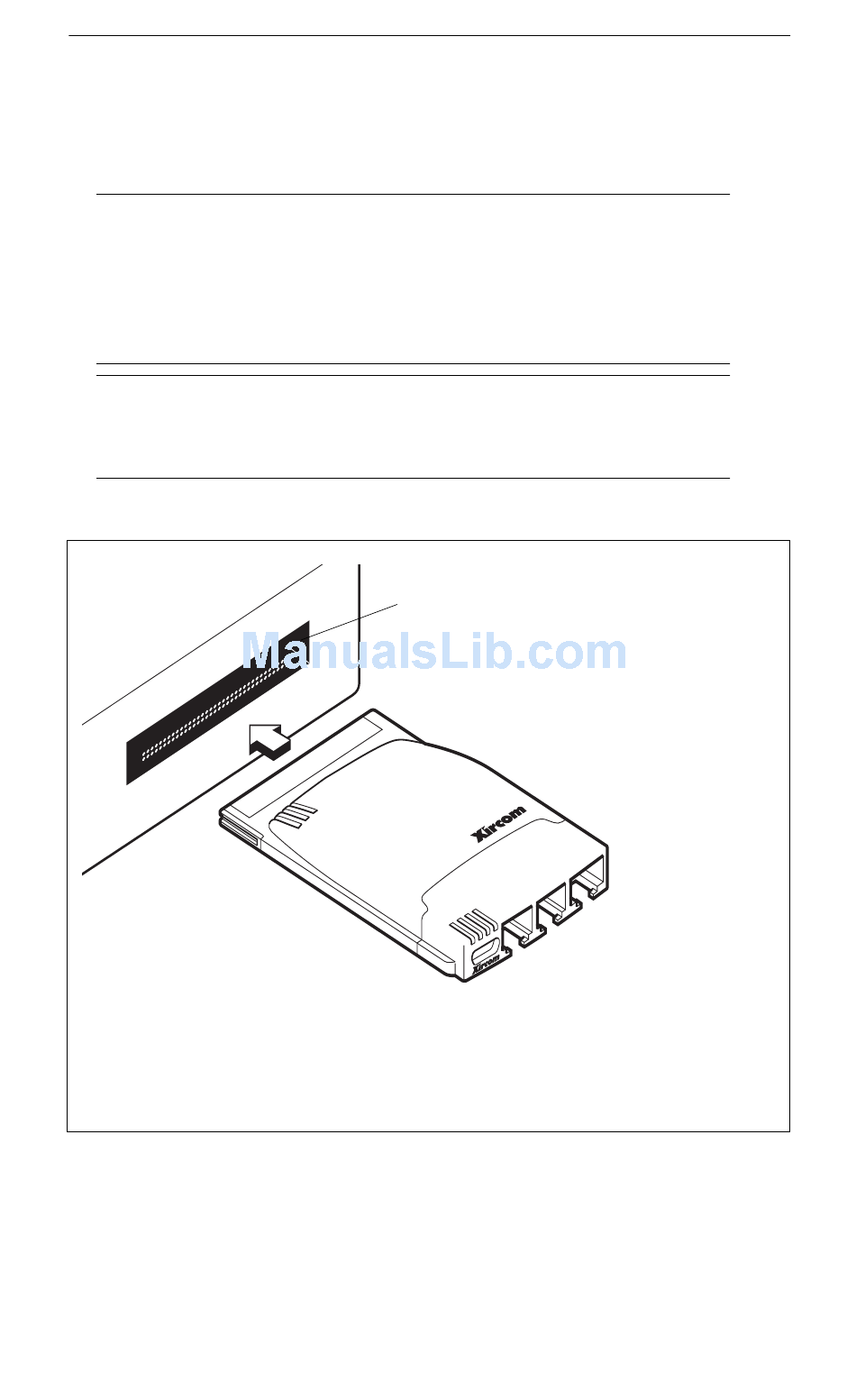

Inserting the RealPort Integrated PC Card
Hardware Installation
PC CARD TYPE III OR DUAL
TYPE II SLOT
2 3 4
1
LAN LEDs
3 LAN ACTIVITY (YELLOW)
4 LAN LINK
ORANGE - 100Mbps
GREEN - 10Mbps
1-3
