Mobile Phone
Operating Instructions
PowerTel M6000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PowerTel M6000 and is the answer not in the manual?

Questions and answers

Related Manuals for Amplicomms PowerTel M6000

Summary of Contents for Amplicomms PowerTel M6000

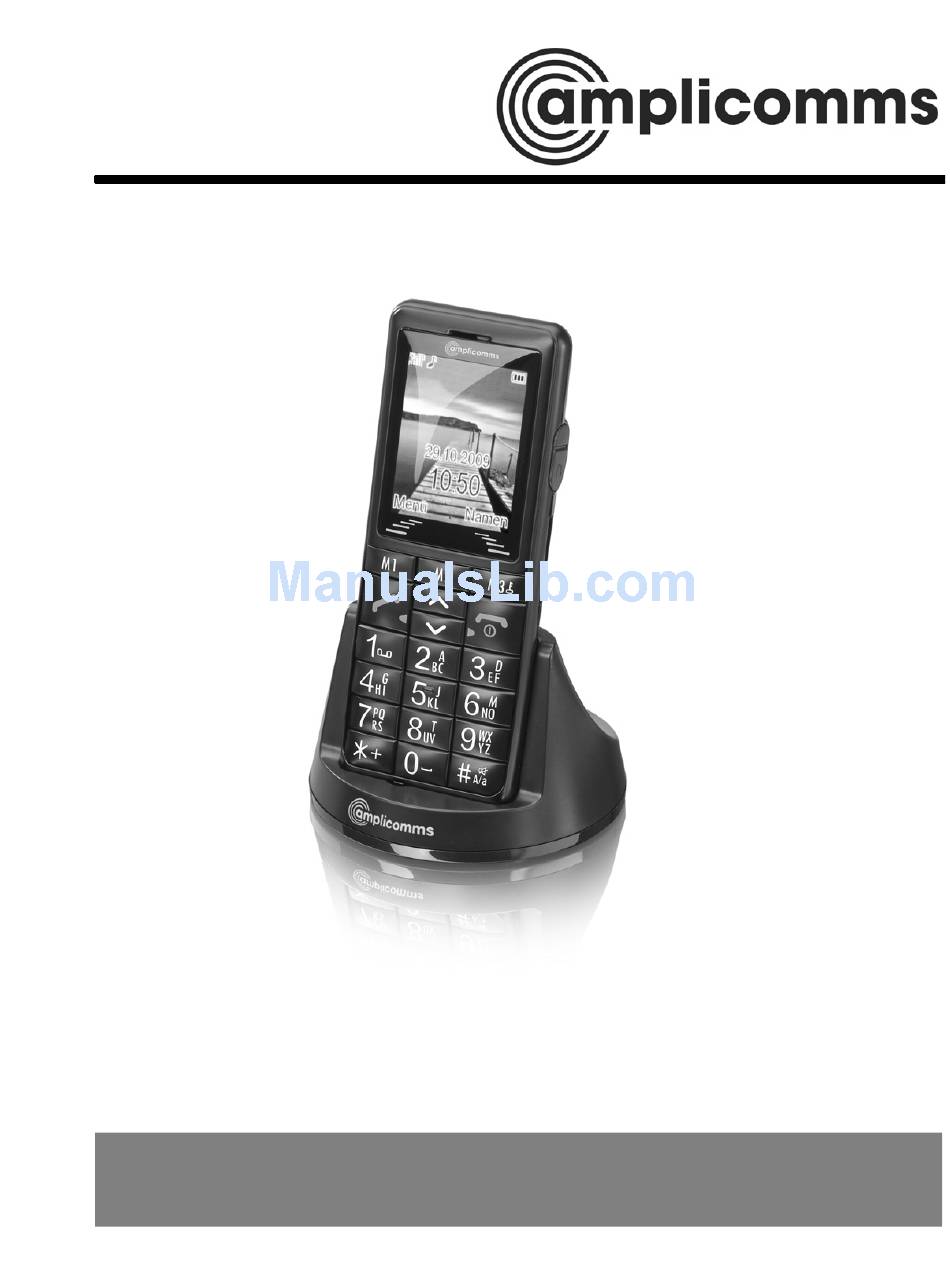

  • Page 1 Mobile Phone Operating Instructions PowerTel M6000...
  • Page 2 HAC Hearing Aid Compatible to M4 / T4 Rating The M6000 Phone has a built in Induction Coil and is hearing aid compatible. To ensure optimum benefit, users with hearing aids may wish to select the T setting on their hearing aids. Exposure to the receiver at full volume for a long period could cause ear damage.

  • Page 3: Table Of Contents

    Contents Quick Start Guide ....At a Glance ....How does it work .

  • Page 4: Quick Start Guide

    Quick Start Guide 1 Quick Start Guide Important: Before you start, please read the safety information on page 104. Quick Glance 1 Earpiece 2 Display 3 One−touch dialling keys / Softkeys 4 On/Off key / End call key 5 Scroll up/down keys 6 Hash key 7 Microphone 8 Star key...
  • Page 5 Quick Start Guide Service−Hotline: 0844 800 6503 (Using an UK landline, at the time of going to print: calls cost 6p for connection charge and then 5p a minute. Mobile costs may vary.)

  • Page 6: Quick Start Guide

    Quick Start Guide What is in the box The box contains: 1 mobile phone 1 power adapter plug 1 li−ion battery 1 operating manual 1 desktop charging unit Installing the SIM card and battery Risk of swallowing small objects! The SIM card can be removed. Small children can swallow them.
  • Page 7 Quick Start Guide If there is already a battery inside, remove it. Slide the SIM card with the golden contacts facing down in the moulded SIM card holder. The SIM card must be located under the metal retaining bar to be in the correct position.

  • Page 8: Charging The Battery

    Quick Start Guide Charging the battery Before starting to charge the battery, check that it has been installed properly. Do not remove the battery while it is being charged. This could damage the phone. When charging the battery for the first time, it should be charged for at least 4 hours.

  • Page 9: Battery Status Warning

    Quick Start Guide Charging via the desktop charging unit Plug the power adapter plug in the mini USB charging socket on the charging unit. Insert the phone in the charging unit to charge it. The display will go blank but even so the battery is still being charged.

  • Page 10: Switching The Mobile Phone On And Off

    Quick Start Guide When the battery charge is low, a corresponding warning message appears in the display. Charge the battery. In cases where the battery charge is extremely low, it is possible that the back−lighting no longer works and certain functions are no longer available. Charge the battery.

  • Page 11: Setting The Display Language

    Quick Start Guide Setting the display language If you want to select a different language please refer to Page 51. The following languages are available: German, English, French, Spanish, Italian, Dutch, Portuguese, Swedish, Danish, Norwegian, Finnish and Turkish. Setting the time and date Refer to Page 50.

  • Page 12: Questions And Answers

    Quick Start Guide Advanced Settings and Functions For more details about setting up your Amplicomms M6000 and other functions follow the descriptions in this user guide. Examples; Set your one−touch dialling M1 / M2 / M3 keys; . Page 48.
  • Page 13 Q − Why doesn’t the Amplicomms mobile phone have a telephone number? A − The telephone number is supplied by the service provider and will be registered onto the SIM card.
  • Page 14 Quick Start Guide A − Yes. The Amplicomms mobile phone is what is termed as an open SIM card phone and so it is not restricted to any particular service provider or mobile phone company. Q − How do I pay for my calls? A −...
  • Page 15 Notes Notes Service−Hotline: 0844 800 6503 (Using an UK landline, at the time of going to print: calls cost 6p for connection charge and then 5p a minute. Mobile costs may vary.)

  • Page 16: At A Glance

    At a Glance 2 At a Glance Keys and Parts 1 Earpiece 2 Display 3 One−touch dialling keys / Softkeys 4 On/Off key / End call key 5 Scroll up/down keys 6 Hash key 7 Microphone 8 Star key 9 Keypad 10 Call key 11 LED 12 Attachment for Lanyard (not supplied)
  • Page 17 At a Glance Service−Hotline: 0844 800 6503 (Using an UK landline, at the time of going to print: calls cost 6p for connection charge and then 5p a minute. Mobile costs may vary.)

  • Page 18: Icon Description

    At a Glance Icons and texts in the handset display Icon Description Displays the battery capacity. Running−through segments, the battery is being charged. Signal strength of the phone’s connection Alarm is activated The key lock function is activated; . Page 36 A roaming call is in progress A headset is connected...

  • Page 19: Sending Text Messages

    At a Glance A new SMS text message has been received; . Page 40 SMS text memory is full; . Page 45 Ringing tone only is activated Vibration alert only is activated / Silent mode activated Vibration alert and ringing tone are activated or first the vibration alert then ringing tone is activated ®...

  • Page 20: How Does It Work

    How does it work 3 How does it work 1 Earpiece The voice of the caller can be heard here when no headset is being worn or the handsfree equipment has not been installed and activated and the device not set to Handsfree mode.
  • Page 21 How does it work 4 „ On/Off key, End call key Switch the mobile phone on and off Cancel the current process End or reject a call Scroll to the right 5 +, Scroll up / down Navigate in the menus 6 # Hash key Switch ringing tone on/off, Switch upper/lower case,...
  • Page 22 How does it work 13 Mini USB charging socket To connect the USB charger 14 Charging contacts The phone is charged via these contacts when in the charging unit 15 î Headset socket (Headset not supplied) Connect a headset. The earpiece, loudspeaker and microphone are deactivated.

  • Page 23: Silent Mode

    How does it work Special Functions Keys Hold # Mode Standby Switched ringer Off / On − Silent Mode Hold 1 A connection is established to your mailbox and you can play messages recorded; . Page 46. Service−Hotline: 0844 800 6503 (Using an UK landline, at the time of going to print: calls cost 6p for connection charge and then 5p a minute.

  • Page 24: Getting Started

    Getting Started 4 Getting Started This chapter provides basic information on using the operating instruction manual and the telephone. Description of operating sequences in the manual Display Description Press the key depicted briefly 2 sec. 7 Press the key depicted for 2 seconds Hold 1 Press and hold down the key...

  • Page 25: Standby Mode

    Getting Started Standby mode All descriptions in this operating manual assume that the mobile phone is in Standby mode. The system switches to Standby mode by pressing the „ key, several times if necessary. It may be necessary to deactivate the key lock function. Energy−save mode When the phone has been in Standby mode for some time, it automatically switches to energy−save...
  • Page 26 Getting Started Navigating in the menu All the functions can be accessed via the various menus. Refer to Menu Structure, . Page 84, for information on how to access each respective function. Menu (^) Open the main menu + / , Select the submenu required OK (^) Open the submenu...

  • Page 27: Add New Contact

    Getting Started Creating phone book entries − example The way in which to navigate through the menus and define settings is explained by means of the example Creating phone book entries. Proceed as in this example for all the settings. Menu Open the main menu + / , Phonebook...

  • Page 28: Entering Text

    Getting Started How to enter text and numbers The keypad is also labelled with letters for the entry of text. The phone provides various methods by which text can be entered. These are used when creating or editing contacts in the phone book, when searching for names in the phone book and when writing SMS text messages.

  • Page 29: Punctuation And Special Characters

    Getting Started Multitap upper case Multitap lower case Numbers To switch between the text and numbers, press the # key. Punctuation and special characters When entering text, press the * key. Punctuation marks and special characters are displayed. Use the + / , keys to select the required character and insert it by pressing the OK softkey.

  • Page 30: Phone Book Set Up

    Phone Book Set Up 5 Phone Book Set Up The phone book in the phone can store up to 500 entries. Always enter the area code with all the phone numbers. When the memory capacity is used up, the corresponding message appears when an attempt is made to store another entry.

  • Page 31: Entering Names

    Phone Book Set Up Entering names The keypad is also labelled with letters for the entry of names. Press the corresponding key the respective number of times to enter letters. Information on ways of entering text; . Page 28. Enter a space Clear Delete ƒ...
  • Page 32 Phone Book Set Up Save? Yes or No Save or reject the entry Modifying, editing, deleting phone book entries Names Open the phone book Search for the required entry as described at the beginning of this chapter. Open the menu The following functions can also be used: Call Dial the entry...

  • Page 33: Phonebook Settings

    Phone Book Set Up The following functions can also be used: Copy all Copy all the entries (SIM or phone) Delete all Delete all the entries (SIM or phone) Execute the functions and then confirm them. Settings Menu Open the main menu + / , Phonebook Select Phonebook"...

  • Page 34: Making And Receiving Calls

    Making and Receiving Calls 6 Making and Receiving Calls Taking a call ƒ {í} Take the call Rejecting a call „ {í} Reject the call Ending a call „ End the call Making a call ë Enter the phone number Clear Delete the last digit if incorrect ƒ...
  • Page 35 Making and Receiving Calls One−touch dialling keys You must have already assigned phone numbers to the one−touch keys; . Page 48. 3 sec. ^, _ or ` Press the key Setting the receiver volume The volume can be adjusted during a call. : or ;...

  • Page 36: Keypad Lock

    Making and Receiving Calls Muting the microphone in the handset The microphone in the handset can be activated and deactivated during a telephone conversation. Options Open the menu + / , Mute Deactivate the microphone (muting function activated) Activate the microphone Keypad lock The keypad lock is intended to prevent functions being triggered unintentionally.

  • Page 37: Options During A Call

    Making and Receiving Calls Options during a call Options Open the Options" menu This menu provides access to functions which can be executed during a call: Hold + / , Hold single call Put the current call on hold When a call is put on hold, the menu option changes to Retrieve single call .

  • Page 38: Call Lists

    Call Lists 7 Call Lists The mobile phone is equipped with a calls list. Your mobile stores the last phone numbers dialled, taken and received but missed. If one of the phone numbers received matches an entry in the phone book, the associated name appears.

  • Page 39: Displaying List Details

    Call Lists Displaying list details Open the calls list. + / , OK Select an entry and display details Options Open the Options menu The following functions are available: Delete Delete the entry Save to Phonebook Save the entry (SIM or phone) Call Dial the entry Send text message Send the text message...

  • Page 40: Sms − Text Messages

    SMS − Text Messages 8 SMS − Text Messages It is possible that not all functions described are supported by every network. Therefore, please contact your local mobile phone provider for details. SMS settings Text messages are distributed via a Service Centre.

  • Page 41: Profile Settings

    SMS − Text Messages Profile settings Navigate to the SMS settings" menu. + / , Profile settings Select the menu and confirm it + / , Profile 1 or Profile 2 Edit Select a profile and confirm it The following functions are available: Profile name Edit the profile name SMSC address...
  • Page 42 SMS − Text Messages General settings Delivery report Select Delivery report − On" to receive the corresponding delivery confirmation report that a message sent has been received. Reply path Select Reply path − On" to send the reply path of your provider with an SMS message.

  • Page 43: Writing An Sms Text

    SMS − Text Messages Writing an SMS text A text message can contain up to 457 characters, including spaces. A standard message contains 160 characters. Additional costs may ensue in the case of messages containing more than 160 characters. Menu Open the main menu + / , Messages Select the menu and confirm it...

  • Page 44: The Message

    SMS − Text Messages Save and send Enter the number or select from the phone book. The SMS text is saved in the Outbox" folder and sent to the number dialled. Save The SMS text is saved in the Outbox" folder. Send to many The message can be sent to several recipients selected...

  • Page 45: Use Number

    SMS − Text Messages Editing stored texts Menu Open the main menu + / , Messages Select the menu and confirm it + / , Inbox / Outbox Select the menu and confirm it + / , OK Select SMS and confirm it Options Open the menu The following functions are available:...

  • Page 46: Voice Mail

    Voice Mail 9 Voice Mail It is possible that not all functions described are supported by every provider. Therefore, please contact your local mobile phone provider for details. They may concern services which are subject to charges. In order to use the Voice Mail" feature, the relevant phone number must be programmed in your mobile phone.
  • Page 47 Voice Mail + / , Name ë Done Edit Open Edit mode, enter the name and confirm it + / , Number ë OK Open Edit mode, edit the number and confirm it Save? , Yes or No Confirm or cancel changes The following function is also available in the Voicemail server"...

  • Page 48: Other Useful Features

    Other Useful Features 10 Other Useful Features One−touch dialling keys It is possible to assign phone numbers to the one−touch dialling keys ^, _ or ` which are then dialled directly by pressing and holding the corresponding key; . Page 35. Each number you want to define as a one−touch dialling number must be stored in the phone book.

  • Page 49: Speed Dialling

    Other Useful Features Delete To delete the number assigned Execute the functions and then confirm them. Speed dialling Phone numbers can be assigned to the keypad 2 to 9. Then hold the corresponding key pressed longer than 3 seconds to dial the corresponding number.

  • Page 50: Time And Date

    Other Useful Features Time and date This menu option can be used to set and change the date and time. Open the main menu: Menu Open the main menu + / , Settings Select the menu and confirm it + / , Phone settings Select the menu and confirm it + / , Time and date Select the menu and confirm it...

  • Page 51: Display Language

    Other Useful Features Date ƒ / „, , Select MM DD YYYY", YYYY MM DD" or DD MM YYYY" and jump to Date separator Date separator ƒ / „, OK Select . " : " / or − " and confirm it Language This menu option can be used to set and change the...
  • Page 52 Other Useful Features Calendar This menu option opens the calendar. You can select other days. Use the + / , and ƒ / „ keys to navigate. Open the Calendar: Menu Open the main menu + / , Extra Select the menu and confirm it + / , Calendar Select the menu and confirm it Alarm...
  • Page 53 Other Useful Features 00:00 ë, , Enter hours:minutes and jump to Repeat Repeat ƒ / „, , Select Once", Everyday" or Custom" and jump to Snooze If you select Custom: SMTWTFS ƒ / „ Select a day S = Sunday, M = Monday, T = Tuesday, W = Wednesday, T = Thursday, F = Friday, S = Saturday On or Off Select whether the alarm is...
  • Page 54 Other Useful Features Calculator This feature provides a simple calculator feature with which to solve simple basic calculations. Use the + and , keys to select the required arithmetic operation (+, −, x, ÷). Use the # key to set a decimal point. Use the * key to change the sign (±).

  • Page 55: Tone Control

    Other Useful Features Tone Control Users of hearing aids and non users will appreciate this unique feature. The Phone is delivered with the Tone Control set in the normal position and there are two additional options available; Low Frequency setting High Frequency setting Menu Open the main menu...

  • Page 56: Network Settings

    Other Useful Features Network settings Network selection: This menu can be used to select mobile telecommunication networks other than your own mobile network provider. However, the corresponding agreements must have been concluded. Preferences: You can select and edit the mobile telecommunication networks prescribed on the SIM card.

  • Page 57: Security Settings

    Other Useful Features Security settings This menu is used to define which functions on the phone or SIM card should be protected by a password/PIN. The PIN and password can be changed. PIN and PIN2 are supplied together with the SIM card.
  • Page 58 Other Useful Features Phone lock The default setting for the password is 1234. If this lock is active, you must first enter the password for the phone lock after switching the mobile phone on and then enter the PIN. Change password Change the passwords/PIN Refer to Menu Structure;...

  • Page 59: Display Settings

    Other Useful Features PIN & PIN2 codes The PIN (Personal Identity Number) and PIN2 codes are 4 to 8−digit numbers. The PIN and PIN2 codes are given to you, together with the SIM card, by your network provider. PUK & PUK2 codes The PUK (Personal Unblocking Key) and PUK2 codes are 4 to 8−digit numbers.

  • Page 60: Ringer Profile Settings

    Other Useful Features + / , Display characteristics Select the menu and confirm it Select Wallpaper To display a wallpaper Show date and time To display the date and time LCD backlight To set the brightness and lighting duration of the back−lighting Themes To display a colour scheme...
  • Page 61 Other Useful Features melodies for various alert ringing signals Volume To select specific volumes for the various alert ringing signals Exposure to the receiver at full volume for a long period could cause ear damage. Alert type To select whether you are alerted of incoming calls via a ringing tone or vibration Ring type...
  • Page 62 Other Useful Features + / , Options + / , Customize Select your profile and open the Options menu + / , Tone settings Select the menu and confirm it + / , Incoming call Select the menu and confirm it + / , MIDI 1 Select the ringer and confirm it...

  • Page 63: Dedicated Function Keys

    Other Useful Features + / , Settings Select the menu and confirm it + / , Security settings Select the menu and confirm it + / , Auto keypad lock Select the menu and confirm it Dedicated function keys You can define which menu or function should be opened on pressing the + / , keys in Standby mode.

  • Page 64: Call Settings

    Other Useful Features Call Settings It is possible that not all functions described are supported by every provider. Therefore, please contact your local mobile phone provider for details. They may concern services which are subject to charges. Caller ID This function is used to activate/deactivate transmission of the phone number, with which you are making the call, with the call.

  • Page 65: Call Waiting

    Other Useful Features Call waiting This function issues an audible signal to inform you that another call has been received while the current call is in progress. Menu Open the main menu + / , Call centre Select the menu and confirm it + / , Call settings Select the menu and confirm it + / , Call waiting...

  • Page 66: Forwarding Calls

    Other Useful Features Forwarding calls The following functions enable incoming calls to be transferred to other phone numbers. Menu Open the main menu + / , Call centre Select the menu and confirm it + / , Call settings Select the menu and confirm it + / , Call divert Select the menu and confirm it + / , Cancel all diverts...
  • Page 67 Other Useful Features and then select Activate OK ë or Search To new number Enter the number or select it from the phone book. To voice mail The call forwarding function is then active. Deactivate The corresponding call forwarding function is deactivated OK Display the current setting Query status...

  • Page 68: Call Barring Password

    Other Useful Features Call barring The following function is used to restrict calls which can be received and made. Menu Open the main menu + / , Call centre Select the menu and confirm it + / , Call settings Select the menu and confirm it + / , Call barring Select the menu and confirm it...

  • Page 69: Confirm New Password

    Other Useful Features Cancel all Call barring password ë Change barring password Old password ë New password ë Confirm new password ë The default password is 1234. Automatic redialling When this function is activated, redialling is initiated automatically if the number dialled is engaged". Menu Open the main menu + / , Call centre...

  • Page 70: Broadcast Messages

    Other Useful Features Broadcast messages You mobile phone supports receiving broadcast messages. You receive information on broadcast messages, charge rates, data and offers from your SIM card service provider. Menu Open the main menu + / , Messages Select the menu and confirm it + / , Broadcast message Select the menu and confirm it Refer to Menu Structure;...

  • Page 71: Default Settings

    Other Useful Features Default settings The mobile phone can be reset to its default (factory) settings. Menu Open the main menu + / , Settings Select the menu and confirm it + / , Security settings Select the menu and confirm it + / , Restore factory settings Select the menu and confirm it The default password is 1234.

  • Page 72: Bluetooth

    Bluetooth 11 Bluetooth How to turn Bluetooth On & Off Menu Open the main menu + / , Extra Select the menu and confirm it + / , Bluetooth Select the menu and confirm it + / , Power ® Turn Bluetooth + / , Power ®...
  • Page 73 Bluetooth + / , Bluetooth Select the menu and confirm it + / , Inquiry audio device Select the menu and confirm it Please refer to the manual supplied with your ® Bluetooth headset for instructions on how to ® set the Bluetooth headset to pairing mode.

  • Page 74: Emergency Call Function

    Emergency Call Function 12 Emergency Call Function This mobile phone is equipped with a convenient emergency call function. Up to 5 phone numbers can be entered for emergency calls. For this function to work correctly it is necessary to record your personal message.

  • Page 75: Sending An Emergency Call

    Emergency Call Function + / , Options Select a memory location and open the options + / , Change Select the function and confirm it + / , OK Select entry and confirm it The following functions can also be used: View View the entry Delete...

  • Page 76: Recording An Sos Message

    Emergency Call Function + / , Set 5 numbers or Set call centre or Off Select the mode and confirm it Setting up a call centre number Proceed as follows to set up a number. Menu Open the main menu + / , Settings Select the menu and confirm it + / , Help Setting...
  • Page 77 Emergency Call Function This is ... your name ... I need assistance − please press zero to accept my call. Menu Open the main menu + / , Settings Select the menu and confirm it + / , Help Setting Select the menu and confirm it + / , Record SOS message Select the menu and confirm it...
  • Page 78 Emergency Call Function Fall Down Alarm − Please read carefully The innovative and sophisticated sensor built into your telephone will function reliably, provided your telephone is always hung round your neck with a lanyard which can be purchased in any telephone shop.
  • Page 79 Emergency Call Function + / , Help Setting Select the menu and confirm it + / , Man down SOS Select the menu and confirm it + / , Normal or Sensitive Select the sensitivity and activate the function + / , Off OK Deactivate the function Emergency Call Function, Examples The emergency call function is explained here...
  • Page 80 Emergency Call Function + / , Help Setting Select the menu and confirm it + / , SOS setting Select the menu and confirm it + / , Set call centre number Select the menu and confirm it ë OK Edit the number and confirm it + / , SOS mode setting Select the menu and confirm it...

  • Page 81: Sos Setting

    Emergency Call Function Menu Open the main menu + / , Settings Select the menu and confirm it + / , Help Setting Select the menu and confirm it + / , SOS setting Select the menu and confirm it + / , Set SOS numbers Select the menu and confirm it + / ,...

  • Page 82: Starting The Emergency Call

    Emergency Call Function In the case of an emergency call: The phone dials the 1st emergency call number. When a connection is established, the SOS message you recorded is sent. The connection then remains active for approx. 10 seconds before the next number is dialled.

  • Page 83: Services

    Services 13 Services This menu contains the SIM Application Toolkit (commonly referred to as STK) of your mobile phone provider. The content and functions available vary from provider to provider and are dependent on the SIM card used. SIM Application Toolkit (STK) is a GSM system standard which enables the SIM to initiate actions which can be used for various value−added services.

  • Page 84: Menu Structure

    Menu Structure 14 Menu Structure Main menu Pressing the ^ = Menu key to open the main menu. Then use the + / , keys to select a menu option and confirm the selection. For further information on the menu and operation, . Chapter Messages Write message ë...

  • Page 85: Copy To Phone

    Menu Structure Forward Copy to phone / Copy to SIM Move to phone / Move to SIM Use number Outbox Options Send Edit Delete Copy to phone / Copy to SIM Move to phone / Move to SIM Use number Templates SMS settings Profile settings...

  • Page 86: Reply Path

    Menu Structure Reply path Memory status Preferred storage Phone Voicemail server Broadcast message Receive mode Read message Languages Channel settings Service−Hotline: 0844 800 6503 (Using an UK landline, at the time of going to print: calls cost 6p for connection charge and then 5p a minute. Mobile costs may vary.)

  • Page 87: Send Text Message

    Menu Structure Call centre Call lists Missed calls Options Delete Save to Phonebook Call Send text message Dialled calls see Missed calls Received calls see Missed calls Delete call lists Missed calls Dialled calls Received calls Delete all Call timers Last call Service−Hotline: 0844 800 6503 (Using an UK landline, at the time of going to print: calls cost 6p for connection charge and then 5p a minute.

  • Page 88: Reset All

    Menu Structure Dialled calls Received calls Reset all Call cost Last call cost Total cost Reset cost Max cost Price per unit Call settings Caller ID Set by network Hide ID Send ID Call waiting Activate Deactivate Query status Call divert Divert all voice calls Service−Hotline: 0844 800 6503 (Using an UK landline, at the time of going to print: calls cost 6p for connection charge and then 5p a minute.

  • Page 89: Call Barring

    Menu Structure Divert if unreachable Divert if no answer Divert if busy Divert all data calls Cancel all diverts Call barring Outgoing calls All calls International calls International calls ex- cept to home PLMN Incoming calls All calls When roaming Activate all Cancel all Change barring password...

  • Page 90: Copy All

    Menu Structure Phonebook Add new contact To SIM To phone Set M1/M2/M3 M1 call number M2 call number M3 call number Copy To phone To SIM Copy all From SIM From phone Delete Delete all From SIM From phone Service−Hotline: 0844 800 6503 (Using an UK landline, at the time of going to print: calls cost 6p for connection charge and then 5p a minute.

  • Page 91: Speed Dial

    Menu Structure Speed dial Status Set number Phonebook settings Extra numbers Owner number Service dialing number SOS number Memory status Preferred storage Phone Service−Hotline: 0844 800 6503 (Using an UK landline, at the time of going to print: calls cost 6p for connection charge and then 5p a minute. Mobile costs may vary.)

  • Page 92: Display Characteristics

    Menu Structure Settings Phone settings Time and date Set time/date Set format Schedule power on/off Language Display characteristics Wallpaper Show date and time LCD backlight Brightness Time Themes Dedicated key Down Service−Hotline: 0844 800 6503 (Using an UK landline, at the time of going to print: calls cost 6p for connection charge and then 5p a minute.

  • Page 93: Network Selection

    Menu Structure Tone control Normal Low frequency High frequency Help Setting SOS setting SOS mode setting Set 5 numbers Set call centre Set SOS numbers Set call centre number Man down SOS Normal Sensitive Record SOS message Network settings Network selection New search Service−Hotline: 0844 800 6503 (Using an UK landline, at the time of going to print: calls cost 6p for connection charge and then 5p a minute.

  • Page 94: Select Network

    Menu Structure Select network Selection mode Preferences Security settings SIM lock Phone lock Auto keypad lock Fixed dial Mode Fixed dial list Barred dial Mode Barred dial list Change password PIN2 Phone password Restore factory settings Service−Hotline: 0844 800 6503 (Using an UK landline, at the time of going to print: calls cost 6p for connection charge and then 5p a minute.

  • Page 95: User Profiles

    Menu Structure User profiles General Activate Customize Tone settings Incoming call Alarm Power on Power off Message Keypad Volume Ringtone Key tone Alert type Ring only Vib. only Vib. and ring Vib. then ring Service−Hotline: 0844 800 6503 (Using an UK landline, at the time of going to print: calls cost 6p for connection charge and then 5p a minute.

  • Page 96: Ring Type

    Menu Structure Ring type Single Repeat Ascending Extra tone Warning Error Camp on Connect Answer mode Any key Meeting Outdoor Indoor see General Headset Bluetooth Service−Hotline: 0844 800 6503 (Using an UK landline, at the time of going to print: calls cost 6p for connection charge and then 5p a minute.
  • Page 97 Menu Structure Extra Calendar Alarm Calculator Bluetooth Power Inquiry audio device My device Active devices About Services . Page 83 (provider−dependent menu) Service−Hotline: 0844 800 6503 (Using an UK landline, at the time of going to print: calls cost 6p for connection charge and then 5p a minute. Mobile costs may vary.)

  • Page 98: Trouble Shooting

    Trouble Shooting 15 Trouble Shooting Service hotline Should problems arise with the telephone, please refer to the following information first. In the event of technical problems, please contact out service hotline under tel. 0844 800 6503 (Using an UK landli- ne, at the time of going to print: calls cost 6p for con- nection charge and then 5p a minute.
  • Page 99 Trouble Shooting No signal quality is − No network displayed. connection. The mobile phone is in a location where there is no network service. Move to a different location or contact your service provider. Keypad does not − The operating speed of function or only the display is reduced functions very slowly.

  • Page 100: Tips On The Battery

    Trouble Shooting The battery cannot be − Battery is defect. charged or is empty − Place the phone within a short time. correctly in the charging unit or connect the charging unit properly. Clean the contact surfaces on the mobile phone and charging unit with a soft, dry cloth.

  • Page 101: Technical Properties

    Technical Properties 16 Technical Properties Technical data Feature Value Standard 900, 1800, 1900 MHz Triband Dimensions 50.5 x 134 x 17 mm (W x H x D) Weight < 100 g incl. battery Power supply Input: 100−240 V, 50−60 Hz, 0.2 A Output: Mini−USB 5 V, 500 mA Battery...

  • Page 102: Declaration Of Conformity

    Conformity, please refer to the free download available on our web site www.amplicomms.eu. Service−Hotline: 0844 800 6503 (Using an UK landline, at the time of going to print: calls cost 6p for connection charge and then 5p a minute. Mobile costs may vary.)

  • Page 103: Sar Information

    Technical Properties SAR Information Information on radio frequency emissions and specific absorption rates (SAR = Specific Absorption Rate). All the applicable safety standards related to radio frequency emissions were implemented during the development of this mobile phone. The limit values are based on scientific directives and contain a safety margin in order to guarantee the safety of all persons regardless of age and state of health.

  • Page 104: Safety Information

    Safety Information 17 Safety Information Please read this section carefully. Risk of suffocation! Keep packaging materials and protective foils out of reach of children. Intended use This mobile phone is designed for use when connected to a mobile phone network. Any other use is considered unintended use.

  • Page 105: General Information

    Safety Information General information Prevent exposure to smoke, dust, vibration, chemicals, moisture, heat and direct sunlight. The phone is not waterproof; therefore, keep it dry. Only use original accessories and batteries. Never attempt to connect other products. If you want to connect the phone to another device, read the manual supplied with that device with regard to any detailed safety information.
  • Page 106 Safety Information Only use the phone while driving or riding a transport vehicle in road traffic when using the approved handsfree equipment and appropriately positioned holders. Ensure that no safety−related functions are interfered with when operating the phone. It is essential to observe the applicable national laws and regulations.

  • Page 107: Power Adapter Plug

    Safety Information Power adapter plug Attention: Only use the power adapter plug supplied because other power supplies could damage the phone. Ensure access to the power adapter plug is not obstructed by furniture or such. The power adapter plug supplied fulfils the ecodesign requirements of the European Community (Directive 2005/32/EC).
  • Page 108 Safety Information Disposal In order to dispose of your device, take it to a collection point provided by your local public waste authorities (e.g. recycling centre). According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container.

  • Page 109: Maintenance / Guarantee

    Clean the housing surfaces with a soft, fluff−free cloth. Do not use any cleaning agents or solvents. Guarantee AMPLICOMMS equipment is produced and tested according to the latest production methods. The implementation of carefully chosen materials and highly developed technologies ensure trouble−free functioning and a long service life.
  • Page 110 If your device shows signs of defect during the period of guarantee, please return it to the sales outlet in which you purchased the AMPLICOMMS device together with the purchase receipt. All claims under the terms of guarantee in accordance with this agreement can only be asserted at the sales outlet.

  • Page 111: Index

    Index 19 Index Alarm, 52 Date, 11, 50 At a Glance, 4, 16 Declaration of Conformity, 102 Automatic key lock, 62 Dedicated function keys, 63 Automatic redialling, 69 Default settings, 71, 102 Deleting phone book entries, 32 Dialling, 34 Battery charge status, 8 Display, 18 Battery status warning, 9 Display icons, 18...
  • Page 112 Index Editing phone book entries, 32 Icons, 18 Emergency call function, 74 Intended use, 104 Emergency call function, examples, 79 Keypad lock, 36 Emergency call Keys and Parts, 16 to several numbers, 80 Emergency calls to an Language, 51 emergency call centre, 79 Ending a call, 11, 34 Loudest Ringer, 11 Low Frequency, 55...
  • Page 113 Index On−hook, 34 Receiver volume, 35 One−touch dialling, 35 Recording an SOS message, 76 One−touch dialling keys, 48 Redialling, 34 Other Useful Features, 48 Reject, 11, 34 Rejecting a call, 11, 34 Ring tone, 60 Package contents, 6 Ringer Profile settings, 60 Personal PIN, 58 Phone Book, 30 Phone book, 27, 34, 37...
  • Page 114 Index Safety information, 104 Taking a call, 11, 34 SAR Information, 103 Talk time, 35 Saving phone book entries, 27 Technical data, 101 Security settings, 57 Time, 11, 50 Sending an emergency call, 75 Tips on the battery, 100 Service−Hotline, 98 Tone Control, 55 Services, 83 Tone settings, 60...
  • Page 115 Notes Notes...
  • Page 116 Important Notes on the Guarantee The period of guarantee for the AMPLICOMMS product begins on the date of purchase. Rights to claims under the terms of guarantee relate to deficiencies resulting from material or production faults. Rights to claims under the terms of guarantee are annulled following intervention by the purchaser or third parties.
