Instruction Manual

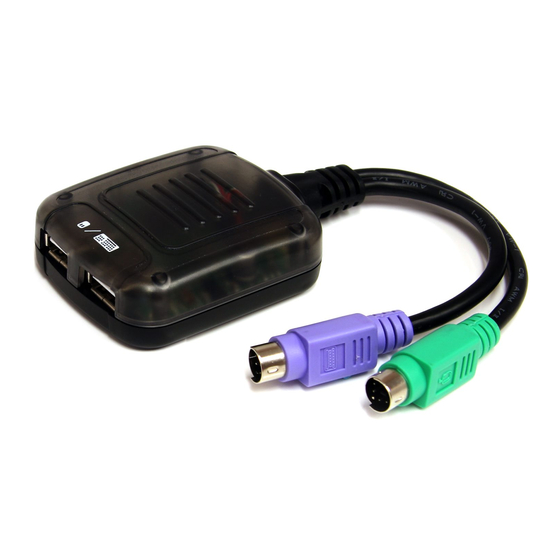

PS/2 to USB Keyboard and Mouse Adapter
PS22USB
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Packaging Contents
• 1 x PS/2 to USB adapter
• 1 x Installation Guide
System Requirements
• PS/2 keyboard and mouse ports on host computer
• Wired USB keyboard and/or mouse
*Combo 2-in-1 wired USB keyboard/mouse supported
Specifications
Host Interface
Connectors
LEDs
Enclosure Material
Power Adapter
Operating Temperature
Storage Temperature
Humidity
Dimensions
(LxWxH)
Weight
For the most up-to-date information, please visit: www.startech.com
PS/2
2 x USB type A female
2 x 6-pin mini-DIN male
2 x Power (blue)
Plastic
Self Powered
0°C ~ 40°C (32°F ~ 104°F)
-20°C ~ 60°C (4°F ~ 140°F)
0 ~ 90% RH
67.0mm x 55.0mm x 22.0mm
200g
Installation
1. Connect the USB keyboard and/or mouse to the USB ports on the
adapter. They can be plugged into either port.
2. Make sure the computer is turned off.
3. Connect the adapter to the keyboard/mouse PS/2 ports on the
computer system.
4. Power on the computer system. The two Power LEDs on the
adapter should light up solid.
5. The USB keyboard/mouse should be recognized and function as a
regular PS/2 keyboard/mouse.
*actual product may vary from photos
Manual Revision: 01/30/2012
Advertisement
Related Manuals for StarTech.com PS22USB
Summary of Contents for StarTech.com PS22USB
-
Page 1: Packaging Contents
3. Connect the adapter to the keyboard/mouse PS/2 ports on the LEDs 2 x Power (blue) computer system. 4. Power on the computer system. The two Power LEDs on the Plastic Enclosure Material adapter should light up solid. Power Adapter Self Powered 5. The USB keyboard/mouse should be recognized and function as a Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) regular PS/2 keyboard/mouse. Storage Temperature -20°C ~ 60°C (4°F ~ 140°F) Humidity 0 ~ 90% RH Dimensions 67.0mm x 55.0mm x 22.0mm (LxWxH) Weight 200g For the most up-to-date information, please visit: www.startech.com Manual Revision: 01/30/2012... -
Page 2: Fcc Compliance Statement
• Consult the dealer or an experienced radio/TV technician for help. Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.
