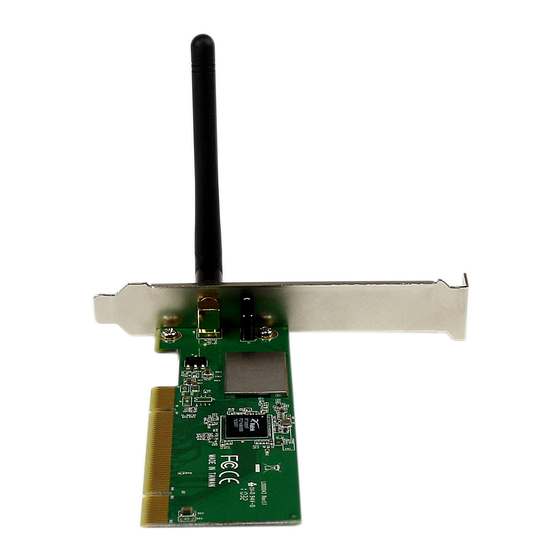

PCI Wireless N 150Mbps Network Adapter
802.11 b/g/n - 1T1R
PCI150WN1X1
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 10/24/2013
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com PCI150WN1X1
Summary of Contents for StarTech.com PCI150WN1X1
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 10/24/2013...
- Page 2 Cet équipement doit être installé et mis en marche à une distance minimale de 20 cm qui sépare l’élément rayonnant de votre corps. L’émetteur ne doit ni être utilisé avec une autre antenne ou un autre émetteur ni se trouver à leur proximité. IC: 11232A-PCI150WN1X1 Instruction Manual...
- Page 3 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 4: Table Of Contents
Table of Contents Introduction ....................2 Packaging Contents ..........................2 System Requirements ..........................2 Installation .....................2 Hardware Installation ..........................2 Driver Installation ............................3 Verifying Installation ................4 Operation ....................5 Windows ............................... 5 Ralink Utility ..............................5 Specifications ..................6 Technical Support ..................7 Warranty Information ................7 Instruction Manual... -
Page 5: Introduction
WARNING! PCI cards, like all computer equipment, can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching your PCI card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. -
Page 6: Driver Installation
4. Insert the card into the open PCI slot and fasten the bracket to the rear of the case. NOTE: If installing the card into a low profile desktop system, replacing the preinstalled standard profile bracket with the included low profile (half height) installation bracket may be necessary. -
Page 7: Verifying Installation
4. Follow the on-screen instructions to complete the installation. Verifying Installation Windows 1. Open the Device Manager by right-clicking on Computer, and then select Manage. In the new Computer Management window, select Device Manager from the left window panel (For Windows 8, open the Control Panel and select Device Manager). 2. -
Page 8: Operation
Operation Connecting to a wireless network is done through either the Windows wireless configuration utilities, or the optional Ralink utility. You must know the name of the wireless network (SSID), the type of security it is using (if any) and its associated password to connect to a wireless network. -
Page 9: Specifications
Specifications Host Interface PCI (32-bit, 3.3/5V) Form Factor Full Profile (LP Bracket incl.) Chipset Ralink - RT3060F External Connectors 1 x RP-SMA female Supported Standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Antenna Configuration 1x1:1(TxR:S) Wireless Frequencies 2.4 GHz~2.484 GHz Supported Security Schemes WEP, WPA, WPA2, TKIP/AES Operating Temperature 0°C ~ 55°C (32°F ~ 131°F) -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
