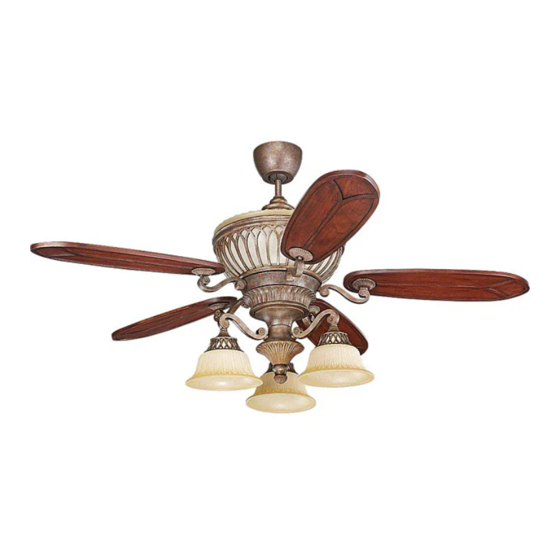

Summary of Contents for Monte Carlo Fan Company 5SCR60BR3-L
- Page 1 Owner’s Manual Ceiling Fan Installation Instructions For 5SCR60BR3-L Fan READ AND SAVE THESE INSTRUCTIONS Total fan weigh with light...
-
Page 2: Installation
Installation AFETY WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: READ AND SAVE THESE INSTRUCTIONS Installation work and electrical wiring must be done by qualified person(s) in accordance with applicable codes and standards (ANSI/NFPA 70- 1999), including fire-rated construction. - Page 3 Secure mounting neck to the mounting plate Loosen set screws that holds ball. Lift mounting neck to mounting Plate and align with four screws to become a complete mount- screws. ing bracket. Loosen lock nuts and screws on yoke Slide ball down and remove pin save Remove keeper from cross pin and till you can not feel screw on inside pin for later.
- Page 4 Place ball on downrod. Replace pin Install yoke cover over downrod. Install canopy cover over downrod. removed earlier and pull ball up so that the pin fits in the notches in the ball. Remote Transmitter Dip swtiches Remote Receiver Dip switches Set dip switches on the Remote T ransmitter and Remote Receiver to the same settings.
- Page 5 Loosen 2 screws and remove 1 Attach blades to motor and tighten Twist lower cover plate into place by screw. Save screw removed. screws securely using screws, washers twisting in direction of arrow. and motor pads in hardware packs. Replace 1 screw removed and tighten all 3 screws securely.
- Page 6 Install switch housing to light kit. Raise decorative cover and twist Drop decorative cover ring over light Install lockwasher and hex nut pro- clockwise until tight. kit. vided and tighten securely. Tighten switch housing screws. Plug connector from fan to connector Plug white wire from fan to white from switch housing.
- Page 7 WALL MOUNT INSTALL Attach front cover to wall control Install wall control unit to outlet box with screws provided. Snap battery using machine screws provided. cover in place.
-
Page 8: Fan Speed
Remote Control Transmitter Features: FAN REVERSE LED LIGHT (Press once to change direction of MEDIUM SPEED the fan)Fanmust be running to reverse. LOW SPEED HIGH SPEED FAN OFF SETTING UPLIGHT ON/OFF SET- (Turns fan off only) TING AND DIMMER (Press and hold to dim light infinitively) DOWNLIGHT ON/OFF SETTING AND DIMMER... -
Page 9: Troubleshooting
Trouble Shooting If you have difficulty operating your new ceiling fan, it may be the result of incorrect assembly, installation, or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please check this Trouble Shooting Chart. If a problem cannot be remedied, or you are experiencing difficulty in installation, please call our Customer Service Center at the number printed on your parts list insert sheet. - Page 10 6/21/06 REV.0 New made from 5GMR manual...
