Installation of new disposer (continued):
22

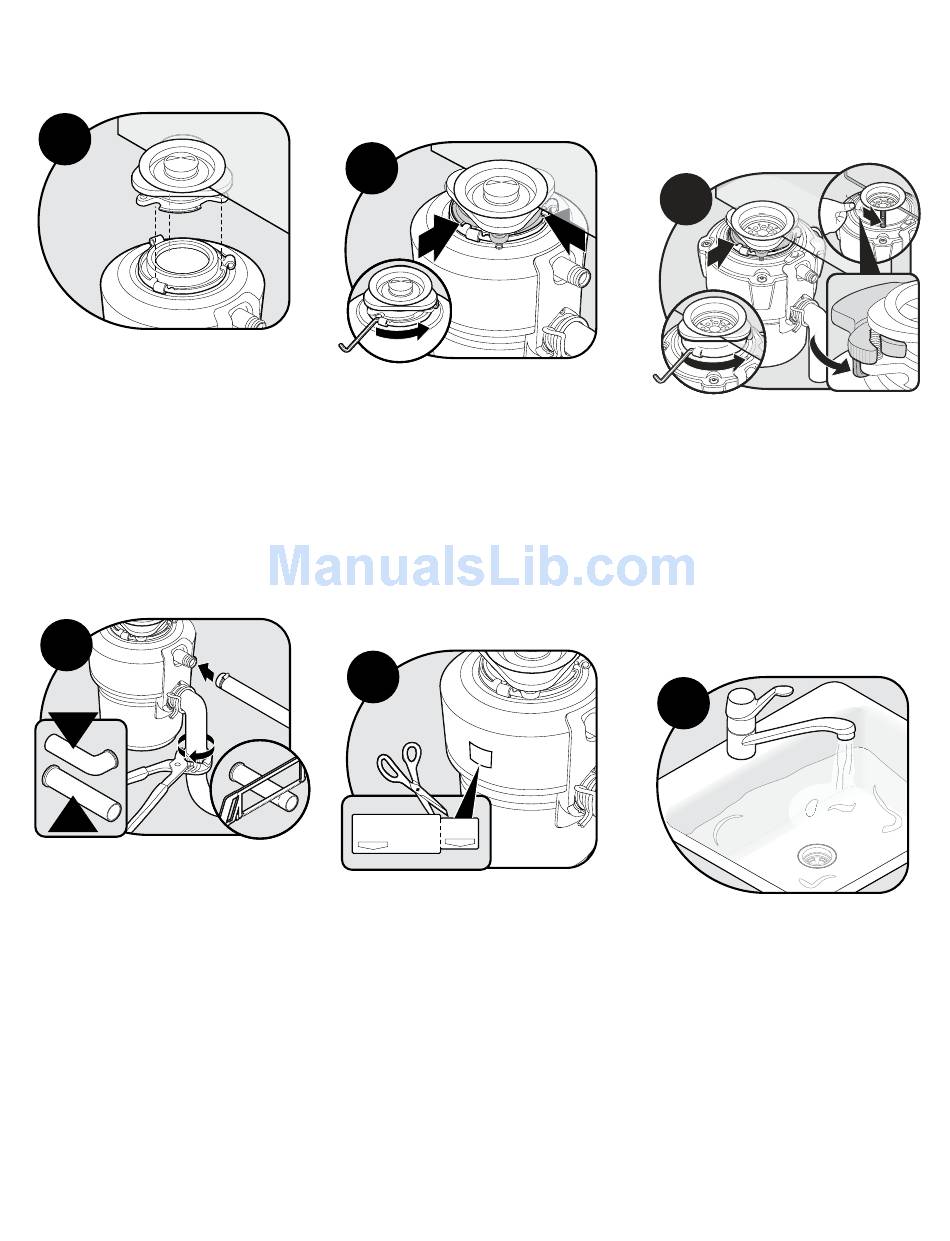

Hang disposer by aligning 3
mounting tabs with slide-up
ramps on mounting ring.
24
M
N
You may need to trim tube
for proper fit. Reconnect
plumbing (and dishwasher
connection if used). Make
sure Anti-Vibration Tailpipe
Mount is straight.
23
Turn mounting ring until all
3 mounting tabs lock over
the ridges on the slide-up
ramps.
25
Model Evolution
18005585700
Model Evolution
05081500028
AMPS 8.1 HP 3/4
05081500028
Volts 120 Hz 60 1PH
18005585700
InSinkErator
Emerson Elcetric
Racine, WI 53406
Detach removable portion
of spec label and place on a
visible location.
7
23a
1
(COVER CONTROL MODEL ONLY)
Turn mounting ring until all 3
mounting tabs lock over the
ridges on the slide-up ramps.
Attach magnetic cover con-
trol switch to the screws.
Make sure plastic guides go
UNDER mounting ring.
26
Insert Quiet Collar™ Sink
Baffle into sink opening. Fill
sink with water, then test
for leaks.
2
