InSinkErator Evolution Compact Manual Reset

Evolution
Series
®
Grind More. Hear Less.
Dimensions
8 "
1 /
1 2
5 3
/ 4 "
* Add 1/2" when stainless steel sinks are used.
Job Specifications
H712-10L-64-02
®
6 " *
4 "
Food Waste Disposers

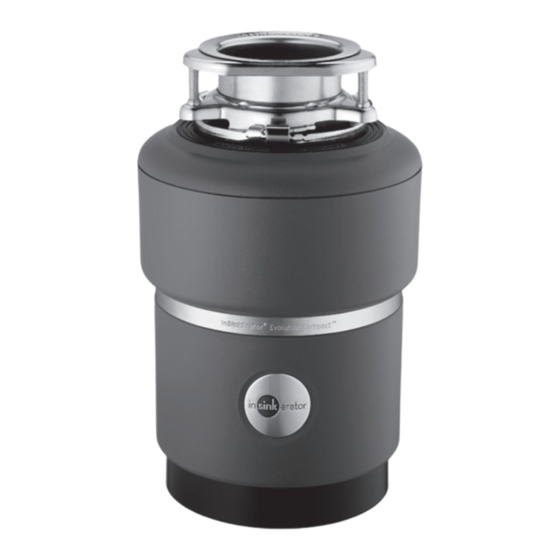

Evolution
Compact
®
Perfect for small households or
restricted cabinet space.
Submittal Sheet
Perfect for small households or
restricted cabinet space.
• SoundSeal ® technology reduces
disposer noise by at least
30% vs. standard disposers.
• MultiGrind ® technology delivers
2 stages of grind vs. 1 stage
in standard disposer.
• Includes Quiet Collar ® sound
reducing sink baffle.
Sample Specification
Food Waste Disposer(s) shall be
InSinkErator Model Evolution Compact
with MultiGrind and SoundSeal
®
technologies, 3/4 HP motor, Stainless
Steel Grind components.
Warranty:
4- Year parts and in-home service.
* The complete InSinkErator warranty is included in the Care & Use
Booklet packed with each unit.
Food waste disposers can provide an environmentally responsible alternative to
transporting food waste to landfills. And they can help reduce greenhouse gas
emissions. At capable wastewater treatment plants, food waste can be recycled
to produce renewable energy. Additionally, capable wastewater treatment plants
can process food waste into fertilizer. (Check the plant in your area.)
Hecho en los EE.UU.
1-800-558-5700
www.insinkerator.com
Printed in U.S.A. © 2010 InSinkErator, InSinkErator is a division of Emerson Electric Co. All Rights Reserved.

Specifications

Type of Feed Continuous
On/Off Control Wall Switch
Motor Single Phase
HP 3/4
Volts 120
HZ 60
RPM 1725
Amp. (Avg. Load) 8.1
Time Rating Intermittent
Lubrication Permanently
Lubricated Upper &
Lower Bearings
Shipping
Weight (Approx.) 19.5 lbs.
Unit Finish Black Enamel
Gray
Overall Height 12-1/8"
SoundSeal Anti-Vibration Mount
Technology
Anti-Vibration
Tailpipe Mount
Quiet Collar
SoundLimiter
MultiGrind GrindShear Ring
Technology
Grind Chamber
Capacity 34.6 oz.
®
Motor Manual Reset
®
Protection Overload
Average Approx. 1 Gallon Per
Water Usage Person Per Day
Average
Electrical Usage 3-4 KWh Per Year
Drain 1-1/2" Anti-Vibration
Connection (Hose Clamp)
Dishwasher
Drain Connection Yes
The Emerson logo is a trademark and service mark of
Emerson Electric Co. The mounting collar configuration
is a trademark of Emerson Electric Co.
InSinkErator may make improvements and/or changes
in the specifications at any time, in its sole discretion,
without notice or obligation and further reserves the
right to change or discontinue models.
®
™
® Sink Baffle
Insulation
™
®
