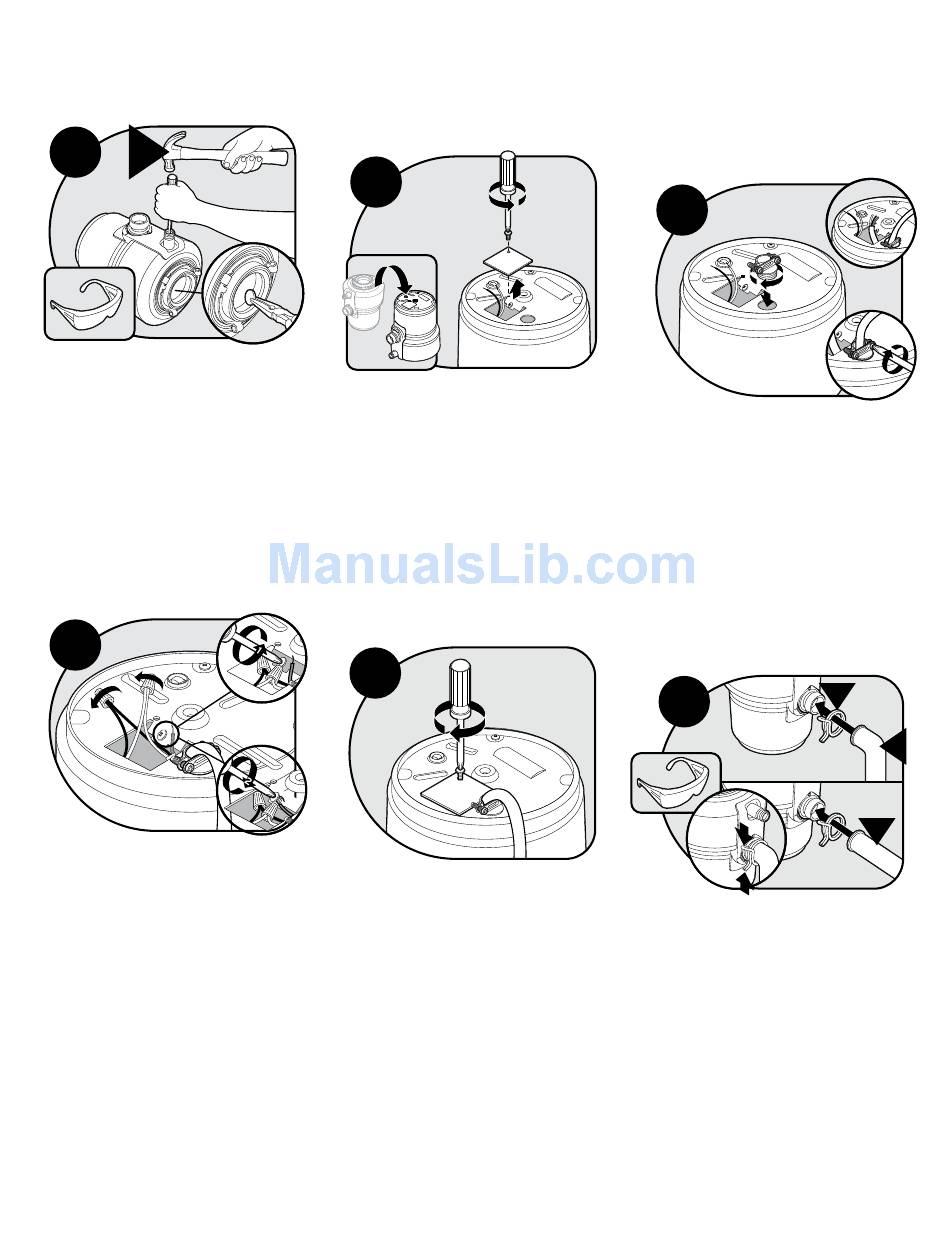

Installation of new disposer (continued):
!
16
*
*CAUTION: DISHWASHER
CONNECTION ONLY Knock out
drain plug and remove plug from
inside of disposer.
19
*WARNING:
SHOCK HAZARD
Connect white to white
and black to black or red
with wire nuts (not includ-
ed); ground wire to green
grounding screw. Unit must
be grounded for safe and
proper installation.
17
*WARNING: SHOCK HAZARD.
Turn disposer over and remove
electrical cover plate. Pull
out wires. DO NOT REMOVE
CARDBOARD SHIELD.
20
Push wires into disposer
(do not displace cardboard
shield) and replace electri-
cal cover plate.
6
18
*WARNING: SHOCK HAZARD.
With electrical supply turned
off, insert cable connector (not
included) and run electrical cable
through access hole on bottom of
disposer. Tighten cable connector.
L
21
Place tube (M or N) into Anti-
Vibration Tailpipe Mount.
Use provided tubes for best
results. Secure with hose
clamp (L).
*CAUTION:
USE ONLY INSINKERATOR
SUPPLIED HOSE CLAMP.
NON-APPROVED CLAMPS
WILL VOID WARRANTY AS
THEY WILL DAMAGE THE
ANTI-VIBRATION TAILPIPE
MOUNT
M
N
