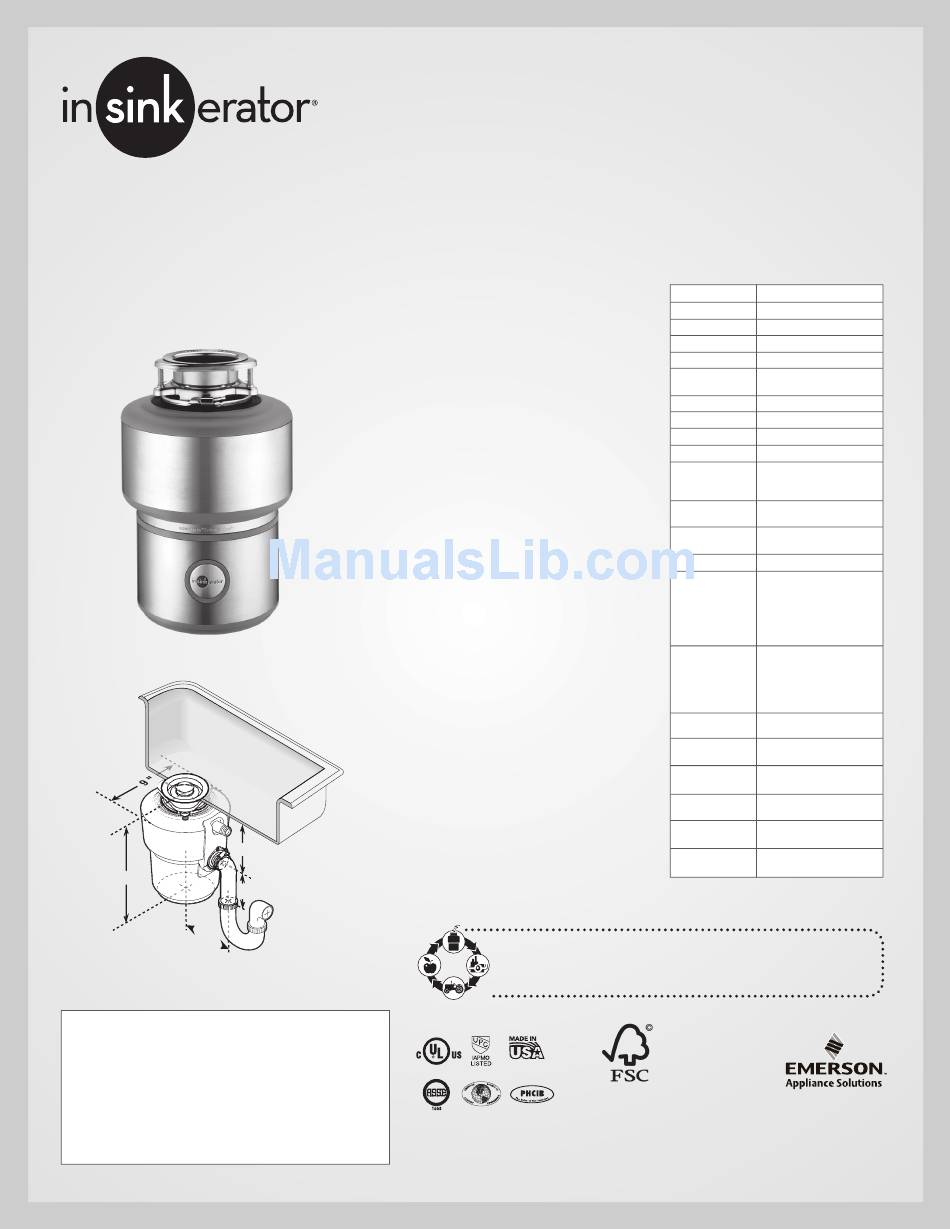

InSinkErator Evolution Excel Manual Reset

Evolution
Series
®
Grind More. Hear Less.
Dimensions
6 1
"
1 / 2
1 3
5 3
/ 4 "
* Add 1/2" when stainless steel sinks are used.
Job Specifications
H691-09J-64-02
Food Waste Disposers
Evolution
Excel
®
1 / 1
6 " *
4 "
®
For those who enjoy the very
best kitchen appliances.
Submittal Sheet
The ultimate in disposer performance.
Nothing grinds more with less noise.
• SoundSeal Plus ™ technology
reduces disposer noise by at least
60% vs. standard disposers.
• MultiGrind Plus ™ technology
delivers 3 stages of grind vs. 1 stage
in standard disposer.
• Features exclusive Jam-Sensor
Circuit that increases motor torque
500% to automatically break through
the toughest jams.
®
• Includes Quiet Collar sound
reducing sink baffle.
Sample Specification
Food Waste Disposer(s) shall be
InSinkErator Model Evolution Excel
™
with MultiGrind Plus and SoundSeal
Plus ™ technologies, 1.0 HP motor,
®
Auto-Reverse Grind System , Stainless
Steel Grind Chamber and components.
Warranty:
7- Year parts and in-home service.
* The complete InSinkErator warranty is included in the Care & Use
Booklet packed with each unit.
Food waste disposers provide an environmentally responsible alternative to
transporting food waste to landfills. And they can help reduce greenhouse gas
emissions. At capable wastewater treatment plants, food waste can be converted
to biosolids and used as fertilizer. Capable plants can also capture methane gas
and recycle it as an energy source. (Check the plant in your area.)
Hecho en los EE.UU.
The mark of responsible forestry
© 1996 Forest Stewardship Council A.C.
1-800-558-5700
www.insinkerator.com
Printed in U.S.A. © 2009 InSinkErator, InSinkErator is a division of Emerson Electric Co. All Rights Reserved.

Specifications

Type of Feed Continuous
On/Off Control Wall Switch
Motor Single Phase
HP 1.0
Volts 120
Reversing Auto-Reverse Grind
System™ feature
HZ 60
RPM 1725
Amp. (Avg. Load) 10.2
Time Rating Intermittent
Lubrication Permanently
Lubricated Upper &
Lower Bearings
Shipping
Weight (Approx.) 25.5 lbs.
Unit Finish Stainless Steel
Light Gray TEN-1706
®
Overall Height 13-1/2"
SoundSeal Plus Anti-Vibration Mount
Technology
Anti-Vibration
Tailpipe Mount™
Quiet Collar
Multi-Layer
SoundLimiter™ Insulation
MultiGrind Plus GrindShear Ring
Technology
Tri-Action Lug™ System
feature
Undercutter Disk
Jam-Sensor
Grind Chamber
Capacity 40 oz.
Motor Manual Reset
®
Protection Overload
Average Approx. 1 Gallon Per
Water Usage Person Per Day
Average
Electrical Usage 3-4 KWh Per Year
Drain 1-1/2" Anti-Vibration
Connection (Hose Clamp)
Dishwasher
Drain Connection Yes
BV-COC-080715
The Emerson logo is a trademark and service mark of
Emerson Electric Co. The mounting collar configuration
is a trademark of Emerson Electric Co.
InSinkErator may make improvements and/or changes
in the specifications at any time, in its sole discretion,
without notice or obligation and further reserves the
right to change or discontinue models.
®
® Sink Baffle
®
®
®
