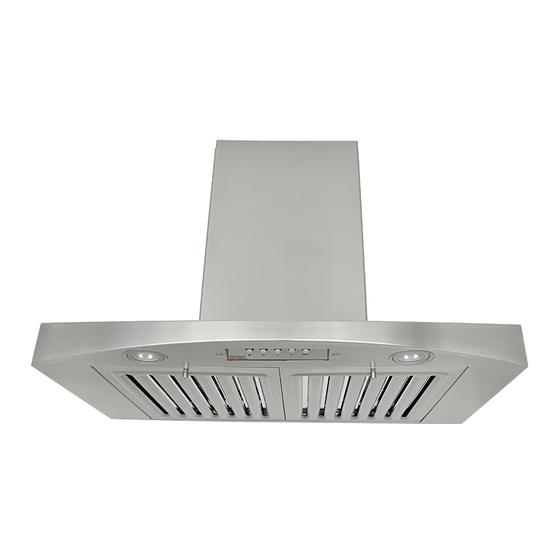

- Page 1 KOBE Brand Range Hood Model No. RA3830SQB-WM-1(30”) / RA3836SQB-WM-1 (36”) RA2830SQB-1 (30”) / RA2836SQB-1 (36”) RA2830SQB-WM-1 (30”) / RA2836SQB-WM-1 (36”) INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
- Page 2 PACKAGING MATERIAL. 2. Have your original invoice as proof of purchase and product serial number ready. 3. Call 1 877 BUY KOBE (289 5623); or e mail to info@koberangehoods.com to report the problem. NO RETURN, NO REFUND, NO EXCHANGE IF: 1.
-
Page 3: Table Of Contents
[ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..................1 COMPONENTS OF PACKAGE ....................3 INSTALLATION ..........................6 OPERATING INSTRUCTIONS ....................12 MAINTENANCE .......................... 14 SPECIFICATIONS ........................15 MEASUREMENTS & DIAGRAMS ....................17 PARTS LIST ..........................20 CIRCUIT DIAGRAM ........................ -
Page 4: Important Safety Instructions
KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 5 What to Do In The Event Of a Range Top Grease Fire • SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 6: Components Of Package
{E} 6” Round Plastic Collar {F} Duct cover Mounting Bracket {G} Adjustable Duct Cover {H} Screws Package * Pre-installed * Pre-installed 3/16 “x 3/8” (8PCS) FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.KOBERangeHoods.com CONTACT KOBE RANGE HOODS AT (626) 775-8880. - Page 7 {C} Instructions Manual ( {D} Baffle Filter x 2 (30” hood) x 3 (36” hood) {E} 6” Round Plastic Collar * Pre-installed * Pre-installed FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.KOBERangeHoods.com CONTACT KOBE RANGE HOODS AT (626) 775-8880.
- Page 8 {E} 6” Round Plastic Collar {F} Duct cover Mounting Bracket {G} Adjustable Duct Cover {H} Screws Package * Pre-installed * Pre-installed 3/16 “x 3/8” (8PCS) FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.KOBERangeHoods.com CONTACT KOBE RANGE HOODS AT (626) 775-8880.
-
Page 9: Installation
INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation To calculate installation, please refer to TABLE 1. (All calculation in inches.) - FOR UNDER THE CABINET - TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36") C = Preferred Height of Counter Top to Hood Bottom (Minimum... -
Page 10: Safety Warning
SAFETY WARNING HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING. NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD MAY OCCUR. Installation Contents UNDER THE CABINET WALL MOUNT... -
Page 11: Under Cabinet Installation
UNDER CABINET INSTALLATION For Model No.: RA2830SQB-1 / RA2836SQB-1 Preparation before Installation Figure 1 NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the outside. (Figure 1) A straight, short vent run will allow the hood to perform more efficiently. - Page 12 Figure 5 Hood Installation 5. Use steel pipe to connect the 6” round plastic collar {E} on the hood to the ductwork above. Use duct tape to make all joints secure and air tight. Refer to Figure 6 Wiring to Power Supply THIS RANGE HOOD MUST BE PROPERLY GROUNDED.
-
Page 13: Wall Mount Installation
WALL MOUNT INSTALLATION For Model No.: RA3830SQB-WM-1 / RA3836SQB-WM-1 / RA2830SQB-WM-1 / RA2836SQB-WM-1 Figure 8 Preparation before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the outside. - Page 14 Wiring to Power Supply Figure 12 THIS RANGE HOOD MUST BE PROPERLY GROUNDED. MAKE SURE THIS IS DONE BY QUALIFIED ELECTRICIAN IN ACCORDANCE WITH APPLICABLE NATIONAL LOCAL ELECTRICAL CODES. BEFORE CONNECTING WIRES, SWITCH POWER OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO PREVENT POWER FROM BEING SWITCHED ON ACCIDENTALLY.
-
Page 15: Operating Instructions
OPERATING INSTRUCTIONS For RA-038-SQB-WM-1 Series Model No.: RA3830SQB-WM-1 / RA3836SQB-WM-1 Note: For best results, turn fan on prior to any preparation or cooking and keep fans running while cooking. Adjust speed as needed. To operate the fan function Press button to choose from speed. - Page 16 For RA-028-SQB-1 or RA-028-SQB-WM-1 Series Model No.: RA2830SQB-1 / RA2836SQB-1 RA2830SQB-WM-1 / RA2836SQB-WM-1 Note: For best results, turn fan on prior to any preparation or cooking and keep fans running while cooking. Adjust speed as needed. To operate the fan function Press On/Off Control to turn on the power.
-
Page 17: Maintenance
MAINTENANCE For optimal performance, clean the range hood surface and baffles regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. *** Regular care will help preserve its fine appearance. 1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth. 2. -
Page 18: Specifications
3-Speed Rocker Switch LIGHTS 3-Watt LED light x 2 HOOD DIMENSION RA3830SQB-WM-1 (29-3/4” x 20-1/2” x 12-5/8”) (W x D x H) RA3836SQB-WM-1 (35-3/4” x 20-1/2” x 12-5/8”) RA2830SQB-1 and RA2830SQB-WM-1 (29-3/4” x 19-5/8” x 11-5/8”) RA2836SQB-1 and RA2836SQB-WM-1 (35-3/4” x 19-5/8” x 11-5/8”) OPTIONAL ACCESSORIES 1) 30"... - Page 19 For 30” Hood *RA3830SQB-WM-1 *RA2830SQB-1 / RA2830SQB-WM-1 SPEED QuietMode™ High Air Capacity (cfm) Sone* (dB) For 36” Hood *RA3836SQB-WM-1 *RA2836SQB-1 / RA2836SQB-WM-1 SPEED QuietMode™ High Air Capacity (cfm) Sone* (dB) *One sone is equivalent to the sound of a refrigerator at 40 decibels.
-
Page 20: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS ***All inch measurements are converted from millimeters. Inch measurements are estimated. ***All measurements in ( ) are millimeters. MODEL NO.: RA3830SQB-WM-1 (30”) / RA3836SQB-WM-1 (36”) - Page 21 ***All inch measurements are converted from millimeters. Inch measurements are estimated. ***All measurements in ( ) are millimeters. -FOR UNDER THE CABINET- MODEL NO.: RA2830SQB-1 (30”) / RA2836SQB-1 (36”) - FOR WALL MOUNT - MODEL NO.: RA2830SQB-WM-1 (30”) / RA2836SQB-WM-1 (36”)
- Page 22 ***Hood-Mounting Bracket ***Duct Cover-Mounting Bracke...
-
Page 23: Parts List
PARTS LIST MODEL NO.: RA3830SQB-WM-1 (30”) RA3836SQB-WM-1 (36”) DESCRIPTION MODEL /SIZE PART NO. Duct Cover -Mounting Bracket L1-0203-1630 RA028DC-1 Duct Cover (Inner and Outer) B102-02830 L1-0505-0002 6” Round Plastic Collar Hood Mounting Bracket x 2 L1-0201-03900 RA3830SQB-WM-1 L1-0401-0120-04 Capacitor RA3836SQB-WM-1... - Page 24 MODEL NO.: RA2830SQB-1 (30”) RA2836SQB-1 (36”) DESCRIPTION MODEL /SIZE PART NO. L1-0505-0002 6” Round Plastic Collar Hood Mounting Bracket x 2 L1-0201-03900 RA2830SQB-1 L1-0401-0120-04 Capacitor RA2836SQB-1 L1-0401-0120-24 LED Light Driver L1-04012-D001 Electricial Box L1-0524-0002 LED Light (3W) L1-0403-0301 On/Off Switch L1-0405-0101 Speed Switch L1-0405-0103...
- Page 25 MODEL NO.: RA2830SQB-WM-1 (30”) RA2836SQB-WM-1 (36”) DESCRIPTION MODEL /SIZE PART NO. Duct Cover -Mounting Bracket L1-0203-1630 RA028DC-1 Duct Cover (Inner and Outer) B102-02830 L1-0505-0002 6” Round Plastic Collar Hood Mounting Bracket x 2 L1-0201-03900 RA2830SQB-WM-1 L1-0401-0120-04 Capacitor RA2836SQB-WM-1 L1-0401-0120-24 LED Light Driver L1-04012-D001 Electricial Box L1-0524-0002...
-
Page 26: Circuit Diagram
CIRCUIT DIAGRAM MODEL NO.: RA3830SQB-WM-1 (30”) / RA3836SQB-WM-1 (36”) MODEL NO.: RA2830SQB-1 (30”) / RA2836SQB-1 (36”) RA2830SQB-WM-1 (30”) / RA2836SQB-WM-1 (36”) -
Page 27: Trouble Shooting
TROUBLE SHOOTING Issue Possible Cause Solution After The power is not on. Make sure the circuit breaker and the unit’s Installation, power is ON. Use a voltage meter to check the both motors power supply. and lights are The wire connection is not secure. Check and tighten wire connection. -
Page 28: Warranty
TWO-YEAR LIMITED WARRANTY FOR PARTS AND LABOR ON KOBE PREMIUM SERIES: For two years from the date of your original invoice from a KOBE authorized dealer, we will, at our sole discretion, choose to repair or replace the product free of charge that failed due to manufacturing defects. - Page 29 3. Have the model number 4. Have the serial number 5. Have a description of the nature of any defect in the product or part TO REQUEST WARRANTY SERVICE, PLEASE CONTACT THE KOBE RANGE HOODS SERVICE CENTER: KOBE SERVICE CENTER...
-
Page 30: Product Registration
1. Date of purchase 2. Model No. 3. Serial No. For warranty service or spare parts purchase contact: KOBE Service Center Toll Free: 1-855-800-KOBE (5623) Email: kobe@adcoservice.com To report a problem, please contact: Toll Free: 1-877-BUY-KOBE (289-5623) Email: customer.service@koberangehoods.com... - Page 31 Arcadia, CA 91006 USA http://www.KOBERangeHoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
