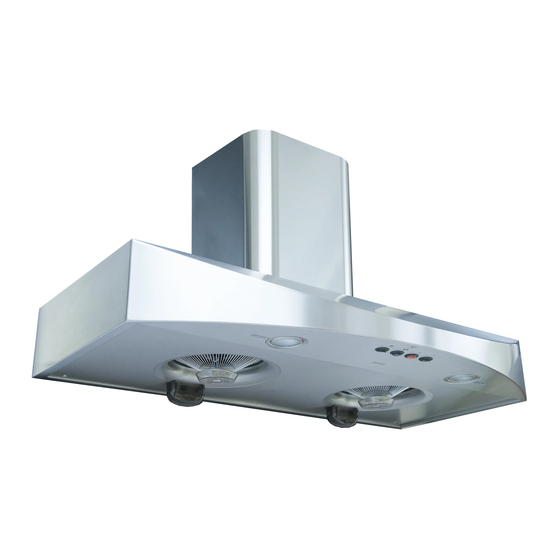

KOBE RA3830SQ Installation Instructions And Operation Manual
Ra-038 series – 5” height
Hide thumbs
Also See for RA3830SQ:
- Installation instructions and operation manual (79 pages) ,
- Installation instructions and operation manual (79 pages)
Subscribe to Our Youtube Channel
Related Manuals for KOBE RA3830SQ
Summary of Contents for KOBE RA3830SQ

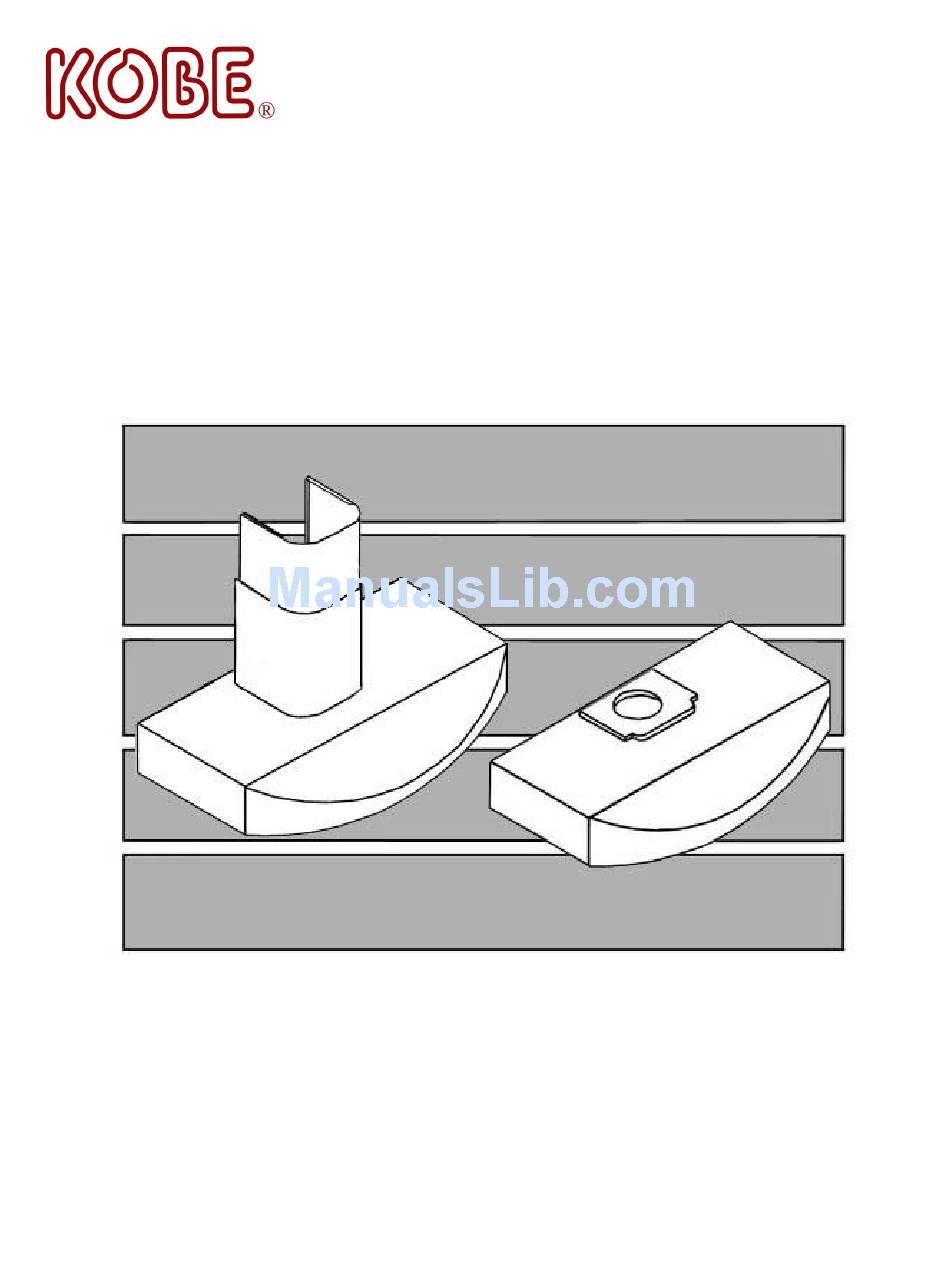

- Page 1 KOBE Brand Range Hood Model No. RA3830SQ RA3836SQ RA-038 SERIES – 5” HEIGHT INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
-
Page 2: Table Of Contents
- READ AND SAVE THESE INSTRUCTIONS - CONTENTS Important Safety Instructions………………………………………………………………. Components of Package.………………………………………………………………….. Installation…………………………………………………………………………………… Under the Cabinet Installation………………………………..……..…………………. Stand Alone Installation…………………………………………..……..……………… Operating Instructions…………………………………...…………………………………. Maintenance…………………………………………………………………………………. Specifications…………………………………………………….……..…………………… Measurements & Diagrams…………………………………………………………...…… Parts List…………………………………………………………………..…………………. Circuit Diagram………………………………………………………………...……………. Disclaimer……………………………………………………………………………………. Warranty…………………………………………………………………...………………… Product Registration………………………………………………………...……………… - READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING - A L L W IR IN G M U S T B E D O N E B Y A P R O F E S S IO N A L A N D IN A C C O R D A N C E W IT H N AT IO N A L A N D L O C A L E LE C T R IC A L C O D E S . -
Page 3: Important Safety Instructions
KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 4 What to Do In The Event Of a Range Top Grease Fire SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 5: Components Of Package
COMPONENTS OF PACKAGE (M u s t k e e p a ll m a te ria l fo r re tu rn s o r re fu n d s ) Range Hood Box {A} KOBE Range Hood {B} Warranty Registration Card {C} Instructions Manual {D} Oil Containers (Round) {E} Oil Containers (Oval) -
Page 6: Installation
INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation Calculate the length of the installation, before installing the hood. (All calculation is measure in inches). TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36”) C = Preferred Height of Counter Top to Hood Bottom (Recommended... -
Page 7: Under The Cabinet Installation
UNDER THE CABINET INSTALLATION S A F E T Y W A R N IN G HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF IT IS NECESSARY TO REMOVE ANY PARTS FOR INSTALLING, CLEANING, OR SERVICING. Preparation before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. - Page 8 NOTE: Be careful when using electrical screwdriver, damage on the hood might occur. Unscrew the six screws on the bottom casing. Remove the bottom casing as shown on Figure 4. If necessary, arrange the electrical wire to run through the 1” diameter hole on the hood.
- Page 9 S A F E T Y W A R N IN G RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST BE PROPERLY GROUNDED. MAKE SURE THIS IS DONE BY SPECIALIZED ELECTRICIAN IN ACCORDANCE WITH ALL APPLICABLE NATIONAL AND LOCAL ELECTRICAL CODES. BEFORE CONNECTING WIRES, SWITCH POWER OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO PREVENT POWER FROM BEING SWITCHED ON ACCIDENTALLY.
-
Page 10: Stand Alone Installation
***This installation only applied with the purchase of a duct cover. S A F E T Y W A R N IN G HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF IT IS NECESSARY TO REMOVE ANY PARTS FOR INSTALLING, CLEANING OR SERVICING. - Page 11 Using references on Table 2 and measurement on page 16, decide the leveling point of the hood. Position two mounting screws (not provided) on the wall, leaving 1/8” away from the wall as shown on Figure 11. Align hood-mounting bracket to the two screws on the wall and hook hood into place. Tighten screws to secure hood to the wall.
- Page 12 Figure 14 Wiring to Power Supply S A F E T Y W A R N IN G RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST BE PROPERLY GROUNDED. MAKE SURE THIS IS DONE BY SPECIALIZED ELECTRICIAN IN ACCORDANCE WITH ALL APPLICABLE NATIONAL AND LOCAL ELECTRICAL CODES.
-
Page 13: Operating Instructions
OPERATING INSTRUCTIONS This KOBE hood is equipped with a four-switch control, two powerful centrifugal turbine impellers with safety screens, two bright 12-volt 20-watt halogen lights, and four oil containers. The four control switches are Light Control, Speed Control, QuietMode™ Control and the Power Control (On/Off). -
Page 14: Maintenance
MAINTENANCE CAUTION: NEVER PUT YOUR HAND INTO THE AREA HOUSING THE FAN WHILE THE FAN IS OPERATING. For the optimal level of operation, clean the range hood surface, safety screens, and oil containers regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. *** Regular care will help preserve its fine appearance. - Page 15 To Replace Light Bulb CAUTION: HALOGEN LIGHT UNIT MAY BE HOT! WAIT UNTIL UNIT IS COOL. 1) Make sure all control switches are off, and range hood is unplugged. 2) Use a flat head screwdriver to pop out the protective covering as shown on Figure 18. 3) Gently pull out the defective light bulb and discard.
-
Page 16: Specifications
Twin Turbine Impeller 6” Round Three Speed (QuietMode, Low, & High) 12V 20W x 2 (RA3830SQ) 29-3/4” x 20-1/2” x 5-1/8” (RA3836SQ) 35-1/4” x 20-1/2” x 5-1/8” 1) Two-Piece Adjustable Duct Cover (RA1020DC) 10-5/8” x 9-1/8” x (20-5/8” ~ 39-5/8”) 2) 30”... -
Page 17: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS ***All inch measurements are converted from millimeter. Inch measurements are estimated. ***All measurements in ( ) are millimeters. -FOR STAND ALONE (WITH OPTIONAL DUCT COVER)- ***Hood-Mounting Bracket -FOR UNDER THE CABINET- 30” = Knockout Holes “A” 36” = Knockout Holes “A” & “B” ***Duct Cover-Mounting Bracket... -
Page 18: Parts List
PARTS LIST MODEL NO. RA3830SQ RA3836SQ DESCRIPTION 6” Round Plastic Exhaust Capacitor Transformer (Light) Screw (4 x 6 mm) Screw (4 x 6 mm) Power Cord Screw (TS 4 x 18 mm) Plastic Plate Hood Casing Screw (3/16” x 5/8”) Halogen Light (12V 20W Max.) - Page 19 MODEL NO. RA3830SQ RA3836SQ...
-
Page 20: Circuit Diagram
CIRCUIT DIAGRAM MODEL No. RA3830SQ RA3836SQ KEY CODE Blue Black Brown White Green Yellow Orange High QuietMode™ Halogen Light... -
Page 21: Disclaimer
DISCLAIMER 1. CAREFULLY INSPECT ALL ITEMS FOR DAMAGES BEFORE ACCEPTING DELIVERY. NOTE ANY DAMAGES ON THE FREIGHT BILL OR EXPRESS RECEIPT. REQUEST NAME AND SIGNATURE OF THE CARRIER’S AGENT AND KEEP COPY TO SUPPORT YOUR CLAIM. Upon acceptance of items, owner assumes responsibility for its safe arrival. Damages should be reported to carrier and a claim filed. -
Page 22: Warranty
WARRANTY KOBE Range Hoods, Inc. warrants all products manufactured or supplied by it to be free from defects in workmanship and materials. Its obligations pursuant to this warranty are limited to a period of two years from the date of purchase and to the repair or replacement at its option and subject to the terms and conditions stated below, of any component part, which its examination shall disclose to be so defective. -
Page 23: Consequential Damage
Some states do not allow limitations on the duration of implied warranties. This warranty gives you specific legal rights, and may also have rights, which vary from state to state. For service contact: KOBE Range Hoods, Inc. 4934 Walnut Grove Avenue Suite 202 San Gabriel, CA 91776 U.S.A... -
Page 24: Product Registration
KOBE Range Hoods Agent or KOBE Range Hoods as applicable. Keep proof of purchase (original invoice) handy for inspection.
