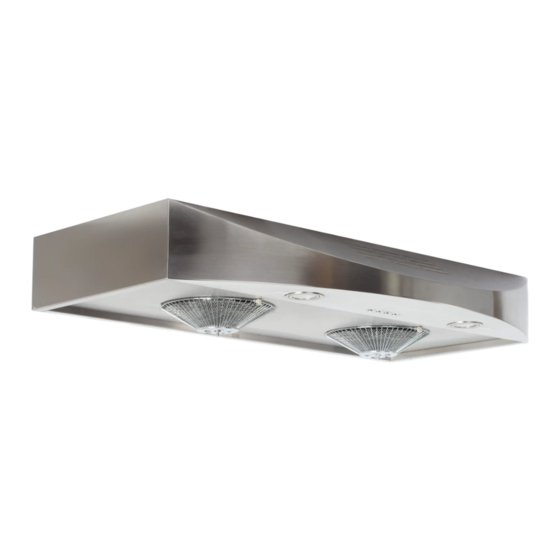

KOBE RA3830SQD Installation Instructions And Operation Manual
Ra-038 series – 5” height “recirculating hood”
Hide thumbs
Also See for RA3830SQD:
- Installation instructions and operation manual (23 pages) ,
- Installation instructions and operation manual (74 pages) ,
- Installation instructions and operation manual (75 pages)
Subscribe to Our Youtube Channel
Related Manuals for KOBE RA3830SQD
Summary of Contents for KOBE RA3830SQD
- Page 1 KOBE Brand Range Hood Model No. RA3830SQD RA3836SQD RA-038 SERIES – 5” HEIGHT “RECIRCULATING HOOD” INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
-
Page 2: Table Of Contents
- READ AND SAVE THESE INSTRUCTIONS - CONTENTS Important Safety Instructions………………………………………………………………. Components of Package…………………………………………………………………… Installation…………………………………………………………………………………… Under the Cabinet Installation………………………………..……..…………………. Stand Alone Installation………………………………………………………………… Operating Instructions.…………………………………...………………………………… Maintenance…………………………………………………………………………………. Specifications…………………………………………………….……..…………………... Measurements & Diagrams…………………………………………………………...…… Parts List…………………………………………………………………..…………………. Circuit Diagram………………………………………………………………...……………. Disclaimer……………………………………………………………………………………. Warranty…………………………………………………………………...………………… Product Registration………………………………………………………...……………… - READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING - A L L W IR IN G M U S T B E D O N E B Y A P R O F E S S IO N A L A N D IN A C C O R D A N C E W IT H N AT IO N A L A N D L O C A L E LE C T R IC A L C O D E S . -
Page 3: Important Safety Instructions
KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 4 What to Do In The Event Of a Range Top Grease Fire SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 5: Components Of Package
COMPONENTS OF PACKAGE (M u s t k e e p a ll m a te ria l fo r re tu rn s o r re fu n d s ) Range Hood Box {A} KOBE Range Hood {B} Warranty Registration Card {C} Instructions Manual {D} Plastic Plate {E} Charcoal Filter Set... -
Page 6: Installation
INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation Calculate the length of the installation, before installing the hood. (All calculation is measure in inches.) TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36”) C = Preferred Height of Counter Top to Hood Bottom (Recommended... -
Page 7: Under The Cabinet Installation
UNDER THE CABINET INSTALLATION S A F E T Y W A R N IN G HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF IT IS NECESSARY TO REMOVE ANY PARTS FOR INSTALLING, CLEANING, OR SERVICING. Preparation before Installation - Temporarily wire the hood to test for proper operation before installing. - Page 8 Draw electrical wires through cabinet access opening. Place screws (not provided) into the exact center of each knockout hole. Make sure all screws are in place before tightening screws. CAUTION: MAKE SURE THE HOOD IS SECURE BEFORE RELEASING. Connect the electrical wires. Refer to “Wiring to Power Supply.” If necessary to hide the electrical wire connections, push wires back into the wiring box.
-
Page 9: Stand Alone Installation
***This installation only applies with the purchase of an optional duct cover (Model No. RA1020DC). S A F E T Y W A R N IN G HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF IT IS NECESSARY TO REMOVE ANY PARTS FOR INSTALLING, CLEANING OR SERVICING. - Page 10 Align hood-mounting bracket to the two screws on the wall and hook hood into place. Tighten screws to secure hood to the wall. CAUTION: MAKE SURE THE HOOD IS SECURE BEFORE RELEASING. Duct Cover Installation Mark the position of the duct cover-mounting bracket. Use reference E from Table 2 and measurements on page14.
- Page 11 Figure 11 10. Fasten outer duct cover to plastic plate on the hood with four (4x8 mm) screws (provided). Wiring to Power Supply S A F E T Y W A R N IN G RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST BE PROPERLY GROUNDED. MAKE SURE THIS IS DONE BY SPECIALIZED ELECTRICIAN IN ACCORDANCE WITH ALL APPLICABLE NATIONAL AND LOCAL ELECTRICAL CODES.
-
Page 12: Operating Instructions
OPERATING INSTRUCTIONS This KOBE hood is equipped with four electronic controls with a 10-second standby startup & 30-second delay shutoff, two powerful centrifugal turbine impellers with charcoal filter set, and two bright 12-volt 20-watt halogen lights. The four button controls are Light Control, Speed Control A (cycles through Low, Medium, High, QuietMode), Speed Control B (cycles through Low, QuietMode, High, Medium) and the Power Control (On/Off). -
Page 13: Maintenance
MAINTENANCE CAUTION: NEVER PUT YOUR HAND INTO THE AREA HOUSING THE FAN WHILE THE FAN IS OPERATING. For the optimal level of operation, clean the range hood surface, charcoal filter unit, and oil containers regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. *** Regular care will help preserve its fine appearance. - Page 14 To Replace Light Bulb CAUTION: HALOGEN LIGHT UNIT MAY BE HOT! WAIT UNTIL UNIT IS COOL. 1) Make sure all control switches are off, and range hood is unplugged. 2) Use a flat head screwdriver to pop out the protective covering as shown on Figure 13. 3) Gently pull out the defective light bulb and discard.
-
Page 15: Specifications
Electronic Control (4 Buttons) – 10-Second Standby Startup 30-Second Delay Shutoff 12V 20W x 2 (RA3830SQD) 29-3/4” x 20-1/2” x 5-1/8” (RA3836SQD) 35-1/4” x 20-1/2” x 5-1/8” 1) Two-Piece Adjustable Duct Cover (RA1020DC) 10-5/8” x 9-1/8” x (22-7/8” ~ 39-5/8”) 2) 30”... -
Page 16: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS ***All inch measurements are converted from millimeter. Inch measurements are estimated. ***All measurements in ( ) are millimeters. - FOR STAND ALONE (WITH OPTIONAL DUCT COVER) - ***Hood-Mounting Bracket - FOR UNDER THE CABINET - 30” = Knockout Holes “A” 36”... -
Page 17: Parts List
PARTS LIST MODEL NO.: RA3830SQD RA3836SQD DESCRIPTION Hood Casing Air Chamber Air Chamber (Top) Air Chamber (Side) Air Chamber (Opening) Motor (Right) Motor (Left) Impeller (Right) Impeller (Left) Impeller Plastic Cover Oil Tunnel Flat Head Screws (3/16” x 5/8”) Bottom Casing Halogen Light (12V 20W Max.) - Page 18 MODEL NO.: RA3830SQD RA3836SQD...
-
Page 19: Circuit Diagram
CIRCUIT DIAGRAM MODEL NO.: RA3830SQD RA3836SQD... -
Page 20: Disclaimer
DISCLAIMER 1. CAREFULLY INSPECT ALL ITEMS FOR DAMAGES BEFORE ACCEPTING DELIVERY. NOTE ANY DAMAGES ON THE FREIGHT BILL OR EXPRESS RECEIPT. REQUEST NAME AND SIGNATURE OF THE CARRIER’S AGENT AND KEEP COPY TO SUPPORT YOUR CLAIM. Upon acceptance of items, owner assumes responsibility for its safe arrival. Damages should be reported to carrier and a claim filed. -
Page 21: Warranty
WARRANTY KOBE Range Hoods, Inc. warrants all products manufactured or supplied by it to be free from defects in workmanship and materials. Its obligations pursuant to this warranty are limited to a period of two years from the date of purchase and to the repair or replacement at its option and subject to the terms and conditions stated below, of any component part, which its examination shall disclose to be so defective. -
Page 22: Consequential Damage
Some states do not allow limitations on the duration of implied warranties. This warranty gives you specific legal rights, and may also have rights, which vary from state to state. For service contact: KOBE Range Hoods, Inc. 4934 Walnut Grove Avenue Suite 202 San Gabriel, CA 91776 U.S.A... -
Page 23: Product Registration
KOBE Range Hoods Agent or KOBE Range Hoods as applicable. Keep proof of purchase (original invoice) handy for inspection.
