Controls of
- Shown is a simplified representation of the set.
- Here shown may be somewhat different from your set.
Main power switch(for NLT-26XT3)
NLT-32XT3
NLT-26XT3
POWER CORD SOCKET
This set operates on an AC power. The volt-
age is indicated on the Specifications page.
Never attempt to operate the set on DC
power.
HDMI IN (DVI) SOCKETS
Connect the set output socket of the equipment
with HDMI output to this socket.
VGA {1024X768(60Hz)/800X600(60Hz)/640X480
(60Hz)/720X400(70Hz)}
Connect the VGA signal of computer with
this port by VGA cable, connect audio signal
with VGA's audio input port by audio cable.
VGA- AUDIO
Port for VGA audio input
VGA Connection cannot display 50Hz signal.
COMPONENT1/2 IN (480i / 576i / 480p / 576p /
720p / 1080i) SOCKETS

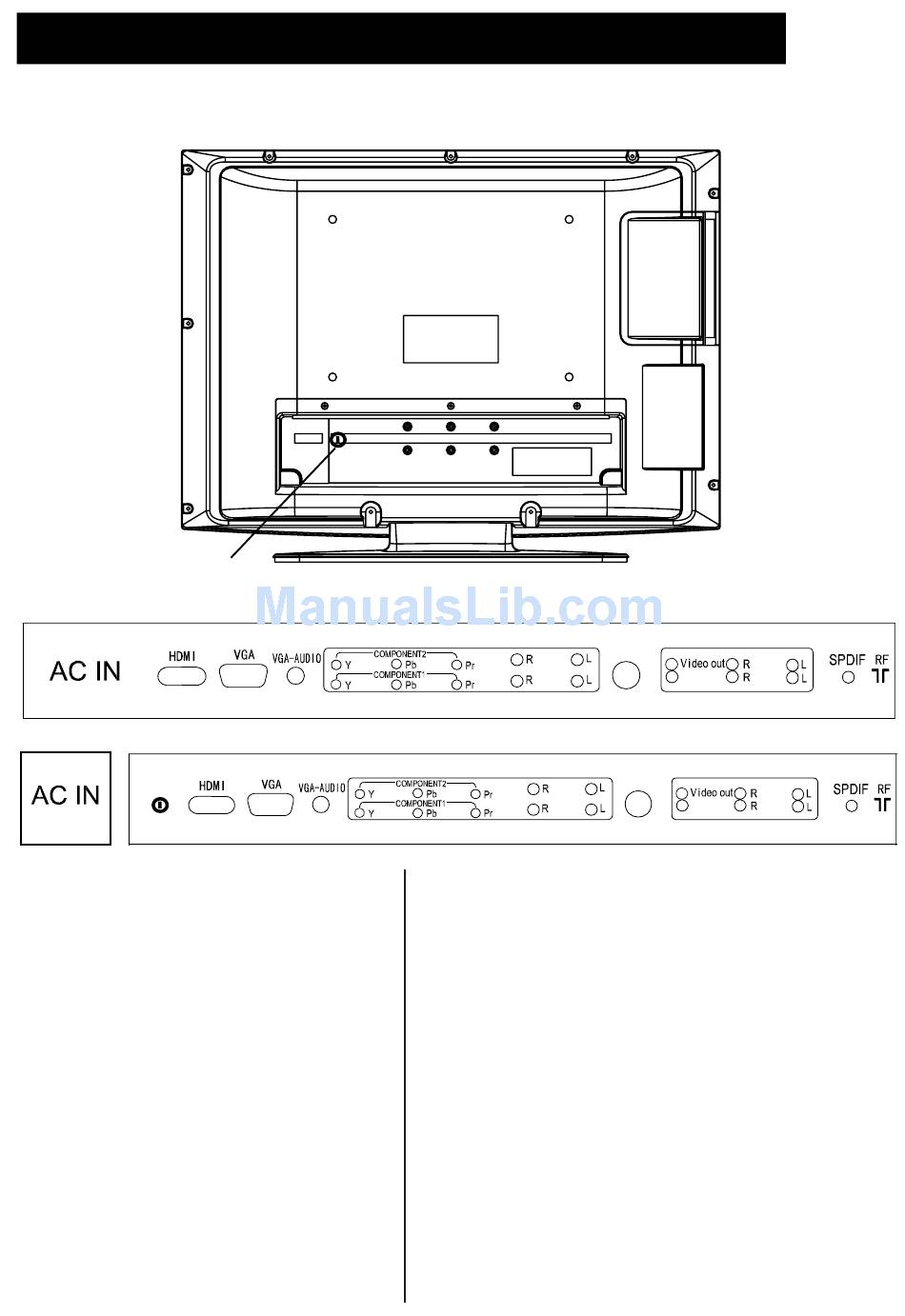

Back panel
S-VIDEO
S-VIDEO IN
Connect video out from an S-Video VCR to
the S-VIDEO input.
Connect the S-Video sound input socket of
the VCR to component sound sockets of the
set.
VIDEO IN SOCKET
Connect the video out sockets of the
VCR to AV sockets of the set.
VIDEO OUT SOCKET
Connect a second TV or monitor.
This function will only works at TV, VIDEO and S-VIDEO.
SPDIF
Port for TV audio output.
RF
Aerial socket
11
Video in
S-VIDEO
Video in
