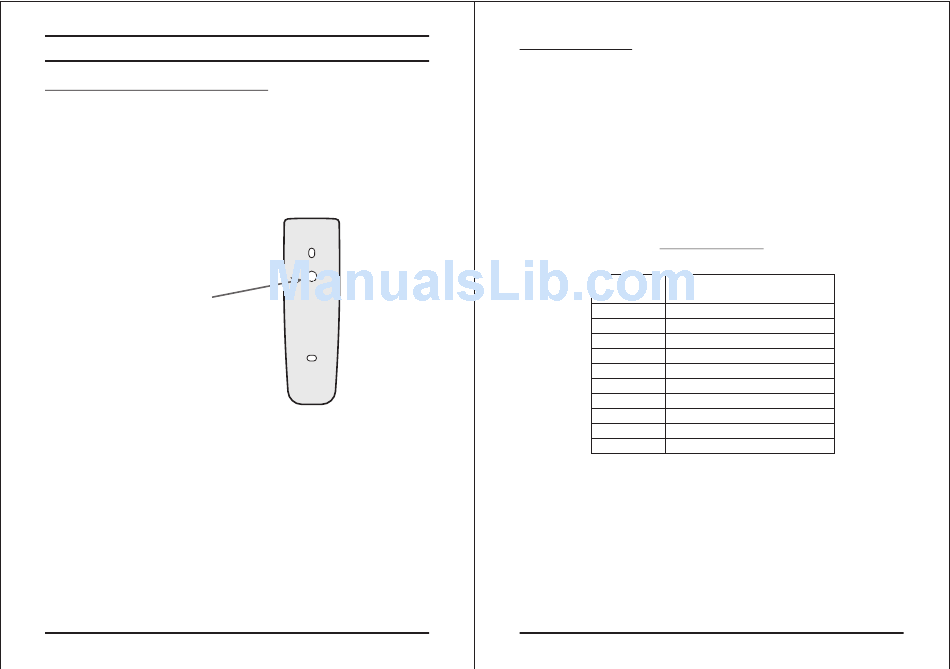

Installation

Mounting the AC-G43 Controller

1) Before starting, select the location to mount the AC-G43
controller.
2) For wall mounting use the mounting template as a guide to drill
the mounting and cable holes in the wall. For US Gang Box
installation there are two holes on the back cover aligned for the
US Gang Box. (Shown marked as "A" in diagram below).
Tamper
Lens
3) Screw the AC-G43 back cover to its mounting location.
4) Wire the controller according the wiring instructions of the
following page.
5) Mount the AC-G43 to the back cover.
6) Secure the AC-G43 by using the supplied security screw in the
Installation Kit. An L-Shaped tool is provided for use when
tightening the security screw.
AC-G43 Page 8
A
A
07/04
Wiring the AC-G43
The controller is supplied with a 22" (60cm) pigtail, having a 10
conductor cable. To wire the Controller, perform the following
steps.
1) Prepare the controller cable to the required length.
2) Splice the controller pigtail wires to the corresponding devices
and cover each connection. Refer to the wire color guide
provided below and to the wiring diagrams provided on the
following pages.
Wire Color Guide
COLOR
RED V INPUT
BLACK GROUND
GREEN REX / BL
WHITE IN / MONITOR
PURPLE LOCK: COM
GRAY
BROWN
BLUE AUX:
YELLOW
ORANGE
3) Trim and cover all conductors that are not used.
A few of the typical wiring diagrams are shown on the next three
pages; for other wiring diagram examples refer to the support
section of the Rosslare Web Site.
http://www.rosslaresecurity.com
AC-G43 Page 9
DESCRIPTION
N.O.
N.C.
COM
N.O.
N.C.
