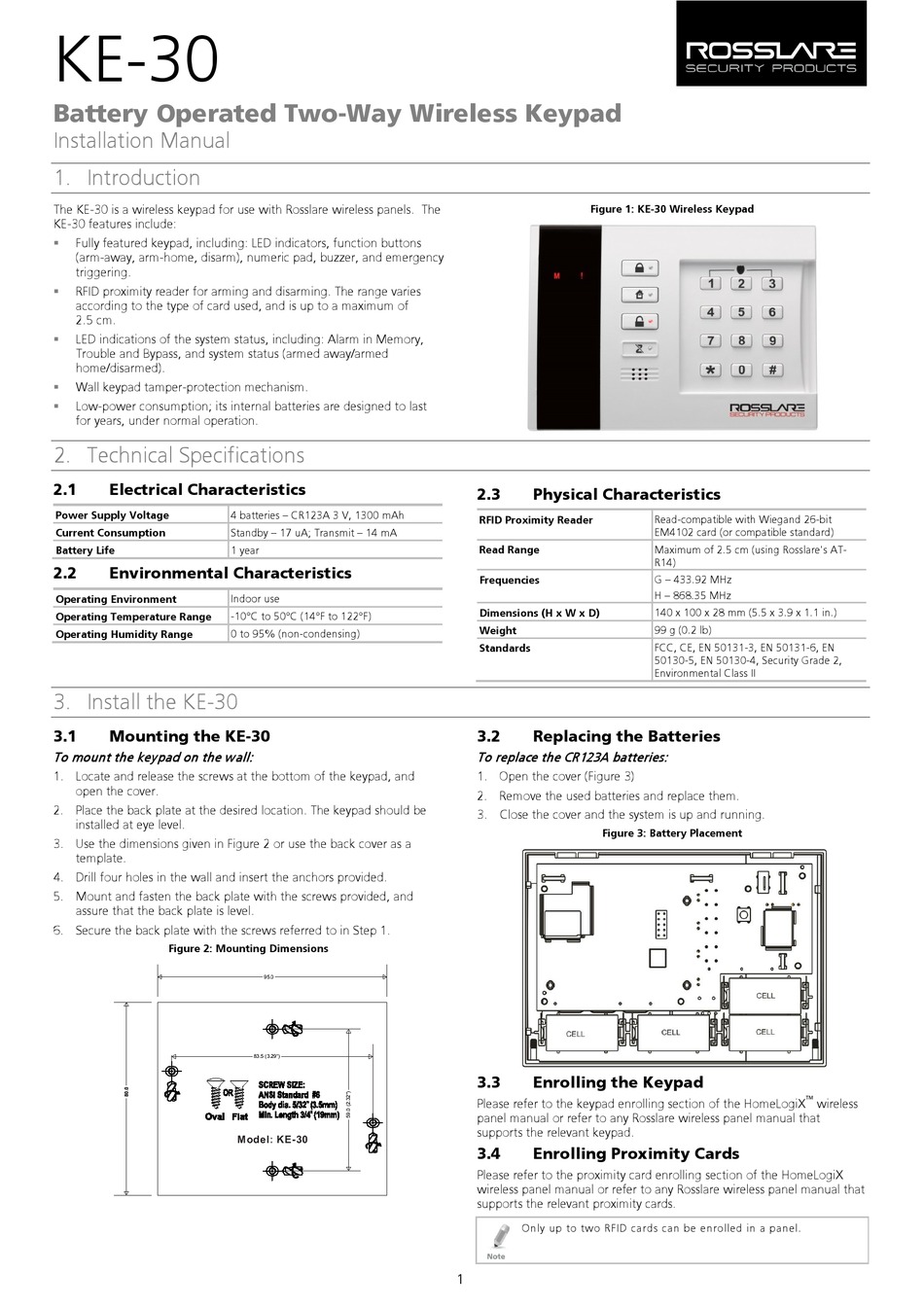

Rosslare KE-30 Installation Manual

KE-30
Battery Operated Two-Way Wireless Keypad
Installation Manual
1. Introduction
The KE-30 is a wireless keypad for use with Rosslare wireless panels. The
KE-30 features include:
 Fully featured keypad, including: LED indicators, function buttons
(arm-away, arm-home, disarm), numeric pad, buzzer, and emergency
triggering.
 RFID proximity reader for arming and disarming. The range varies
according to the type of card used, and is up to a maximum of
2.5 cm.
 LED indications of the system status, including: Alarm in Memory,
Trouble and Bypass, and system status (armed away/armed
home/disarmed).
 Wall keypad tamper-protection mechanism.
 Low-power consumption; its internal batteries are designed to last
for years, under normal operation.

2. Technical Specifications

2.1 Electrical Characteristics
Power Supply Voltage
Current Consumption
Battery Life
2.2 Environmental Characteristics
Operating Environment
Operating Temperature Range
Operating Humidity Range
3. Install the KE-30
3.1 Mounting the KE-30
To mount the key pad on the wall:
1. Locate and release the screws at the bottom of the keypad, and
open the cover.
2. Place the back plate at the desired location. The keypad should be
installed at eye level.
3. Use the dimensions given in Figure 2 or use the back cover as a
template.
4. Drill four holes in the wall and insert the anchors provided.
5. Mount and fasten the back plate with the screws provided, and
assure that the back plate is level.
6. Secure the back plate with the screws referred to in Step 1.
Figure 2: Mounting Dimensions
4 batteries – CR123A 3 V, 1300 mAh
Standby – 17 uA; Transmit – 14 mA
1 year
Indoor use
-10°C to 50°C (14°F to 122°F)
0 to 95% (non-condensing)
Figure 1: KE-30 Wireless Keypad
2.3 Physical Characteristics
RFID Proximity Reader
Read Range
Frequencies
Dimensions (H x W x D)
Weight
Standards
3.2 Replacing the Batteries
To replace the CR123A batteries:
1. Open the cover (Figure 3)
2. Remove the used batteries and replace them.
3. Close the cover and the system is up and running.
Figure 3: Battery Placement
3.3 Enrolling the Keypad
Please refer to the keypad enrolling section of the HomeLogiX
panel manual or refer to any Rosslare wireless panel manual that
supports the relevant keypad.
3.4 Enrolling Proximity Cards
Please refer to the proximity card enrolling section of the HomeLogiX
wireless panel manual or refer to any Rosslare wireless panel manual that
supports the relevant proximity cards.
Only up to two RFID cards can be enrolled in a panel.
1
Read-compatible with Wiegand 26-bit
EM4102 card (or compatible standard)
Maximum of 2.5 cm (using Rosslare's AT-
R14)
G – 433.92 MHz
H – 868.35 MHz
140 x 100 x 28 mm (5.5 x 3.9 x 1.1 in.)
99 g (0.2 lb)
FCC, CE, EN 50131-3, EN 50131-6, EN
50130-5, EN 50130-4, Security Grade 2,
Environmental Class II
™
