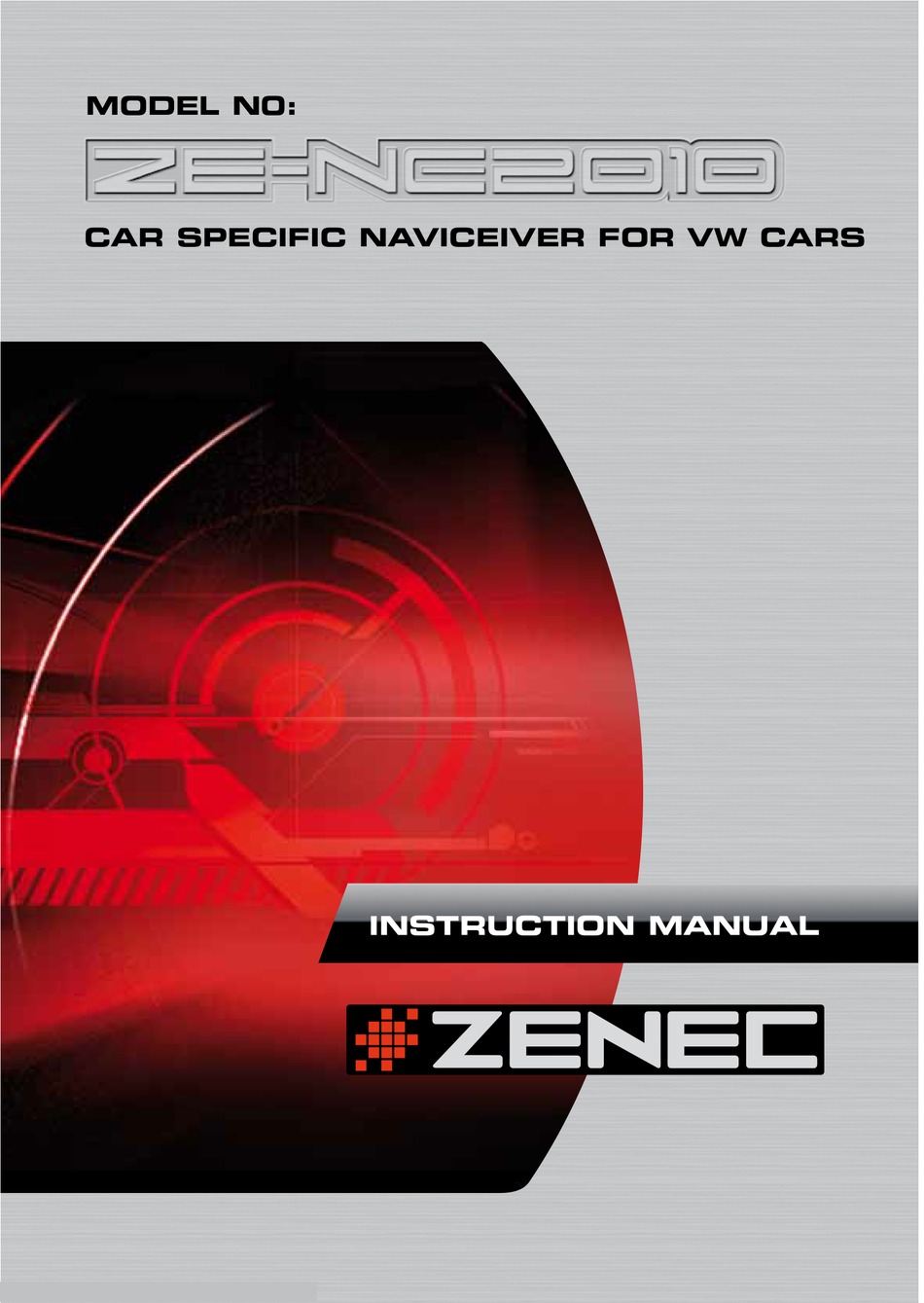

- Page 1 MODEL NO: MODEL N0: ZE-DVBT1 0 1 CH DVB-T TUNER CAR SPECIFIC NAVICEIVER FOR VW CARS INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
AbOUT THIS INSTRUCTION MANUAL The instruction manual contains important information and warnings about the operation of the ZE-NC2010. Please add this instruction manual to the log book of your vehicle to have access to it any time. NOTE: ■ Text passages with this symbol indicate particular information, which are very important for correct operation. -
Page 3: Safety Instructions
If the short circuit doesn't result from a mistake of the power supply or wiring, you can replace the defect fuse against a new one with the identical data. If the short-circuit is still existing, please contact an authorized ZENEC dealer. -
Page 4: Front Panel Buttons
FRONT PANEL bUTTONS MAIN UNIT bq bs bs bt... - Page 5 ENGL I SH 1. POWER/MUTE mode to auto search down. 9. NEXT ■ Press the POWER/MUTE-button to turn on the unit. ■ Press the NEXT-button to choose the ■ Press and hold the POWER/MUTE- next track/chapter. button to turn off the unit. ■...
-
Page 6: Remote Control Buttons
REMOTE CONTROL bUTTONS FRONT REMOTE CONTROL... - Page 7 ENGL I SH 1. POWER 16. OK ■ Press the POWER/MUTE-button to turn ■ Start or pause the playback. on the unit. ■ Confirm the selected adjustment. 2. EJECT 17. DIRECTION BUTTONS ■ Press the EJECT-button to insert or eject ■...
- Page 8 REAR REMOTE CONTROL (M-ZONE) TV/RADIO...
- Page 9 ENGL I SH 1. R-SRC 17. REPEAT ■ After you have activated M-Zone in the ■ Press the REPEAT-button to repeat the main menu, press the R-SRC-button to track/folder/chapter/disc playback. 18. AUDIO choose the playing mode for the rear zone. ■...
-
Page 10: Basic Operation
bASIC OPERATION POWER ON/OFF ■ Press the POWER/MUTE-button on the front panel to turn on the unit. Press and hold the button for 2 seconds to turn off the unit. ■ It's also possible to turn on and off the unit with the ignition, but this depends on the last state, before the unit was turned off. - Page 11 ENGL I SH MUTE FUNCTION ■ Manually: Press the Mute/Power-button on the front panel to mute the audio output. Press the button again to deactivate the mute function. ■ Automatically: The audio output will be muted, if you make a phone call. AUDIO CONTROL MENU ■...
-
Page 12: Main Menu And Settings
SETUP SETUP MENU ■ Touch the [ ]-Icon in the main menu to enter the setup menu. ■ Touch the desired menu item directly on the display to open the submenu and to change the selected adjustment. ■ The icons [ ] and [ ] indicate that there are more options available on the next page of the setup menu. - Page 13 ENGL I SH GENERAL Settings Options Function Adjusts the clock appearing in the top right corner Clock (HH:MM) of the TFT screen. AM/PM Choose AM or PM mode (only for 12 Hr mode). 12Hr Clock displays 12 hour time using AM and PM. Clock Mode 24Hr Clock displays 24 hour time up to 23:59.
- Page 14 VIDEO Settings Options Function cinema Widescreen picture scaling. TV Shape normal Normal picture scaling. The video output is switched automatically based on Auto the current disc. Aux IN The video output is in the standard PAL format. NTSC The video output is in the standard NTSC format. Brightness -10 to +10 Adjusts the brightness of the screen.
- Page 15 ENGL I SH Settings Options Function Down Mix 2-channel stereo mode. Down Mix Full 6 CH 6-channel mode. Large Recommended for speakers > 5.25". Front Speakers Small Recommended for speakers < 5.25". Large Recommended for speakers > 5.25". Center Speakers Small Recommended for speakers <...
- Page 16 LANGUAGES Settings Function DVD Menu Select the language for the DVD menu. Subtitle Select the language for the subtitle. Audio Select the language for the soundtrack. Select the language for the OSD menu. VOLUME Settings Options Function The unit starts with the volume, which was Adjusts adjusted with the menu item"start vol adjust".
- Page 17 ENGL I SH MISC SETUP MENU Settings Options Function Touch "Yes" to enter the touch screen calibrate TS Calibrate mode.Then follow instructions on the screen. Set Password Locked Enter your password to unlock the parental lock. Kid safe: A movie rating that is appropriate for 1.
- Page 18 To unlock the unit with the super code, it’s unavoidable to send it back to an authorized ZENEC-dealer. ■ If you want to change or deactivate the anti-theft code, you must enter a valid code first. ...
- Page 19 ENGL I SH INSTALLATION OF SOFTWARE UPDATES NOTE: ■ There will be new software updates appearing for download at irregular intervals on www. zenec.com. Please follow the instruction notes of the software update, to install the update properly.
-
Page 20: Radio Mode
RADIO MODE 7 8 9 bl bm bn bo bp bq br bs bt... - Page 21 ENGL I SH 1. Current mode of unit. Touch to open the 14. Touch to seek forward. main menu. 15. Touch to switch between the two sub- 2. Displays the signal strength. menus. 3. The TP button lights up orange when 16.
- Page 22 NOTE: ■ This product features a tuner with RDS function. RDS (Radio Data System) is a system that transmits broadcast station information together with FM programs. RDS service is not available in AM broadcasting. RDS service availability depends on the FM broadcasting provider. ■...
-
Page 23: Cd/Dvd Mode
ENGL I SH DVD MODE Area A Area F Area B Area C Area D Area E ■ Touch the lower section of the screen to display these icons. If no operation has been entered for 10 seconds, these icons will be automatically hidden. 1. -
Page 24: Cd/Mp3/Wma Mode
CD/MP3/WMA MODE 8 9 bl 1. Current mode indicator. Touch to open the main menu. 2. Display of disc folders and titles. 3. Current time indicator. 4. Touch to repeat track/folder/disc. 5. Touch to display the numeric keypad on the screen. Use the numeric keypad to access a track directly. -
Page 25: Sd/Usb Mode
ENGL I SH SD-CARD MODE ■ Insert the SD or SDHC card (up to 8 GB) into the SC-card slot and enter the SD card mode. NOTE: ■ The interface and the operation of the SD card mode is similar to the CD/MP3/WMA mode. ■... -
Page 26: Ipod Mode
16. Elapsed playing time and total time of the track. 17. Touch to activate/deactivate the random mode. 18. Touch to navigate through the directories/folders. 19. Open/close submenu. NOTE: ■ Please visit www.zenec.com for the latest iPod software updates and compatibility lists. -
Page 27: Bluetooth Mode
ENGL I SH bLUETOOTH MODE BLUETOOTH OPERATION bo 2 bn 8 1. Current playing source: Bluetooth. Touch to go back to the main menu. 2. Bluetooth icon. 3. Open the dialling function. 4. Open the phone book. 5. Open the call log. 6. - Page 28 The entries with the respective initial letter get displayed directly. NOTE: ■ The function and the sorting of the entries are depending of the mobile phone. A listing of the compatible mobile phones and the supported function are available on www. zenec.com.
-
Page 29: Bluetooth Mode
ENGL I SH CALL LOG Display the dialled, received and missed calls. ■ A2DP FUNCTION Start the playback on the unit. The music player of the mobile phone will be activated ■ automatically and it's possible to operate and control the music player of your mobile phone with the unit. - Page 30 1. Searching for nearby phones. 1. Activate the Bluetooth mode on the mobile phone und check, if it allows to detect it from other devices resp. if the function to search for Bluetooth devices is activated. 2. Touch the Add icon to open the search menu and to start the search run. 3.
- Page 31 ■ Choose between using the internal or external microphone. VERSION ■ Display the current Bluetooth software version of the unit. NOTE: ■ There will be new Bluetooth software updates at regular intervals available on www.zenec.com. Please follow the instruction manual of the software update to install it.
- Page 32 ENTER A VOICE TAG ■ The user can record a voice tag for 200 phone numbers, i.e. it's possible to start a phone call with a pre-recorded voice tag. 1. Choose one entry form the phone book. 2. Start to record a voice tag and follow the instructions to finish the procedure. Entries with a voice tag are indicated with a [ ]-icon.
- Page 33 ■ A listening with compatible mobile phones and functions are available on www.zenec.com. ■ It's possible to pair up to 5 mobile phones with the unit.
-
Page 34: Navigation Mode
2. Please read the manual of the DVB-T tuner to learn more about the operation of it. NOTE: ■ If you are using a compatible ZENEC DVB-T tuner, it's possible to operate it with the touch- screen of the ZE-NC2010. Please visit www.zenec.com to find compatible DVB-T tuner model(s). -
Page 35: Can-Bus
Connect the CAN Bus interface with the ZE-NC2010 and pay attention to the connection diagram first. Because of the different functions of the steering wheel buttons in the different vehicles, the ZE-NC2010 doesn't support all functions. You will find a list of the supported functions on www.zenec.com. -
Page 36: General Information
GENEREL INFORMATION ABOUT DIVX ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified®... -
Page 37: Troubleshooting
ENGL I SH TROUbLESHOOTING Problem Cause Solution GENEREL Radio fuse blown. Install new fuse with correct rating. Unit will not power Car battery fuse blown. Install new fuse with correct rating. Illegal operation. Press the RESET button. Improper audio output connection. Check wiring and correct. Volume set too low. - Page 38 TUNER Auto antenna not properly Connect the auto antenna cable connected. properly. REG function is activated. Turn REG function off. Weak station searching. The antenna power cable is not Connect the antenna power cable connected. properly. The AF function is not activated. Activate the AF function.
-
Page 39: Specifications
ENGL I SH SPECIFICATIONS Main Amplifier Power Output: 20 watts X 4 channels into 4-ohms @ < 10% THD+N Signal to Noise Ratio: 70dBA below reference. (Reference: 1 watt, 4-ohms) MAX Power: 50 X 4 watts into 4-ohms, all channels driven Frequency Response: 20Hz to 20 kHz, -3dB. -
Page 40: Warranty
WARRANTY 2 YEARS Dear customer Thank you for purchasing this ZENEC product. It is advisable to keep the original packing material for any future transporting of the product. Should your ZENEC product require warranty service, please return it to the retailer from whom it was purchased or the distributor in your country. -
Page 41: Warranty
WARRANTY ZENEC MODEL: ZE-NC2010 Serial number: ..........................Date of purchase: .......................... Your name: ............................ Your address: ..........................City: .............................. State: ........ZIP or postal code: ................. Country: ............................Dealer’s address & stamp ■ If at any time in the future you should need to dispose this product please note that waste electrical products should not be disposed of with household waste. - Page 42 MODEL NO: ZE-DVBT1 0 1 CH DVB-T TUNER ZENEC · By ACR AG · Bohrturmweg 1 · Bad Zurzach · Switzerland...
