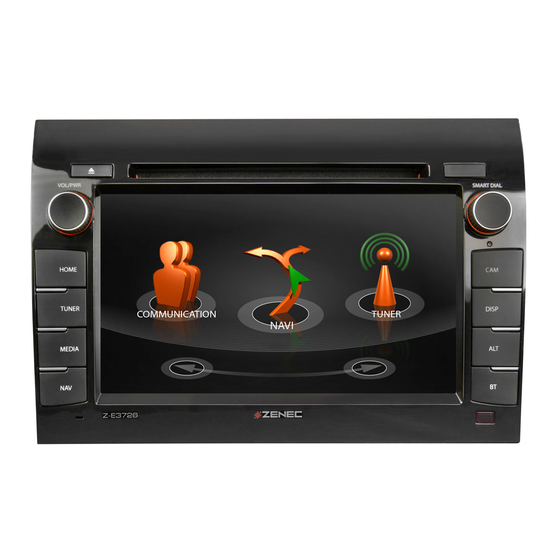

- Page 1 Z-E3726 DEVICE INSTALLATION MANUAL...
-
Page 2: Compatibility List
● The ZENEC system is equipped with an integrated DAB+ receiver. To make use of this you will need a suitable DAB antenna (not included in kit) that must be connected to the ZENEC system. -
Page 3: Installation
REMOVAL WORK AND PREPARATION: Remove both storage compartments in accordance with the manufacturer‘s information. 2.a Cut off the left and right plastic holders for the storage compartments as flush as possible. 2.b Use a suitable saw to do this, and then a file to remove any protrusions still present. - Page 4 Before installing the ZENEC system (No. 1) remove the two transport securing screws. 5.a Insert the mounting frame (No. 2) at an angle from above into the radio slot. 5.b Screw down the mounting frame at the top and bottom with the four Phillips screws (No. 3) supplied with the ZENEC system kit.
- Page 5 (trees, high buildings etc.). Now insert the navigation software SD card (No. 5) supplied into the SD card slot of the ZENEC system, and start it in order to establish a sat fix. Make sure that the vehicle is not moved until the sat fix is established. Now press the NAV button to start the navigation mode, and choose map view.
-
Page 6: Connection Diagram
Loudspeaker rear left (-) Loudspeaker rear left (-) Loudspeaker front left (-) Loudspeaker rear left (+) *300mA max. Input (see Operating Manual „Input”) Internally connected Internally connected ZENEC · Bohrturmweg 1 · CH-5330 Bad Zurzach · Schweiz/Switzerland · Mail: support@zenec.com · www.zenec.com...
