CHAPTER 2: GETTING STARTED

CONNECTING YOUR CONFERENCING PHONE

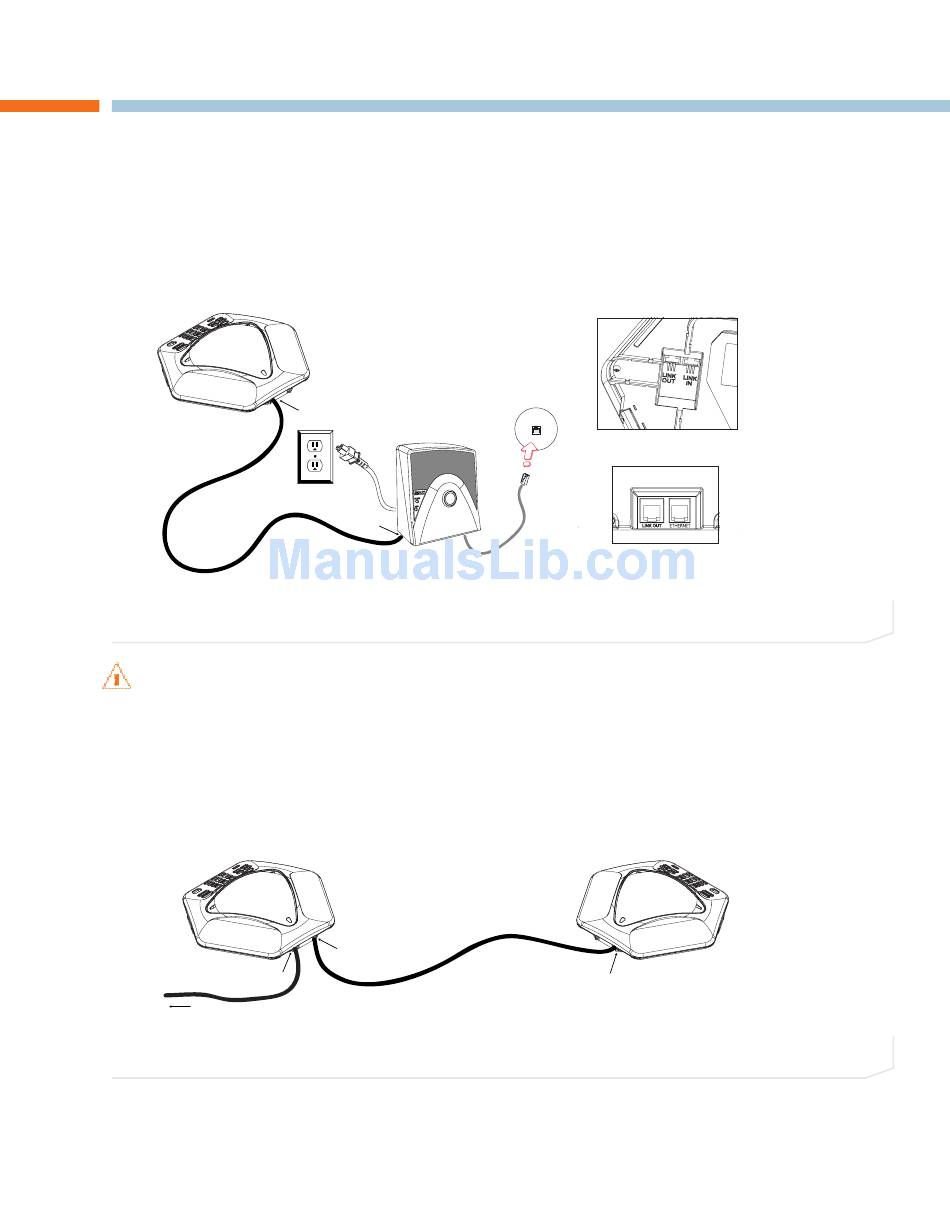

1. Connect the Connection cable from the Link Out jack on the base unit to the Link In jack on the
conferencing pod (see figure 2.1).
To Link In
25' Connection cable
Warning: DO NOT plug a laptop or PC into the Link Out jack on the base unit or conferencing pod--severe
electrical damage can occur if this is done.
2. Connect the base unit to the Ethernet jack using the Ethernet cable.
3. Connect the power cord to the base unit and plug it directly into an electrical outlet.

CONNECTING ADDITIONAL MAX IP PHONES

1. Connect the 12' Connection cable to the Link Out jack on the first phone and to the Link In jack on the
second phone (see figure 2.2).
To Link In
25' Connection cable
To Link Out on Base Unit
2. Continue linking up to three additional MAX IP phones in the same fashion. A total of four units may be
connected.
Ethernet
To Link Out
From Link Out
12' Connection cable
Jack
Green
Ethernet
cable
FIGURE 2.1
To Link In
FIGURE 2.2
Connecting the MAX IP
Connecting additional units
Chapter 2: Getting Started 5
