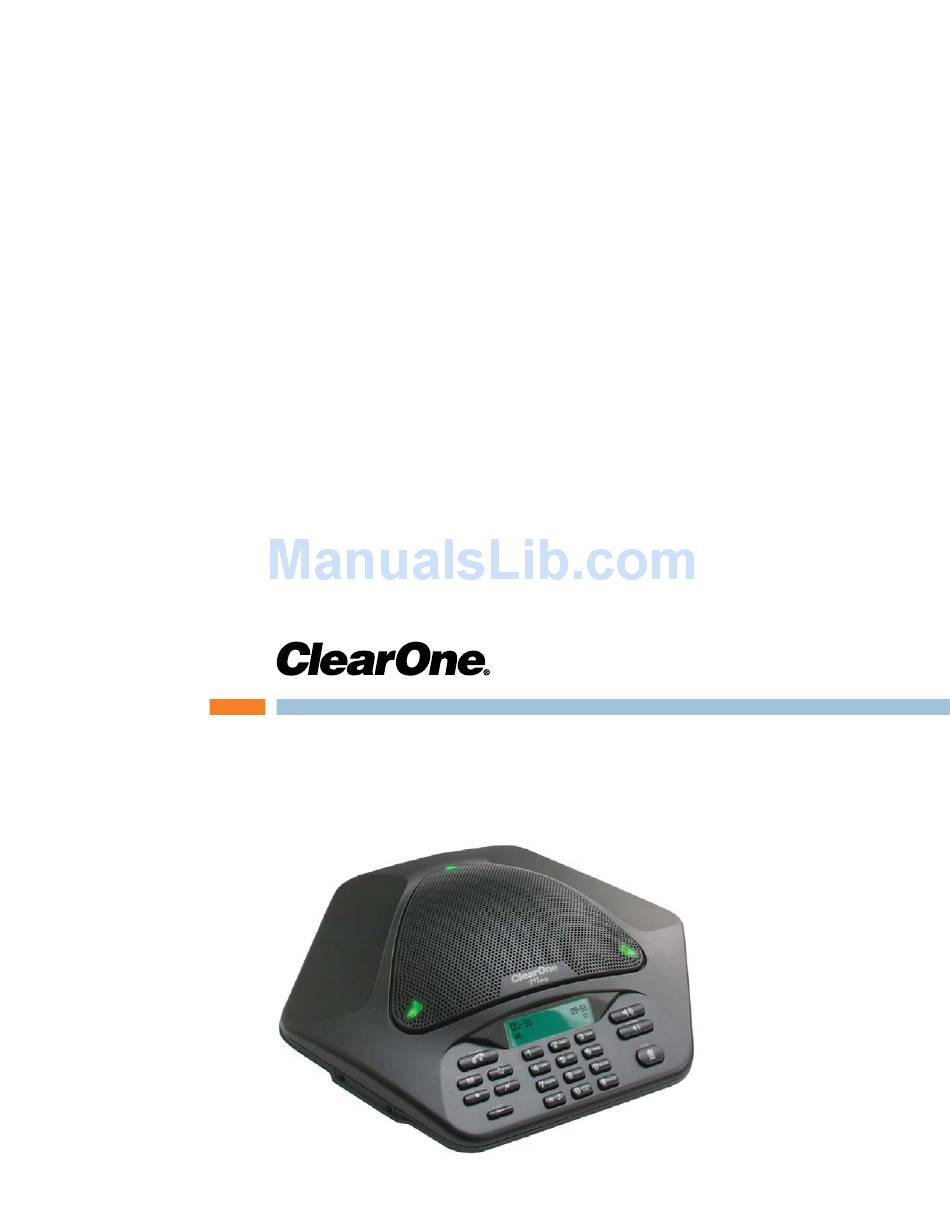

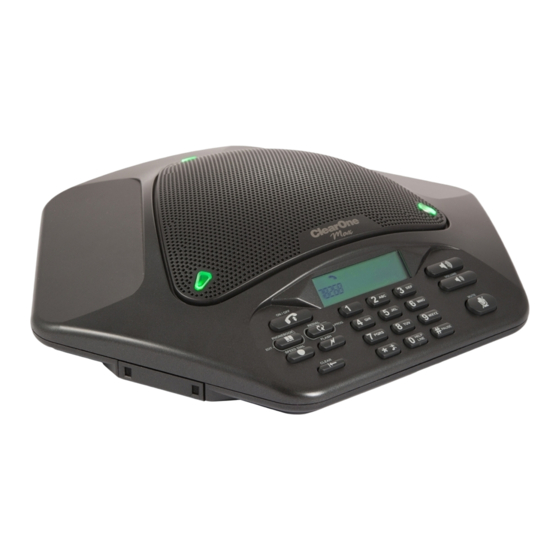

  • Page 1 MAX™ Wireless INSTALLATION & OPERATION MANUAL...

  • Page 2: Technical Support

    CLEARONE PART NO. 800-158-001 SEPTEMBER 2007 (REV 4.0) U.S. PATENT NO. D499,392. OTHER PATENTS PENDING. © 2007 ClearOne Communications, Inc. All rights reserved. No part of this document may be reproduced in any form or by any means without written permission from ClearOne Communications.

  • Page 3: Table Of Contents

    Service And Support Product Returns Unpacking Safety Information CHAPTER 2: GETTING STARTED Connecting MAX Wireless to an Analog Phone Line Connecting MAX Wireless to a Digital (PBX) Line Using Your MAX Wireless Phone CHAPTER 3: USER OPTIONS Calling Features Programming Features...

  • Page 5: Chapter 1: Introduction

    SERVICE AND SUPPORT If you need additional information on how to set up or operate your MAX Wireless conferencing phone, please contact us. We welcome and encourage your comments so that we can continue to improve our products and serve your needs.

  • Page 6: Product Returns

    Support before attempting to return your product. Make sure you return all the items that shipped with your product. UNPACKING Ensure you have received all items shown below. After unpacking, place the MAX Wireless Conferencing Pod and Base Unit on a level surface.
  • Page 7 • Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock. • Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in fire or electric shock.
  • Page 8 • Do not store this product or the battery pack in a high temperature area. When exposed to low temperatures, the battery pack should be stabilized at room temperature before use. • Your battery pack is rechargeable and can be recycled once it outlives its usefulness. Depending upon your local and state law, it might be illegal to dispose of this battery into a municipal waste system.

  • Page 9: Chapter 2: Getting Started

    CAUTION: Use only the battery pack that came with this unit. Replace only with the same battery type as recommended by manufacturer. There is risk of explosion if the battery is replaced with an incorrect battery. Contact ClearOne technical support for further assistance.
  • Page 10 Connect a recording device to the 2.5 mm mono audio jack (optional). Technical Services: 800-283-5936...

  • Page 11: Connecting Max Wireless To A Digital (Pbx) Line

    CONNECTING MAX WIRELESS TO A DIGITAL (PBX) PHONE LINE MAX Wireless phones can be connected to a PBX by using a digital-to-analog converter. To connect a MAX Wireless phone to a digital (PBX) line, use the following diagram and procedure: 1.

  • Page 12: Using Your Max Wireless Phone

    USING YOUR MAX WIRELESS PHONE To Make a Call 1. Press the ON/OFF key. You will hear a dial tone. 2. Dial the number as you would on a standard phone. The number is displayed on the LCD screen. NOTE: You can also pre-dial the number while in standby (inactive) mode and press the ON/OFF key to connect the call.
  • Page 13 To Mute a Call • Press MUTE to mute the call. • Press MUTE again to un-mute the call. To Make a Call Using the Phonebook 1. Press the ON/OFF key. You will hear a dial tone. 2. Press PHONEBOOK. 3.

  • Page 14: Chapter 3: User Options

    To Use Pulse Dialing MAX Wireless uses tone dialing by default. You can temporarily change to pulse dialing during a call. • Press the star (*) key. A special character will appear. All numbers entered after this character will use pulse dialing.

  • Page 15: Programming Features

    PROGRAMMING FEATURES To allow for individual preferences and enhanced usability, MAX Wireless provides the following programmable features: • Ringer Melody • Dialing Mode • Flash Duration • Local Phone Number • Speed Dial Numbers • Service Center Number • AGC/ALC (Automatic Gain Control/Automatic Level Control) You may also restore factory defaults.
  • Page 16 Press the 6 numeric key to enter the service center menu. Press REDIAL/PROG. Enter the number you want MAX Wireless to dial when the 0 numeric key is pressed. Press REDIAL/PROG to save the number. Press CLEAR to exit programming mode.

  • Page 17: Alert Tones

    ALERT TONES The table below describes alert tones used by MAX Wireless. Chapter 3: User Options...

  • Page 18: Chapter 4: Maxattach Wireless

    CHAPTER 4: MAXATTACH WIRELESS USING THE MAXATTACH WIRELESS CONFERENCING SYSTEM MAXAttach™ Wireless is a dual-pod conferencing system. The MAXAttach™ Wireless pods function only with their associated base unit. The base unit and conferencing pods are programmed at the factory, and they have matching serial numbers.

  • Page 19: Chapter 5: Maintenance

    Connection Checklist • The MAX Wireless base unit is plugged into the proper volt electrical outlet and its power light is on. • The battery pack in the pod section is fully charged and plugged in correctly. • The telephone cord from the base unit is securely connected to the telephone wall jack.

  • Page 20: Troubleshooting

    Troubleshooting Table Use the table below to troubleshoot your MAX Wireless system: Technical Services: 800-283-5936...

  • Page 21: Appendix

    Base Unit: Auto-adjusting power module, 100 – 240 VAC Models 50/60 Hz MAX Wireless WDCT* Telephone Connection *Call your sales representative for individual part Analog PBX (with DAC) or PSTN line numbers, or visit www.clearone.com. RJ-11C/CA11A, -12 dBm nominal...

  • Page 22: Compliance

    Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by ClearOne Communications could void the user's authority to operate the equipment.
  • Page 23 This precaution may be particularly important in rural areas. Waste Electrical and Electronic Equipment “WEEE Directive 2002/95/EC”: ClearOne is compliant with the WEEE directive. For recovery and recycling information by country, visit our website: www.clearone.com/support/recycling.php?content=main Appendix : Compliance...
  • Page 24 Imperial Way Reading Berkshire RG2 OTD United Kingdom Model: MAX Wireless, MAXAttach Wireless. Product Standard(s) to which Conformity of the Council Directive(s) is declared: EMC - 2004/108/EC “Electromagnetic Compatibility (EMC) Directive”: EN 55022: 2006 (Emissions) Information technology equipment - Radio disturbance characteristics - Limits and methods of measurement.

  • Page 25: Warranty

    Chief Technology Officer Managing Director - EMEA North WARRANTY ClearOne Communications, Inc. (Manufacturer) warrants that this product is free of defects in both materials and workmanship. For warranty information and coverage, refer to the ClearOne website at www.clearone.com. ClearOne Communications, Inc.
