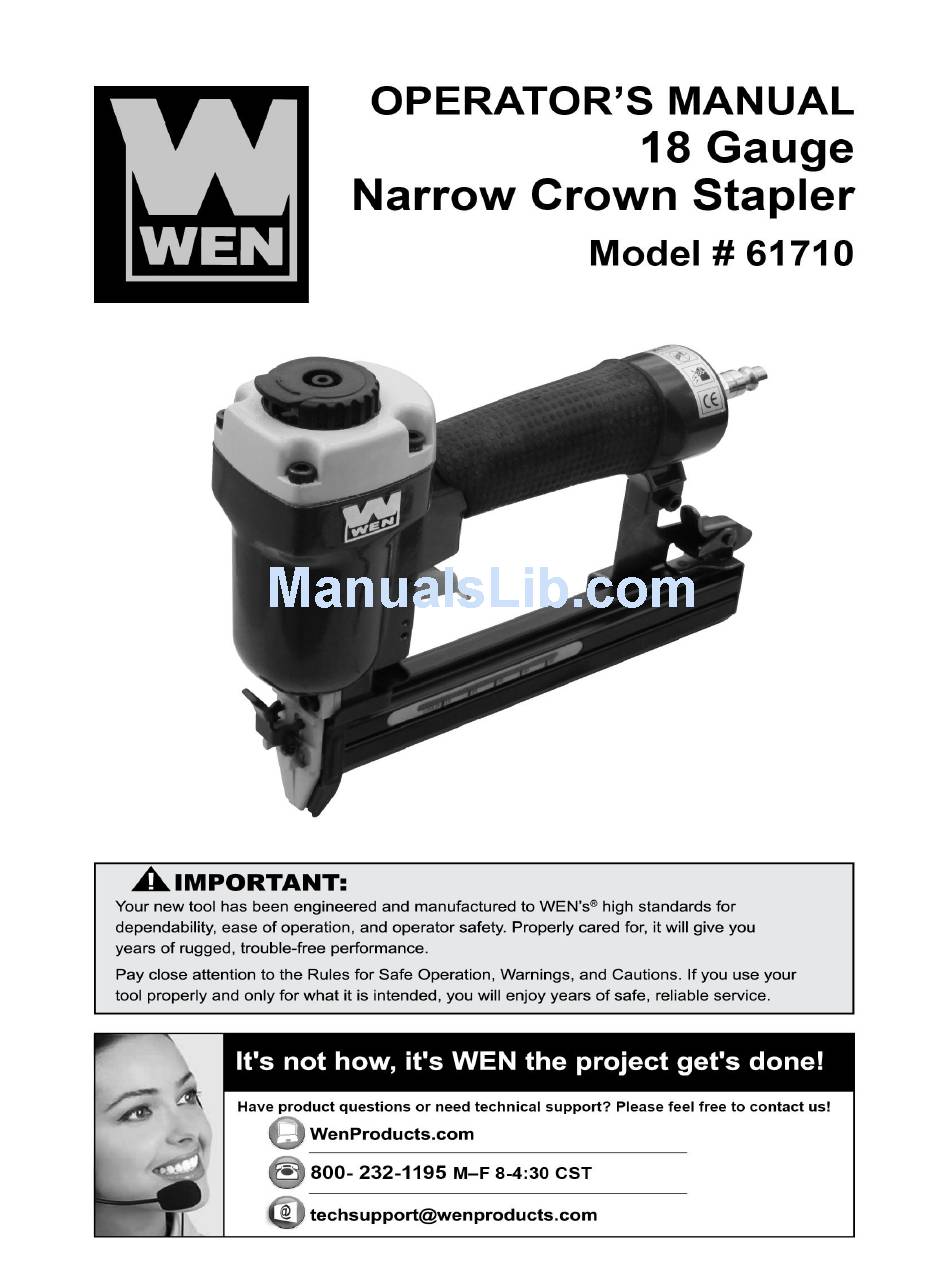

Summary of Contents for Wen 61710
-
Page 2: Table Of Contents
Table of Contents Technical Data…………………………………………………………… 2 General Safety Rules……………………………………………………… 3 Specific Safety Rules for Stapler………………………………………... Know Your Stapler………………………………………………………. 8 Operation………………………………………………………………... Troubleshooting……………………………………………………….. Exploded View………………………………………………………….. Parts List…………………………………………………………………. 14 Warranty………………………………………………………………… Technical Data Operating pressure range 60 psi-100 psi Air inlet 1/4" NPT Air consumption 1.6 CFM Nail size range 3/8"--1-1/4"... -
Page 3: General Safety Rules
Important Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. For service, we suggest you return the tool to WEN PRODUCTS a division of ® Great Lakes Technologies, LLC. for repair. When servicing, use only identical WEN replacement parts. - Page 4 Only use air hose that is rated for a maximum working pressure of at least 150 psi (10.3 BAR) or 150% of the maximum system pressure, which ever is greater. Do not use bottled gases to power this tool. Bottled compressed gases such as oxygen, carbon dioxide, nitrogen, hydrogen, propane, acetylene or air are not for use with pneumatic tools.
- Page 5 Refer to the Maintenance and Repairs for detailed information on the proper maintenance of the tool. Always operate the tool in a clean, lighted area. Be sure the work surface is clear of any debris and be careful not to lose footing when working in elevated environments such as rooftops.
-
Page 6: Specific Safety Rules For Stapler
Specific Safety Rules for Stapler 1. KEEP WORKING AREA CLEAN. Cluttered areas invite injuries. 2. DON’T ALLOW CHILDREN KEEP AT THE WORKING AREA. Don’t let them handle the tool. 3. DO NOT OPERATE THIS TOOL IF UNDER THE INFLUENCE OF ALCOHOL OR DRUGS. - Page 7 17. USE THE CORRECT AIR CONNECTOR. The connector on the tool must not hold pressure when the air supply is disconnected. If the wrong fitting is used, the tool can be charged with air after being disconnected and still be able to drive a fastener. 18.
-
Page 8: Know Your Stapler

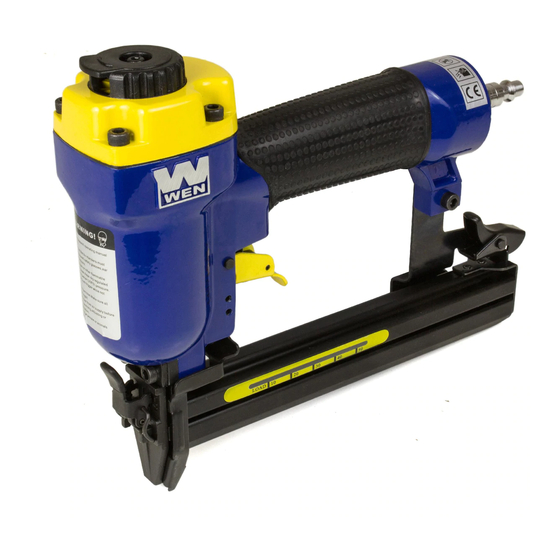

Know Your Stapler 1-Jam Clearing Latch 2-Contact Trip 3-Magazine 4-Air Inlet 5-Trigger 6-Exhaust... -
Page 9: Operation
Operation WARNING - if any parts are missing, do not operate this tool until the missing parts are replaced. Failure to do so could result in possible serious personal injury. Lubrication This tool requires lubrication before using the tool for the first time and before each use. If an inline oiler is used, manual lubrication through the air inlet is not required. -
Page 10: Actuating Tool
Loading the fasteners Caution: Always disconnect the tool from the air supply before loading the fasteners. 1. Depress the lock to release the movable magazine and pull the magazine out fully. 2. Place a full clip of the specified type and size fasteners on the fixed magazine, up to 100 fasteners may be loaded in the magazine. - Page 11 Clearing a jammed nail Warning: Disconnect air line from tool and remove fasteners from magazine before making adjustments or personal injury may result. If a nail becomes jammed in the nosepiece, keep the tool pointed away from you and follow these instructions to clear: 1.
-
Page 12: Troubleshooting
Troubleshooting Caution: Stop using the tool immediately if any of the following problems occur. Serious personal injury could occur. Any repairs or replacements must be done by a qualified person or an ® authorized WEN service center only. Problem Cause... -
Page 13: Exploded View
Exploded View... -
Page 14: Parts List
Parts List Item Stock # Description Item Stock # Description 61710-001 SCREW 61710-035 TRIGGER VALVE GUIDE 61710-002 BUSHING 61710-036 TRIGGER SPRING 61710-003 EXHAUST COVER 61710-037 61710-004 SEAL 61710-038 PLATE 61710-005 SCREW 61710-039 61710-006 SPRING WASHER 61710-040 TRIGGER 61710-007 CYLINDER CAP... -
Page 15: Warranty
GREAT LAKES TECHNOLOGIES, LLC ("Seller") warrants to the original purchaser only, that all WEN consumer power tools will be free from defects in material or workmanship for a period of one (1) year from date of purchase. Ninety days for all WEN products, if the tool is used for professional use.
