Your new tool has been engineered and manufactured to WEN's highest standards for dependability, ease
of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If
you use your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
Please refer to wenproducts.com for the most up-to-date instruction manual.
IMPORTANT:
neeD HelP? contact uS!
Have product questions? Need technical support?
Please feel free to contact us at:
800-232-1195
techsupport@wenproducts.com
WENPRODUCTS.COM
Pneumatic
(M-F 8AM-5PM CST)
5-in-1
tool
Model # 61635
bit.ly/wenvideo
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Wen 61635
Summary of Contents for Wen 61635
- Page 1 IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
- Page 2 Operation Maintenance Troubleshooting Guide Exploded View & Parts List Warranty Statement PrOduCT SPECiFiCATiONS Model Number: 61635 Operating Pressure range: 45 to 90 PSi (3 to 6.3 bar) Maximum Pressure: 91 PSi (6.3 bar) Minimum Air Consumption: 5.65 CFM Maximum Air Consumption (at 90 PSi): 7.75 CFM...
- Page 3 SAFETY iNTrOduCTiON Thanks for purchasing the WEN Pneumatic Spade. We know you are excited to put your tool to work, but first, please take a moment to read through the manual. This manual provides information regarding potential safety concerns, as well as helpful assembly and operating instructions. Safe operation of this tool requires that you read and understand this operator’s manual and all labels affixed to the tool.
- Page 4 iMPOrTANT SAFETY ruLES Safety is a combination of common sense, staying alert and knowing how your item works. SaVE THESE SafETy INSTRUCTIONS. WaRNING: To avoid mistakes and serious injury, do not use your tool until the following steps have been read and understood. LEArN the tool’s applications, limitations, and possible hazards. WORK aREa SafETy 1.
- Page 5 iMPOrTANT SAFETY ruLES aIR SUPPly SafETy 1. use only clean, dry, and regulated air. Condensation from an air compressor can rust and damage the internal workings of the tool. 2. dANGEr OF ExPLOSiON ANd/Or SEriOuS PErSONAL iNjurY. do not use bottled gases to power this tool.
- Page 6 iMPOrTANT SAFETY ruLES TOOl MaINTENaNCE 1. Always disconnect the air supply before making adjustments or performing maintenance on the tool. 2. do not alter or modify the tool in any way. do not remove, tamper with, or otherwise cause the tool, trigger or safety bracket to become inoperable.

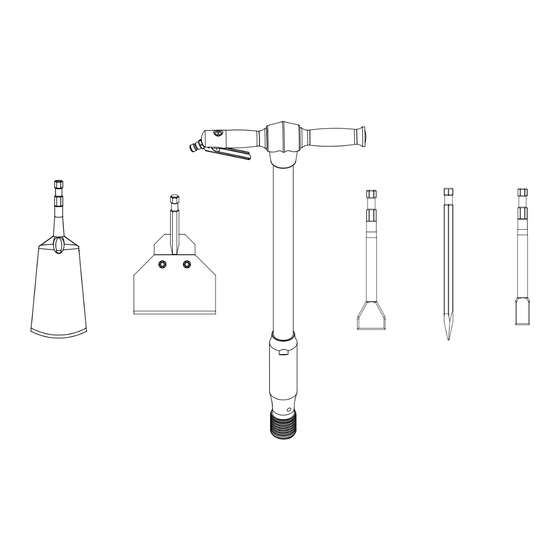

- Page 7 KNOW YOur PNEuMATiC SPAdE Carefully unpack the tool and accessories from the packaging. Check all components against the diagram and packing list below. if any part is damaged or missing, please contact our customer service department at (800) 232-1195, M-F 8-5 CST or email us at techsupport@wenproducts.com. Air Supply inlet Trigger Locking Sleeve...
- Page 8 Check the tool and all attachments to make sure they are free of damage before use. accessory Name appearance Recommended Purpose • demolition work • removing tiles Flat Wide Chisel (Part No. 61635-027) • removing plaster • demolition work Flat Narrow Chisel • removing tiles (Part No. 61635-028) • removing plaster •...
- Page 9 WaRNING: When handling sharp, pointed or hot attachments, always wear suitable protective gloves to avoid injuries. NOTE: Only use attachments that are designed for this tool. replacement tools can be purchased from wen- products.com by searching their part number, outlined on the previous page.
- Page 10 Workload Recommended Size Recommended WEN Compressor WEN 2289 Light Work 6.5 gallon (24 L)
- Page 11 OPErATiON WaRNING: Serious or even fatal injuries can occur if the tool is pointed at persons or animals, even if there is no attachment installed in the tool. NEVEr point the tool at people or animals. WaRNING: user must wear proper eye and hearing protection when operating this tool. Stay alert and keep proper balance at all times.
- Page 12 MAiNTENANCE WaRNING: To prevent accidental startup, always disconnect the tool from the air supply before carrying out any adjustments, service or maintenance. ClEaNING Keep the tool free of dirt and dust. After each use, wipe the tool clean with a damp towel and some soft soap. Blow the tool clean using compressed air.
- Page 13 Solution Add a few drops of oil into the connection hose and into the attachment receiver. Piston (Part No. 61635-021) is jammed/rusted in the housing due to a lack of lubrication oil Press the piston back with a striking bolt through the attachment receiver.
- Page 14 ExPLOdEd ViEW & PArTS LiST...
- Page 15 ExPLOdEd ViEW & PArTS LiST Part No. Description 61635-001 Plug 61635-002 Handle Sleeve 61635-003 Handle 61635-004 Switch Sleeve 61635-005 Valve Washer 61635-006 Valve rod 61635-007 Valve Spring 61635-008 Screw Plug 61635-009 Handle Body 61635-010 Air inlet 61635-011 Trigger Pin 61635-012...
- Page 16 LiMiTEd TWO YEAr WArrANTY WEN Products is committed to build tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LiMiTEd WArrANTY OF WEN CONSuMEr POWEr TOOLS PrOduCTS FOr HOME uSE GrEAT LAKES TECHNOLOGiES, LLC (“Seller”) warrants to the original purchaser only, that all WEN consumer power tools will be free from defects in material or workmanship for a period of two (2) years from date of purchase.
