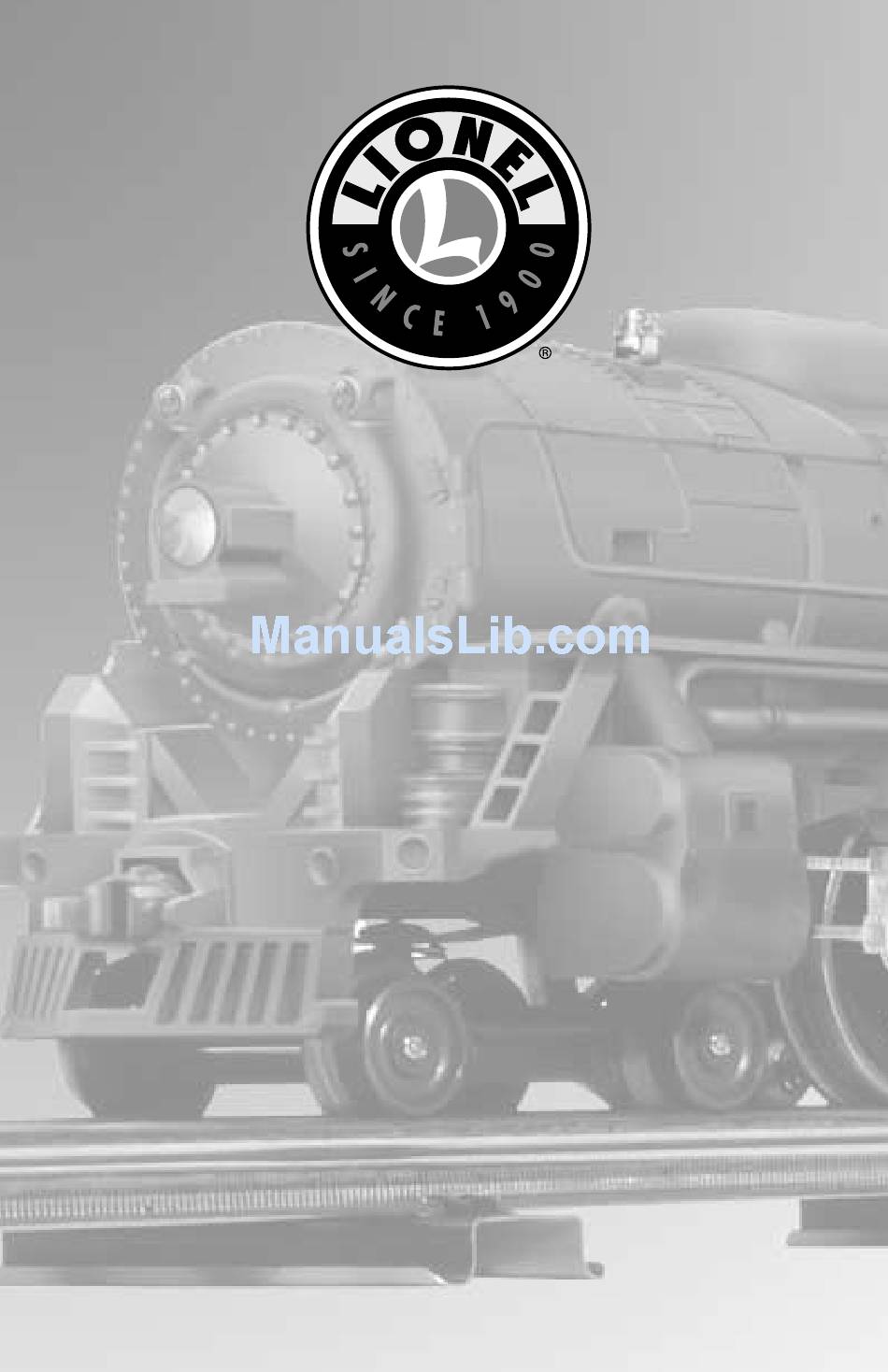

Hudson
Steam Locomotive
Owner's Manual
Featuring Conventional RailSounds

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hudson and is the answer not in the manual?

Questions and answers

Summary of Contents for Lionel Hudson

  • Page 1 71-8696-250 3/02 Hudson Steam Locomotive Owner’s Manual Featuring Conventional RailSounds...
  • Page 2: Table Of Contents

    Adding fluid to your locomotive’s smoke generator Replacing your locomotive’s lamps Lubricating your locomotive 10-11 Replacing your locomotive’s Traction Tires Lionel Service The following Lionel marks may be used throughout this instruction manual and are protected under law. All rights reserved. Lionel ® , TrainMaster ®...
  • Page 3: Transformer Operations

    Move ‘em out! • Get your locomotive moving. Press the DIR button on your CAB-1 remote or Lionel transformer. This advances the Lionel reverse unit to the next operating state in the repeating sequence: forward, neutral, reverse, and neutral. • Adjust track voltage until your locomotive moves at your desired speed. To increase speed, increase track voltage.
  • Page 4: Locking Your Locomotive Into A Single Operational State

    Transformer operations Locking your locomotive into a single operational state he reverse unit inside your Lionel loco- in the sequence. For instance, if the locomo- motive is an electronic device that acts tive is moving forward, then is stopped and like the transmission in your car.
  • Page 5: Using Your Locomotive's Magnetic Coupler

    Transformer operations Using your locomotive’s magnetic coupler he rear of your Lionel locomotive’s ten- One operating technique favored by Lionel der is equipped with an operating mag- railroaders is the “moving uncouple.” Press netic knuckle coupler, a revolutionary design the UNCOUPLE button as the locomotive first introduced by Lionel in 1945.
  • Page 6: Installing A Lionel Sound Activation Button

    Sound Activation Button for whistle Lionel no. 610-5906-001 Sound Activation Button for bell The no. 610-5906-001 button works with any Lionel AC transformer except Note! no. 6-4690 Type MW. Transformers made by other manufacturers may not be compatible with RailSounds.
  • Page 7: Conventional Railsounds Operations

    Conventional RailSounds operations Experiencing the Conventional Railsounds system ith Conventional RailSounds, you Begin by removing the tender body to experience the sounds of real railroad- access the battery clip. Remove the three ten- ing like never before. Simply put, it’s the der body mounting screws and lift the body most sophisticated, authentic model railroad shell away.
  • Page 8: Features Of Your Locomotive's Railsounds Sound System

    Conventional RailSounds operations Features of your locomotive’s RailSounds sound system Whistle. Press the WHISTLE button on your Variable chuff rate. The speed of your controller and your locomotive’s whistle will locomotive determines the rate of steam sound as long as the button is pressed. chuffing.
  • Page 9: Replacing Your Locomotive's Lamps

    (see page 4 for its The smoke generator requires the periodic location). Move the switch to the OFF position addition of Lionel smoke fluid in order to and your locomotive will stop smoking. function. Pierce the tube end with a pin, then...
  • Page 10: Lubricating Your Steam Locomotive

    Remove accumulated dirt and and Maintenance Kit (no. 6-62927), avail- dust before lubricating, and always lubricate able from your Lionel dealer. Two basic rules any locomotive emerging from prolonged to keep in mind: never over-lubricate (a storage. Also, lightly lubricate the steam small amount will do), and avoid getting locomotive’s side rods after every 10 hours of...
  • Page 11: Replacing Your Locomotive's Traction Tires

    Do not lubricate your locomotive’s electric any difficulty in the operation of your motor. It has been pretested and all the nec- engine, see the Lionel Service section for essary moving parts have been sufficiently more information. lubricated for life at the factory. If you have Replacing your locomotive’s Traction Tires...
  • Page 12: Lionel Service

    Lionel product, including all to the nearest Authorized Lionel Service Center. mechanical and electrical components, Your nearest Lionel Service Center can be found by moving parts, motors and structural calling 1-800-4-Lionel, or by accessing our Website components, except for light bulbs, is warranted to at www.lionel.com.
