Ingersoll-Rand 650715-C Operator's Manual

OPERATOR'S MANUAL
INCLUDE OPERATOR'S MANUAL: 66610X-X-C 1" Diaphragm Pump (pn 97999-100)
(METALLIC) DUAL INLET MANIFOLD / SINGLE OUTLET MANIFOLD
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.

GENERAL DESCRIPTION

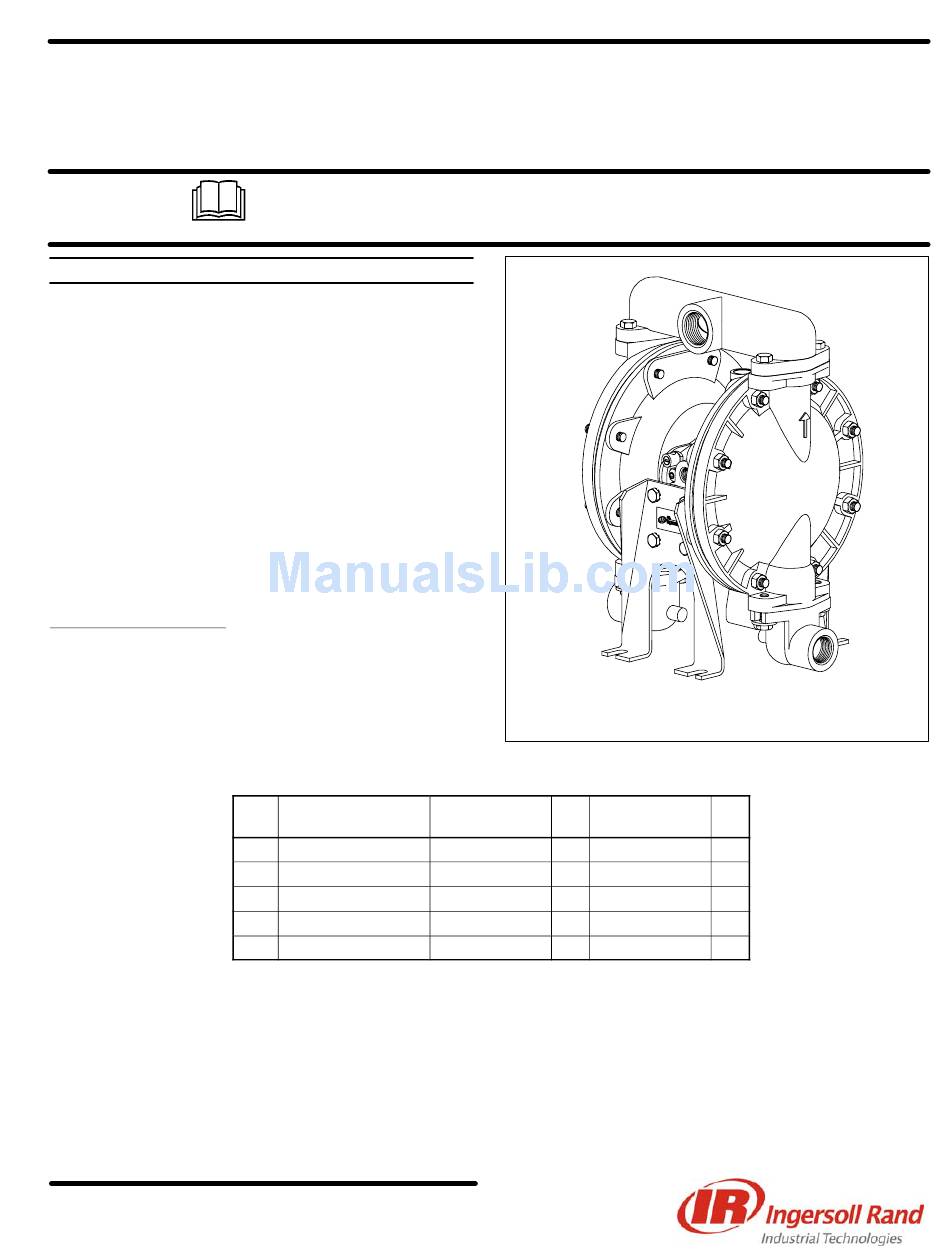

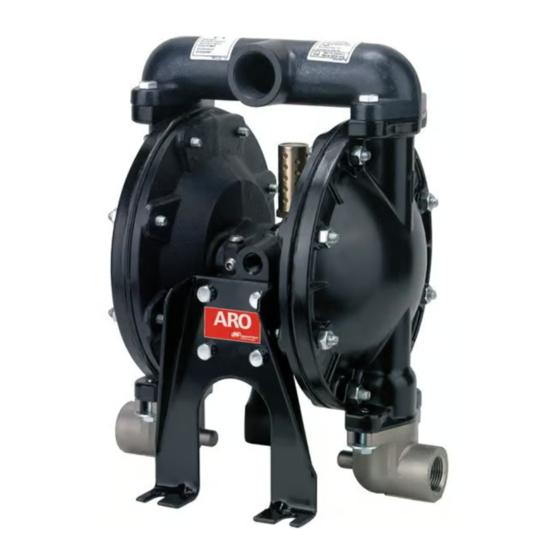

Model 650715-C diaphragm pump is designed for mixing anti-freeze
and water in 50 / 50 proportion for automotive coolant systems.
The pump is similar to other standard models in the 1" metallic dia-
phragm pump family. A 66610X-X-C Operator's Manual should be used
for General Information, Installation, Operation and Maintenance. This
model is modified to include dual inlets.
This pump would be typically used in conjunction with two (2) 3/4 - 14
N.P.T. x 1 - 11-1/2 N.P.T. non-collapsing siphon hoses for supply, one is
for water and one is for anti-freeze. A 1 - 11-1/2 N.P.T. delivery hose with
a control handle will deliver a 50 / 50 mix of water and anti-freeze when
the trigger is activated.
This pump includes an Aluminum center body, Aluminum outlet man-
ifold, Stainless steel inlets, Nitrile diaphragms and Acetal balls. Refer to
the chart below for part substitutions.
650715-C is similar to model 666100-362-C.

SERVICE KITS AVAILABLE

637119-62-C (Fluid Section)
637118-C (Air Section)
INGERSOLL RAND COMPANY
D
P.O. BOX 151 ONE ARO CENTER
&
D
(800) 276-4658 FAX (800) 266-7016
1" DIAPHRAGM PUMP
FOR 50 / 50 ANTI-FREEZE MIXING
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
Item Description
(size)
6 Washer
(3-5/8" o.d.)
14 Screw
(1/2" - 20 X 1'')
16 Outlet Manifold
18 90_ Inlet Manifold
24 Washer
(5/16")
s
Tighten to 35 - 45 ft lbs (47.5 - 61.0 Nm).
LTD
D
BRYAN, OHIO 43506-0151
E
2006 CCN 81376808
Model
666100-362-C Qty 650715-C
93441-2 (2) 93441-1
Y5-85-K (2) Y5-85-T
92001 (2)
−−−−− −−−
−−−−− −−− Y13-5-C
650715-C
RELEASED:
REVISED:
(REV. F)
650715-C ANTI-FREEZE
DIAPHRAGM PUMP
Model
Qty
(2)
s
(2)
92001 (1)
92847 (2)
(4)
3-7-90
1-14-06
