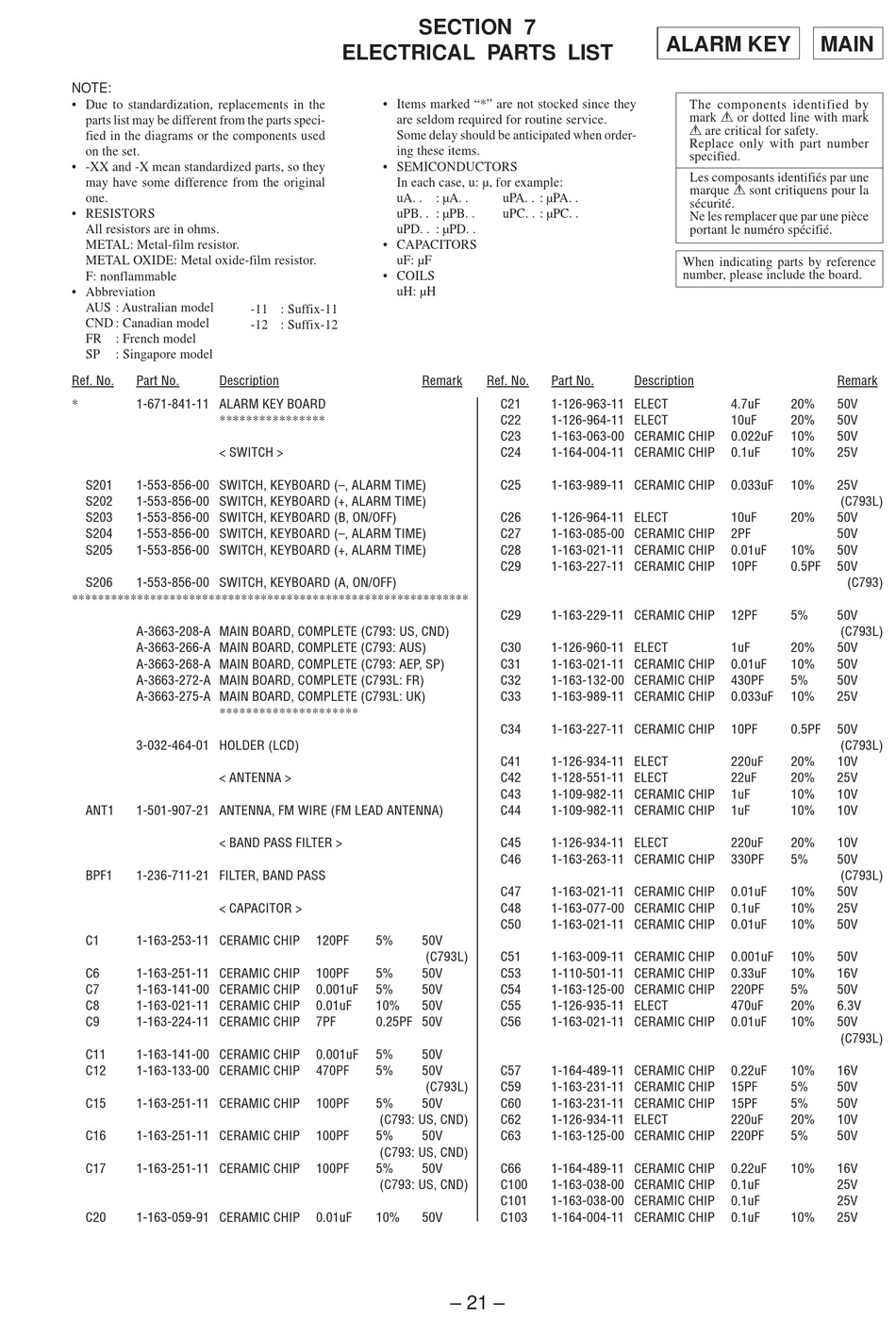

Electrical Parts List; Components Identified By Mark ! Or Dotted - Sony ICF-C793 Service Manual

NOTE:
• Due to standardization, replacements in the
parts list may be different from the parts speci-
fied in the diagrams or the components used
on the set.
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• RESISTORS
All resistors are in ohms.
METAL: Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F: nonflammable
• Abbreviation
AUS : Australian model
CND : Canadian model
FR : French model
SP : Singapore model
Ref. No. Part No. Description
1-671-841-11 ALARM KEY BOARD
*
****************
< SWITCH >
S201 1-553-856-00 SWITCH, KEYBOARD (–, ALARM TIME)
S202 1-553-856-00 SWITCH, KEYBOARD (+, ALARM TIME)
S203 1-553-856-00 SWITCH, KEYBOARD (B, ON/OFF)
S204 1-553-856-00 SWITCH, KEYBOARD (–, ALARM TIME)
S205 1-553-856-00 SWITCH, KEYBOARD (+, ALARM TIME)
S206 1-553-856-00 SWITCH, KEYBOARD (A, ON/OFF)
*************************************************************
A-3663-208-A MAIN BOARD, COMPLETE (C793: US, CND)
A-3663-266-A MAIN BOARD, COMPLETE (C793: AUS)
A-3663-268-A MAIN BOARD, COMPLETE (C793: AEP, SP)
A-3663-272-A MAIN BOARD, COMPLETE (C793L: FR)
A-3663-275-A MAIN BOARD, COMPLETE (C793L: UK)
*********************
3-032-464-01 HOLDER (LCD)
< ANTENNA >
ANT1 1-501-907-21 ANTENNA, FM WIRE (FM LEAD ANTENNA)
< BAND PASS FILTER >
BPF1 1-236-711-21 FILTER, BAND PASS
< CAPACITOR >
C1 1-163-253-11 CERAMIC CHIP
C6 1-163-251-11 CERAMIC CHIP
C7 1-163-141-00 CERAMIC CHIP
C8 1-163-021-11 CERAMIC CHIP
C9 1-163-224-11 CERAMIC CHIP
C11 1-163-141-00 CERAMIC CHIP
C12 1-163-133-00 CERAMIC CHIP
C15 1-163-251-11 CERAMIC CHIP
C16 1-163-251-11 CERAMIC CHIP
C17 1-163-251-11 CERAMIC CHIP
C20 1-163-059-91 CERAMIC CHIP

ELECTRICAL PARTS LIST

• Items marked "*" are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when order-
ing these items.
• SEMICONDUCTORS
In each case, u: µ, for example:
uA. . : µA. .
uPB. . : µPB. .
uPD. . : µPD. .
• CAPACITORS
uF: µF
• COILS
uH: µH
-11 : Suffix-11
-12 : Suffix-12
120PF 5%
100PF 5%
0.001uF 5%
0.01uF 10%
7PF 0.25PF 50V
0.001uF 5%
470PF 5%
100PF 5%
(C793: US, CND)
100PF 5%
(C793: US, CND)
100PF 5%
(C793: US, CND)
0.01uF 10%
SECTION 7
uPA. . : µPA. .
uPC. . : µPC. .
Remark Ref. No. Part No.
C21 1-126-963-11 ELECT
C22 1-126-964-11 ELECT
C23 1-163-063-00 CERAMIC CHIP
C24 1-164-004-11 CERAMIC CHIP
C25 1-163-989-11 CERAMIC CHIP
C26 1-126-964-11 ELECT
C27 1-163-085-00 CERAMIC CHIP
C28 1-163-021-11 CERAMIC CHIP
C29 1-163-227-11 CERAMIC CHIP
C29 1-163-229-11 CERAMIC CHIP
C30 1-126-960-11 ELECT
C31 1-163-021-11 CERAMIC CHIP
C32 1-163-132-00 CERAMIC CHIP
C33 1-163-989-11 CERAMIC CHIP
C34 1-163-227-11 CERAMIC CHIP
C41 1-126-934-11 ELECT
C42 1-128-551-11 ELECT
C43 1-109-982-11 CERAMIC CHIP
C44 1-109-982-11 CERAMIC CHIP
C45 1-126-934-11 ELECT
C46 1-163-263-11 CERAMIC CHIP
C47 1-163-021-11 CERAMIC CHIP
C48 1-163-077-00 CERAMIC CHIP
C50 1-163-021-11 CERAMIC CHIP
50V
(C793L) C51 1-163-009-11 CERAMIC CHIP
50V C53 1-110-501-11 CERAMIC CHIP
50V C54 1-163-125-00 CERAMIC CHIP
50V C55 1-126-935-11 ELECT
C56 1-163-021-11 CERAMIC CHIP
50V
50V C57 1-164-489-11 CERAMIC CHIP
(C793L) C59 1-163-231-11 CERAMIC CHIP
50V C60 1-163-231-11 CERAMIC CHIP
C62 1-126-934-11 ELECT
50V C63 1-163-125-00 CERAMIC CHIP
50V C66 1-164-489-11 CERAMIC CHIP
C100 1-163-038-00 CERAMIC CHIP
C101 1-163-038-00 CERAMIC CHIP
50V C103 1-164-004-11 CERAMIC CHIP
– 21 –
ALARM KEY
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
When indicating parts by reference
number, please include the board.
Description
4.7uF 20%
10uF 20%
0.022uF 10%
0.1uF 10%
0.033uF 10%
10uF 20%
2PF
0.01uF 10%
10PF 0.5PF
12PF 5%
1uF 20%
0.01uF 10%
430PF 5%
0.033uF 10%
10PF 0.5PF
220uF 20%
22uF 20%
1uF 10%
1uF 10%
220uF 20%
330PF 5%
0.01uF 10%
0.1uF 10%
0.01uF 10%
0.001uF 10%
0.33uF 10%
220PF 5%
470uF 20%
0.01uF 10%
0.22uF 10%
15PF 5%
15PF 5%
220uF 20%
220PF 5%
0.22uF 10%
0.1uF
0.1uF
0.1uF 10%
MAIN
Remark
50V
50V
50V
25V
25V
(C793L)
50V
50V
50V
50V
(C793)
50V
(C793L)
50V
50V
50V
25V
50V
(C793L)
10V
25V
10V
10V
10V
50V
(C793L)
50V
25V
50V
50V
16V
50V
6.3V
50V
(C793L)
16V
50V
50V
10V
50V
16V
25V
25V
25V
