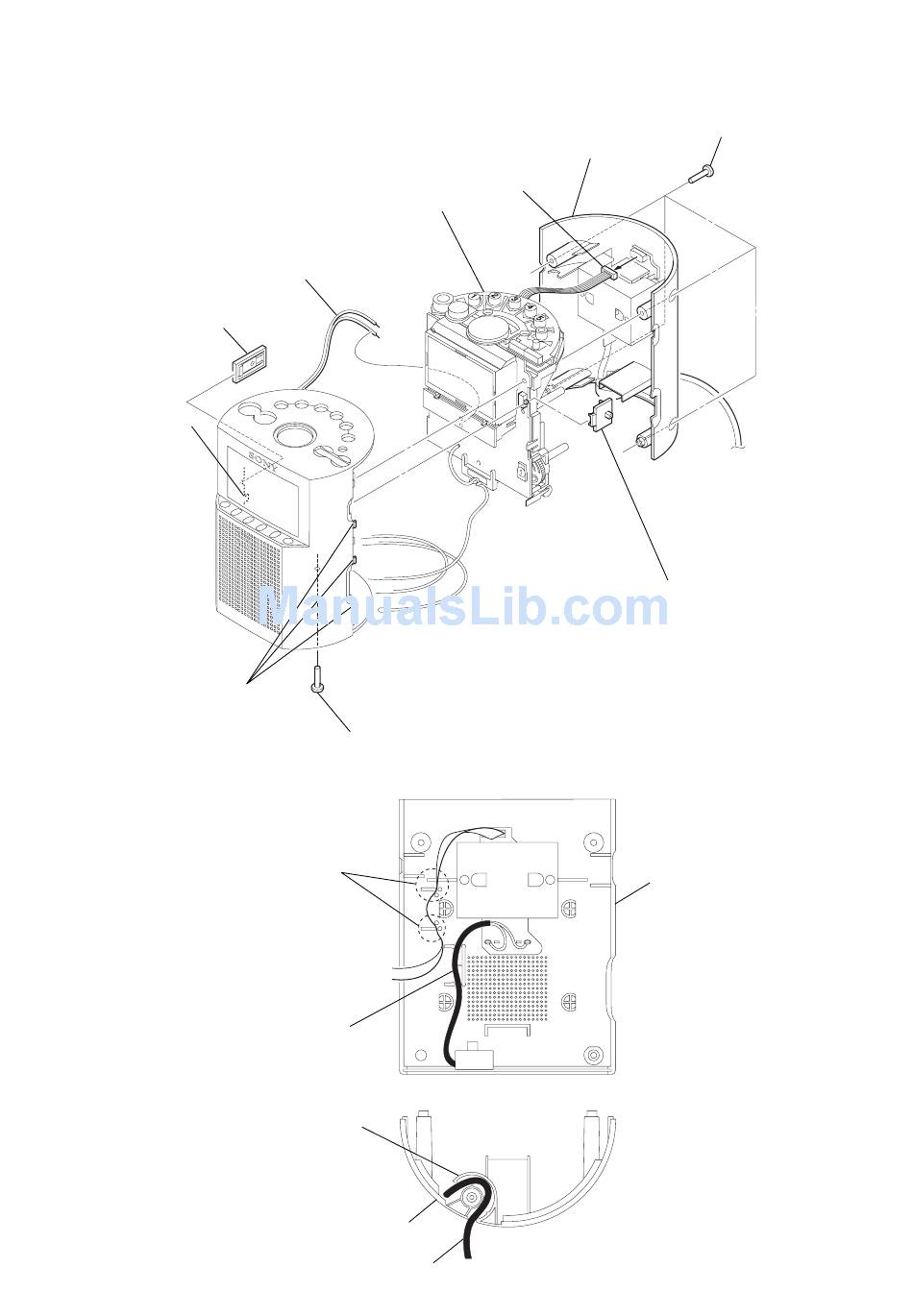

Note: Follow the disassembly procedure in the numerical order given.
CHASSIS ASS'Y
5 Break the soldering of
speaker lead.
6 button (DST)
2 claw
2 three claws
POWER CORD SETTING
Set the power cord as illustrated below,
then install the cabinet.
Put the secondary flat cable
between bosses to fix.
SECTION 2
DISASSEMBLY
7 chassis assy
1 screw (P3 × 14)
power cord
boss
rear cabinet
power cord
3 rear cabinet
4 connector
(CN301)
– 5 –
1 four screws (P3 × 14)
6 knob (brightness)
rear cabinet
