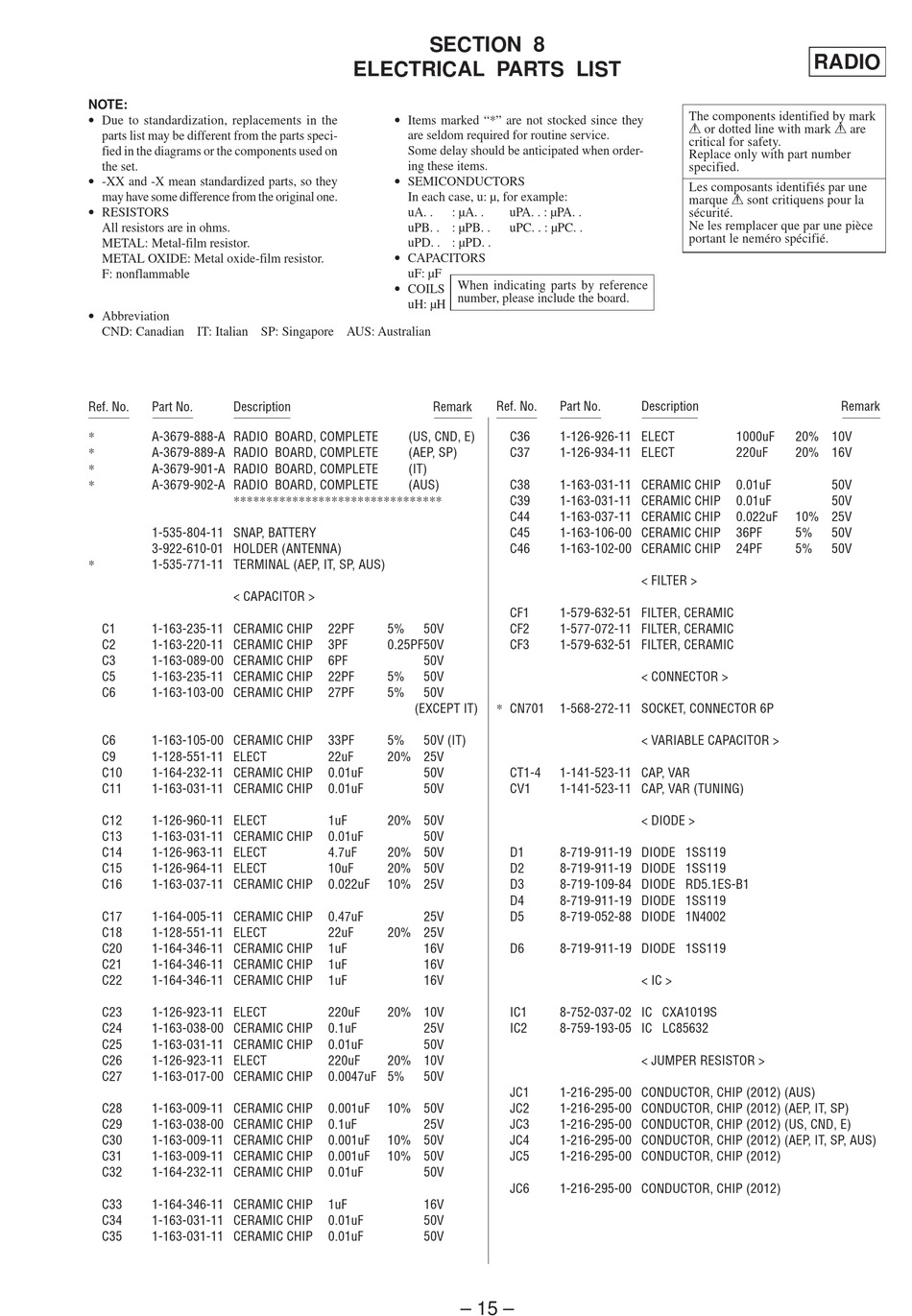

Section 8 Electrical Parts List - Sony ICF-C160 Service Manual

NOTE:
• Due to standardization, replacements in the
parts list may be different from the parts speci-
fied in the diagrams or the components used on
the set.
• -XX and -X mean standardized parts, so they
may have some difference from the original one.
• RESISTORS
All resistors are in ohms.
METAL: Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F: nonflammable
• Abbreviation
CND: Canadian IT: Italian SP: Singapore AUS: Australian
Ref. No. Part No. Description
* A-3679-888-A RADIO BOARD, COMPLETE
A-3679-889-A RADIO BOARD, COMPLETE
*
A-3679-901-A RADIO BOARD, COMPLETE
*
A-3679-902-A RADIO BOARD, COMPLETE
*
********************************
1-535-804-11 SNAP, BATTERY
3-922-610-01 HOLDER (ANTENNA)
1-535-771-11 TERMINAL (AEP, IT, SP, AUS)
*
< CAPACITOR >
C1 1-163-235-11 CERAMIC CHIP
C2 1-163-220-11 CERAMIC CHIP
C3 1-163-089-00 CERAMIC CHIP
C5 1-163-235-11 CERAMIC CHIP
C6 1-163-103-00 CERAMIC CHIP
C6 1-163-105-00 CERAMIC CHIP
C9 1-128-551-11 ELECT
C10 1-164-232-11 CERAMIC CHIP
C11 1-163-031-11 CERAMIC CHIP
C12 1-126-960-11 ELECT
C13 1-163-031-11 CERAMIC CHIP
C14 1-126-963-11 ELECT
C15 1-126-964-11 ELECT
C16 1-163-037-11 CERAMIC CHIP
C17 1-164-005-11 CERAMIC CHIP
C18 1-128-551-11 ELECT
C20 1-164-346-11 CERAMIC CHIP
C21 1-164-346-11 CERAMIC CHIP
C22 1-164-346-11 CERAMIC CHIP
C23 1-126-923-11 ELECT
C24 1-163-038-00 CERAMIC CHIP
C25 1-163-031-11 CERAMIC CHIP
C26 1-126-923-11 ELECT
C27 1-163-017-00 CERAMIC CHIP
C28 1-163-009-11 CERAMIC CHIP
C29 1-163-038-00 CERAMIC CHIP
C30 1-163-009-11 CERAMIC CHIP
C31 1-163-009-11 CERAMIC CHIP
C32 1-164-232-11 CERAMIC CHIP
C33 1-164-346-11 CERAMIC CHIP
C34 1-163-031-11 CERAMIC CHIP
C35 1-163-031-11 CERAMIC CHIP
SECTION 8
ELECTRICAL PARTS LIST
• Items marked "*" are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when order-
ing these items.
• SEMICONDUCTORS
In each case, u: µ, for example:
uA. . : µA. .
uPB. . : µPB. .
uPD. . : µPD. .
• CAPACITORS
uF: µF
• COILS
When indicating parts by reference
number, please include the board.
uH: µH
Remark Ref. No.
(US, CND, E)
(AEP, SP)
(IT)
(AUS)
22PF 5% 50V
3PF 0.25PF50V
6PF 50V
22PF 5% 50V
27PF 5% 50V
(EXCEPT IT) * CN701
33PF 5% 50V (IT)
22uF 20% 25V
0.01uF 50V
0.01uF 50V
1uF 20% 50V
0.01uF 50V
4.7uF 20% 50V
10uF 20% 50V
0.022uF 10% 25V
0.47uF 25V
22uF 20% 25V
1uF 16V
1uF 16V
1uF 16V
220uF 20% 10V
0.1uF 25V
0.01uF 50V
220uF 20% 10V
0.0047uF 5% 50V
0.001uF 10% 50V
0.1uF 25V
0.001uF 10% 50V
0.001uF 10% 50V
0.01uF 50V
1uF 16V
0.01uF 50V
0.01uF 50V
– 15 –
uPA. . : µPA. .
uPC. . : µPC. .
Part No. Description
C36 1-126-926-11 ELECT
C37 1-126-934-11 ELECT
C38 1-163-031-11 CERAMIC CHIP
C39 1-163-031-11 CERAMIC CHIP
C44 1-163-037-11 CERAMIC CHIP
C45 1-163-106-00 CERAMIC CHIP
C46 1-163-102-00 CERAMIC CHIP
< FILTER >
CF1 1-579-632-51 FILTER, CERAMIC
CF2 1-577-072-11 FILTER, CERAMIC
CF3 1-579-632-51 FILTER, CERAMIC
< CONNECTOR >
1-568-272-11 SOCKET, CONNECTOR 6P
< VARIABLE CAPACITOR >
CT1-4 1-141-523-11 CAP, VAR
CV1 1-141-523-11 CAP, VAR (TUNING)
< DIODE >
D1 8-719-911-19 DIODE 1SS119
D2 8-719-911-19 DIODE 1SS119
D3 8-719-109-84 DIODE RD5.1ES-B1
D4 8-719-911-19 DIODE 1SS119
D5 8-719-052-88 DIODE 1N4002
D6 8-719-911-19 DIODE 1SS119
< IC >
IC1 8-752-037-02 IC CXA1019S
IC2 8-759-193-05 IC LC85632
< JUMPER RESISTOR >
JC1 1-216-295-00 CONDUCTOR, CHIP (2012) (AUS)
JC2 1-216-295-00 CONDUCTOR, CHIP (2012) (AEP, IT, SP)
JC3 1-216-295-00 CONDUCTOR, CHIP (2012) (US, CND, E)
JC4 1-216-295-00 CONDUCTOR, CHIP (2012) (AEP, IT, SP, AUS)
JC5 1-216-295-00 CONDUCTOR, CHIP (2012)
JC6 1-216-295-00 CONDUCTOR, CHIP (2012)
RADIO
The components identified by mark
! or dotted line with mark ! are
critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le neméro spécifié.
Remark
1000uF 20% 10V
220uF 20% 16V
0.01uF 50V
0.01uF 50V
0.022uF 10% 25V
36PF 5% 50V
24PF 5% 50V
