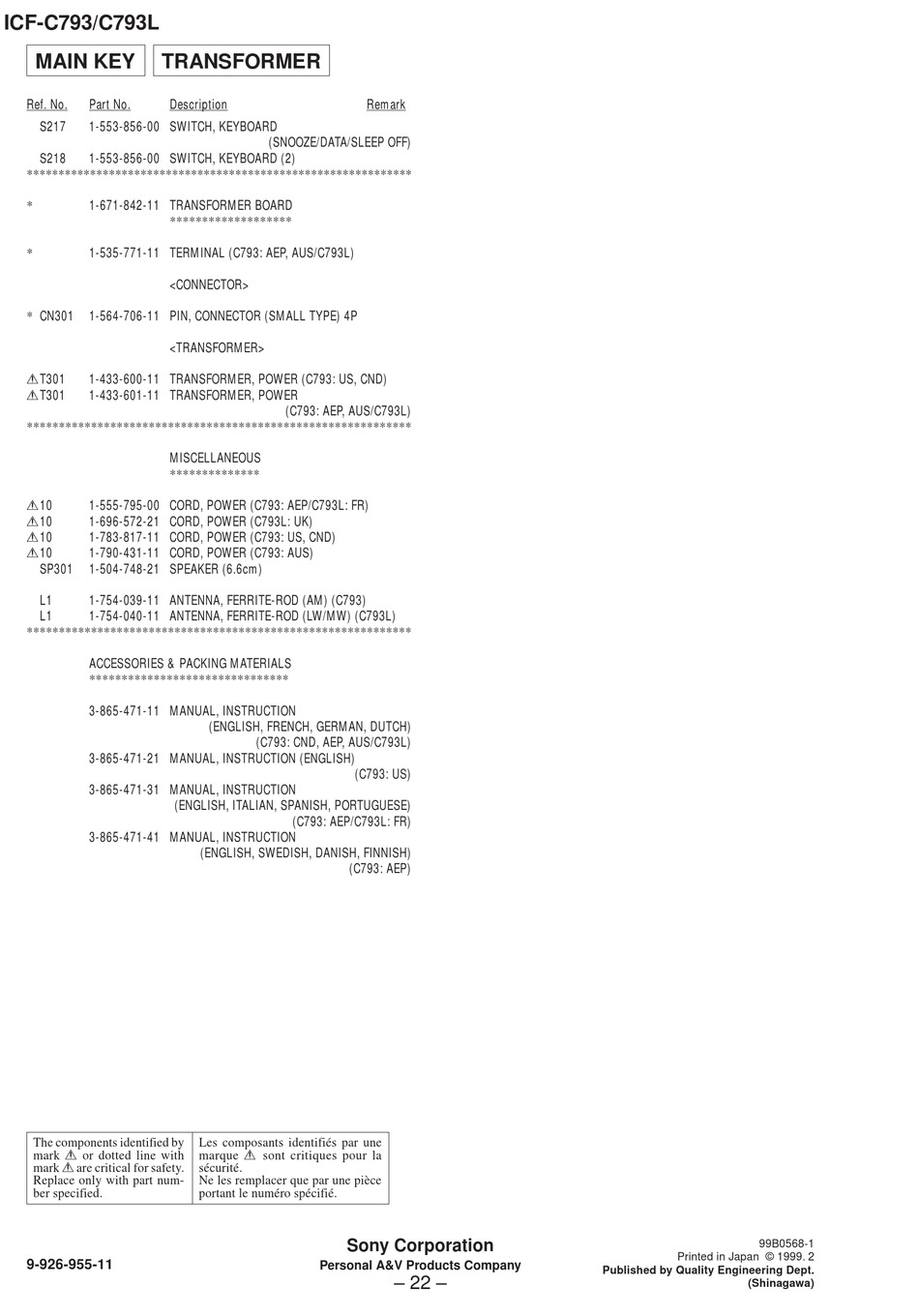

ICF-C793/C793L
MAIN KEY TRANSFORMER
Ref. No. Part No. Description
S217 1-553-856-00 SWITCH, KEYBOARD
S218 1-553-856-00 SWITCH, KEYBOARD (2)
*************************************************************
1-671-842-11 TRANSFORMER BOARD
*
*******************
1-535-771-11 TERMINAL (C793: AEP, AUS/C793L)
*
<CONNECTOR>
* CN301 1-564-706-11 PIN, CONNECTOR (SMALL TYPE) 4P
<TRANSFORMER>
! T301 1-433-600-11 TRANSFORMER, POWER (C793: US, CND)
! T301 1-433-601-11 TRANSFORMER, POWER
************************************************************
MISCELLANEOUS
**************
! 10 1-555-795-00 CORD, POWER (C793: AEP/C793L: FR)
! 10 1-696-572-21 CORD, POWER (C793L: UK)
! 10 1-783-817-11 CORD, POWER (C793: US, CND)
! 10 1-790-431-11 CORD, POWER (C793: AUS)
SP301 1-504-748-21 SPEAKER (6.6cm)
L1 1-754-039-11 ANTENNA, FERRITE-ROD (AM) (C793)
L1 1-754-040-11 ANTENNA, FERRITE-ROD (LW/MW) (C793L)
************************************************************
ACCESSORIES & PACKING MATERIALS
*******************************
3-865-471-11 MANUAL, INSTRUCTION
3-865-471-21 MANUAL, INSTRUCTION (ENGLISH)
3-865-471-31 MANUAL, INSTRUCTION
(ENGLISH, ITALIAN, SPANISH, PORTUGUESE)
3-865-471-41 MANUAL, INSTRUCTION
The components identified by
mark ! or dotted line with
mark ! are critical for safety.
Replace only with part num-
ber specified.
9-926-955-11
Remark
(SNOOZE/DATA/SLEEP OFF)
(C793: AEP, AUS/C793L)
(ENGLISH, FRENCH, GERMAN, DUTCH)
(C793: CND, AEP, AUS/C793L)
(C793: US)
(C793: AEP/C793L: FR)
(ENGLISH, SWEDISH, DANISH, FINNISH)
(C793: AEP)
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
