Removing the Freezer Drawer

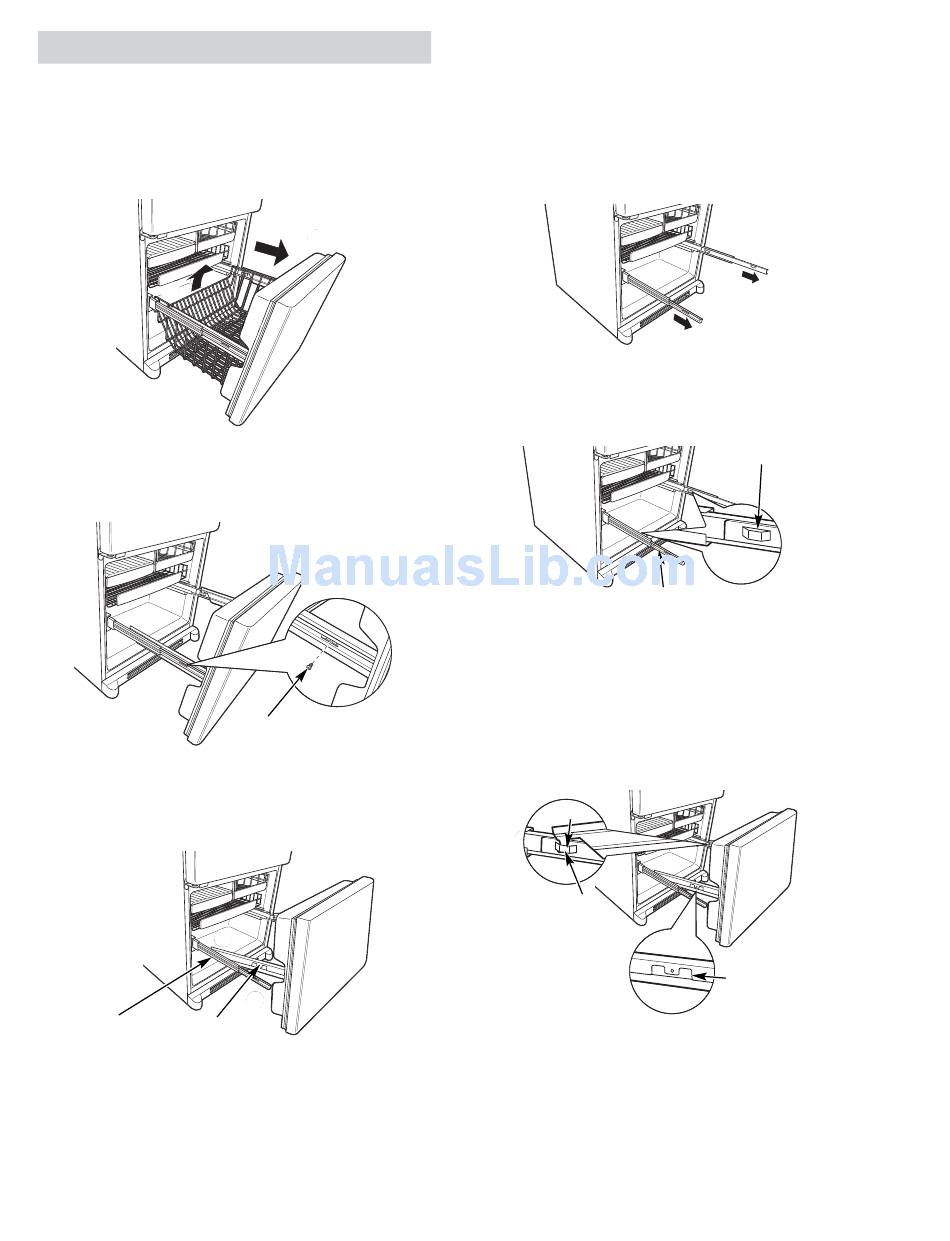

To remove the freezer drawer:
1. Open the freezer drawer until it stops. Lift up on
the back of the basket and lift the basket out of
the drawer.
2. Remove the 1/4-in. hex-head screw from the
inside of each railing.
3. Lift up on both sides of the freezer drawer
handle to separate the drawer railings from the
rail assemblies.
Drawer
Rail Assembly
Assembly
4. Set the drawer front on a non-scratching
surface and push the rail assemblies back into
locking position.
A
Screw
– 14 –
To replace the freezer drawer:
Note: Two people may be required to complete this
procedure.
1. Pull out the rail assemblies to their full length on
each side of the cabinet.
2. Locate the slots on the inside of the rail
assemblies near the back.
Rail assembly
3. Insert the hooks at the back of the drawer
railings into the slots on the rail assemblies.
4. Lower the front of the drawer, making sure the
tabs on the sides of the railings fi t into the front
slots in the rail assemblies.
Hook
Slot
5. Replace the screw on each rail assembly and
replace the freezer basket by lowering it into the
frame.
Slot
Tab
