InFocus SP-CEIL-UNIV Installation And Assembly Manual page 8

Note: The projector adapter plate and projector you are installing may differ in appearance from the sample illustrated
below.

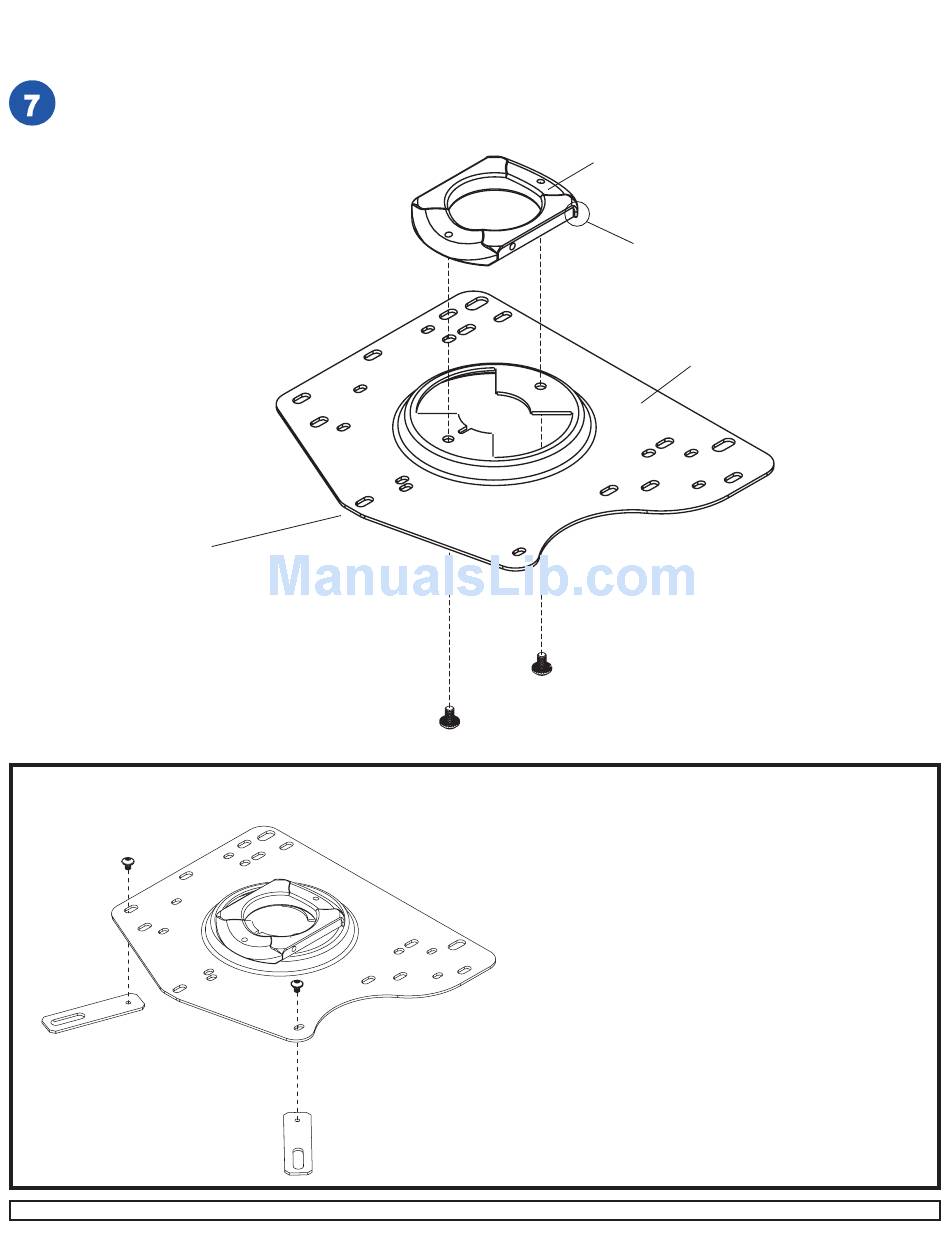

Align shoulder on connection block opposite of front of projector. Attach adapter plate (R) to connection block from
projector mount assembly (A) using two #10-32 x 3/8" serrated socket pin screws (C) as shown.
FRONT OF
PROJECTOR
P
S
Visit the InFocus Web Site at www.infocus.com
R
C
R
Attach extension brackets (S) to adapter plate (R)
using two M4 x 6 mm serrated socket pin screws (P).
For specific models, see step 8H.
8 of 11
CONNECTION BLOCK
SHOULDER
ADAPTER PLATE
ISSUED: 10-22-04 SHEET #: 055-9236-5 01-10-06
