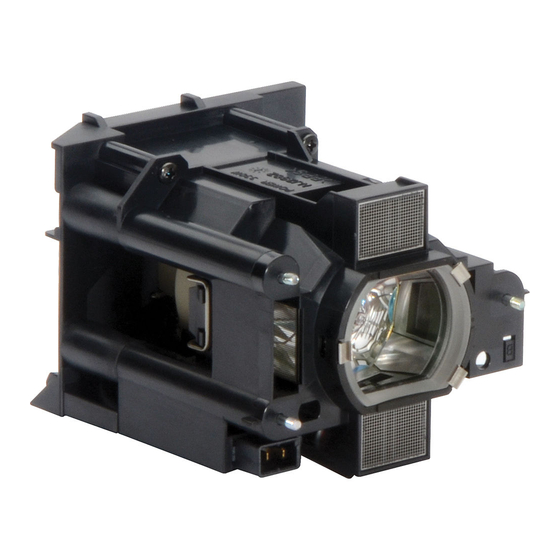

InFocus SP-LAMP-080 Replacement Instructions

Lamp Replacement Instructions

A lamp has a finite product life. Using the lamp for long periods of time could
cause the pictures to appear darker or the color tone to be poor. Note that each
lamp has a different lifetime, and some may rupture or burn out soon after you
start using them. It is recommended that you keep a spare lamp on hand.
Part number <IN5132, IN5134, IN5135> : SP-LAMP-080
Part number <IN5142, IN5144, IN5145> : SP-LAMP-081
1.
Turn the projector off, and unplug the power cord.
Allow the projector to cool for at least 45 minutes.
2.
If the projector is ceiling mounted, or if the lamp has
broken, you can ask the dealer to replace the lamp
for you, if desired.
If you want to replace the lamp yourself, follow the
following procedures:
3.

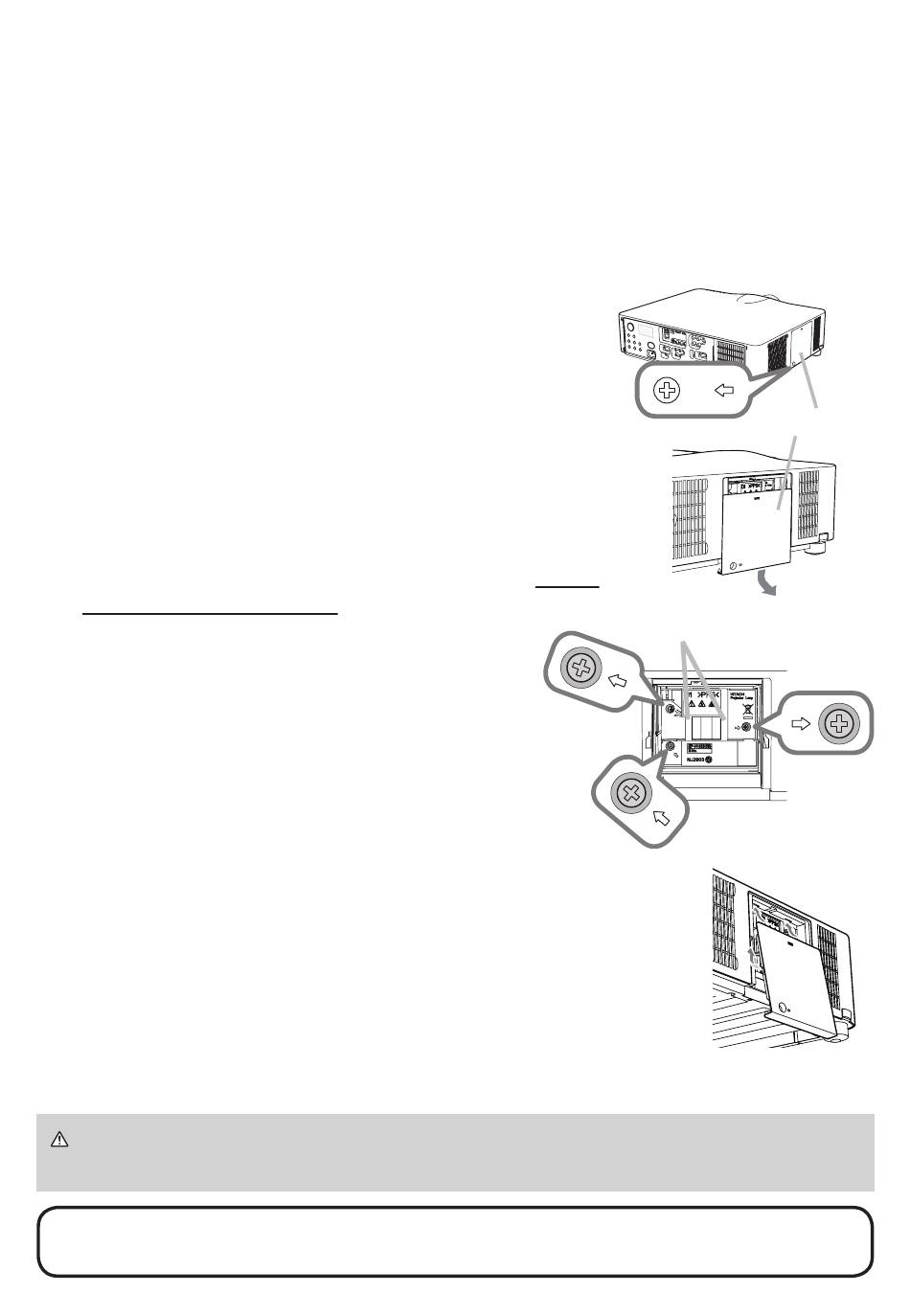

Loosen the lamp cover screw (marked by arrow) and
then slide the lamp cover down and remove the cover.
4.
Loosen the 3 lamp screws (marked by arrows),
and slowly pull the lamp out by the handles. Never
loosen any other screws.
5.
Insert the new lamp, and retighten the 3
lamp screws firmly to lock them in place.
6.
Align the lamp cover with the projector and slide
the lamp cover back in place. Then firmly fasten
the lamp cover screw.
7.
Turn the projector on and reset the lamp time
using the LAMP TIME item in the OPTION menu.
(1) Press the MENU button to display the menu.
(2) Highlight ADVANCED MENU in the menu using the ▼/▲
buttons, then press the ► button.
(3) Highlight OPTION in the left column of the menu using the
▼/▲buttons, then press the ► button.
(4) Highlight LAMP TIME using the ▼/▲ buttons, then press
the ► button. A dialog will appear.
(5) Press the button to select "OK" on the dialog and reset the
►
lamp time
CAUTION ►Do not touch the inside of the projector, while the lamp is
taken out.
NOTE • Only reset the lamp time after replacing the lamp to ensure proper
functioning of the lamp counter.
QR77393
Lamp cover
Handles
4, 5
6
3
1
