InFocus SP-CEIL-UNIV Installation And Assembly Manual page 10

J. IN72, IN74, IN76
*
R
• Always use an assistant or mechanical lifting equipment to safely lift and position the projector.

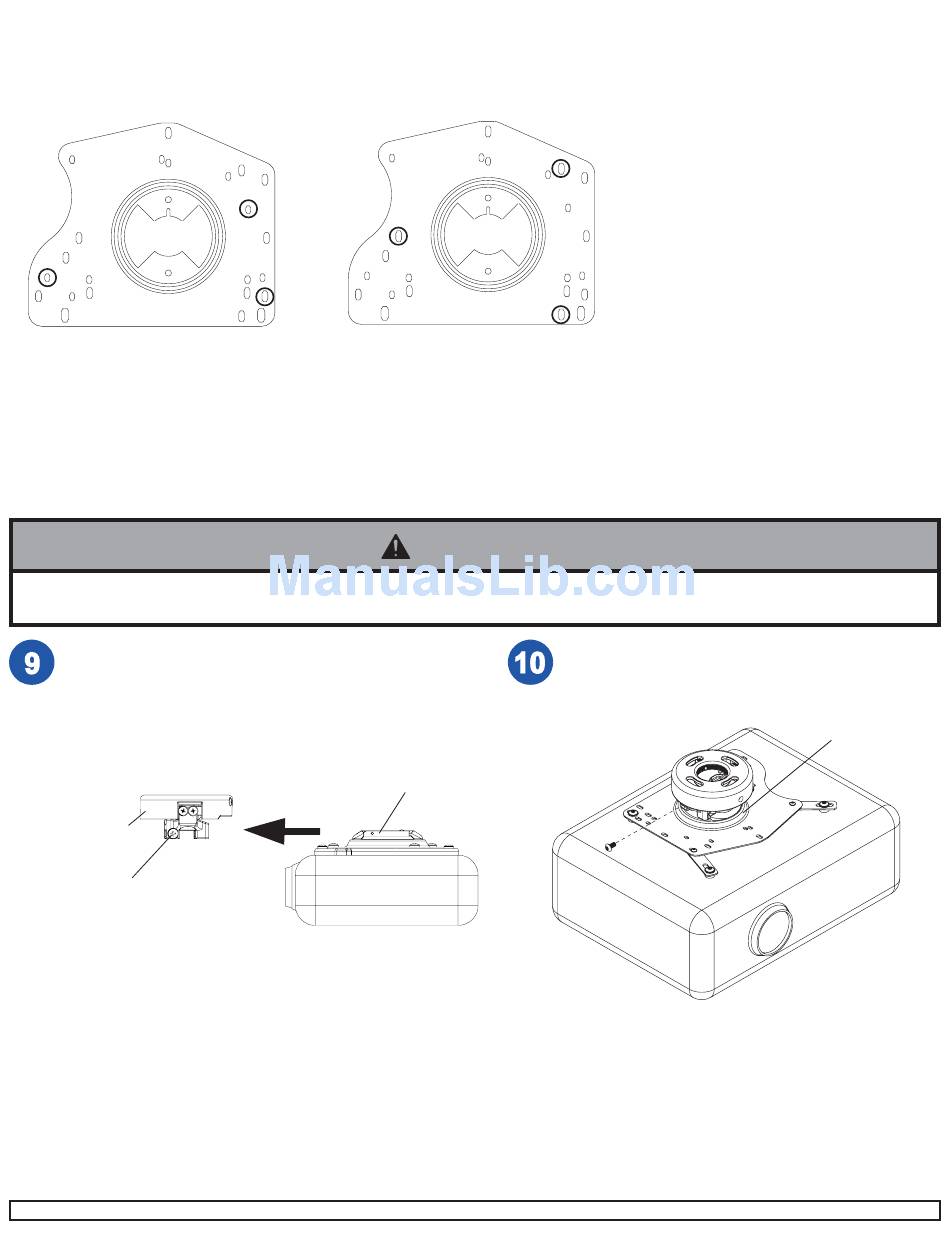

Slide connection block with projector into projector mount
assembly (A) as shown. Tighten captive screw to secure
projector to projector mount assembly (A).
FRONT OF MOUNT
CAPTIVE SCREW
Visit the InFocus Web Site at www.infocus.com
K. IN24, IN26
CONNECTION BLOCK
A
*
R
WARNING
IMPORTANT: For security installations, insert
one #10-32 x 1/4" socket pin screw (D) through
projector mount assembly (A) and into connection
block as shown.
10 of 11
A
D
ISSUED: 10-22-04 SHEET #: 055-9236-5 01-10-06
CONNECTION BLOCK
