Page 1: Quick Reference Guide
W i d e Fo r m at Pr i nter Ter i o s t ar LP-20 5 0 S er i e s Multifunction Model LP-2050-MF Printer Model LP-2050 Quick Reference Guide To operate your Printer correctly, read this manual carefully before use. -
Page 2: Table Of Contents
Preface Your Printer is a Teriostar LP-2050 Series Wide Format Printer. This manual describes the basic operation methods for both the LP-2050 and LP-2050-MF models. For more detailed information, see the User's Manuals on the supplied CD-ROM. Table of Contents Turning the Power On/Off ……………………... -
Page 3: Turning The Power On/Off
Turning the Power On/Off Power On Power Off Press down for 1 sec. or longer Mode Buttons z COPY button Changes to copy mode, and the lamp at the button's User's left lights up. For more details, see the separate Manual for Multifunction Printer Operation. -
Page 4: Replacing The Paper
Replacing the Paper... - Page 5 Replacing the Paper Approximately 90° Approximately 90° 60 cm (23.63 inches)
-
Page 6: Replacing The Toner Cartridge
Replacing the Toner Cartridge... - Page 7 Replacing the Toner Cartridge Disposing of Empty Toner Cartridges Put the used toner cartridge into the bag provided in the box of the new toner cartridge, and dispose of it according to the local regulations.
-
Page 8: Replacing The Waste Toner Bottle
Replacing the Waste Toner Bottle... - Page 9 Replacing the Waste Toner Bottle Disposing of Used Toner Bottles Dispose of the waste toner bottle according to the local regulations.
-
Page 10: Replacing The Charger Unit
Replacing the Charger Unit Press down for 1 sec. or longer... - Page 11 Replacing the Charger Unit ‘ The charger unit can be installed in either direction. If lines or other defects appear on the printout, inverting the charger unit right and left sides may solve the problem.
-
Page 12: Replacing The Process Cartridge
Replacing the Process Cartridge Press down for 1 sec. or longer... - Page 13 Replacing the Process Cartridge...
-
Page 14: Part Names

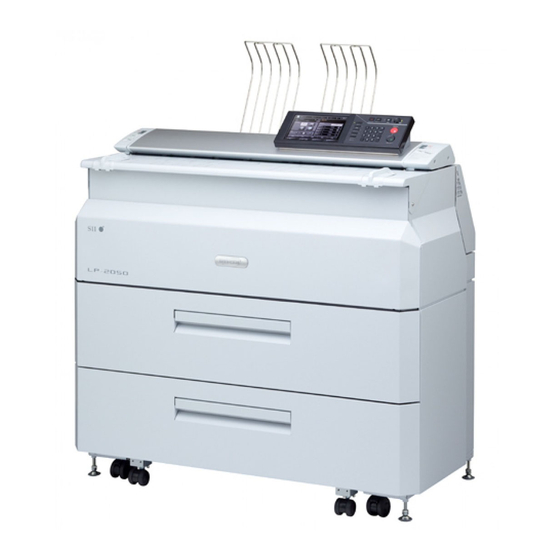

Part Names Front Side Multifunction Model Printer Model Scanner cover Toner door Document table Front door Drawer for rolls 1 and 2 Drawer for rolls 3 and 4... - Page 15 Part Names Rear Side Paper outlet slot Filter cover Latch button Waste toner door Process cartridge drawer Fuser unit drawer Paper outlet cover...
-
Page 16: Paper Jams
Paper Jams The door requiring action is displayed, in accordance with the paper jam location. Open the specified door and take the appropriate action to remove the paper jam. Paper jam in a Roll paper drawer Paper jam in the front door... - Page 17 Paper Jams When you cannot pull out the paper easily: Paper jam in the Fuser unit...
- Page 18 Paper Jams Paper jam in a roll paper drawer or front door...
- Page 19 Paper Jams Original jam...
-
Page 20: Copying Mf
Copying Press COPY Set the original Position the original facing down. Set it in the Printer aligned with the original width guide. The inserted original is automatically pulled into the Printer, and set. -
Page 21: Importing Images (Documents) To A Computer Mf
Importing Images (Documents) to a Computer Double-click TerioStation. Click the Scan tab. Click Save Folder. Select the destination folder to save the scanned data. Click OK. Click Scan. - Page 22 Importing Images (Documents) to a Computer Click Preferences. Input the Printer IP address in the Assign host name/IP address field. Click OK. Set the scan conditions, and then click Scan. Load the original. Important If "Scanner is operating in another mode" is displayed, press SCAN on the operation panel. ‹...
-
Page 23: Operating The Printer From A Computer Mf
Operating the Printer from a Computer Start the web browser and enter "http://(IP address set on the Printer)" in the address field. Press Enter. Click English. Click an item from the left menu to check the settings or Printer status. -
Page 24: Troubleshooting
Troubleshooting Automatic Paper Cutting After a Certain When an Error Message Appears Time Take the action specified by the panel message. Set Top Cut Timer in the Printer Engine menu. User's Manual for Basic Printer Or see the Menu Operation, Chapter Smears on a Printout Replace the process cartridge. -
Page 25: Automatic Paper Cutting After Opening
Troubleshooting Automatic Paper Cutting After Opening Wrinkles on Tracing Paper and Closing a Door Set Humidity for Tracing Paper to High Humidity in Set Top Cut at Door Open to On in the Printer the Printer Engine menu. Engine menu. Menu Menu Printer Engine... -
Page 26: Missing Print Or Slow Data Reception
Change the driver settings. In Start Menu, open Devices and Printers. Change the output process selection from Process with Printer to Process with Computer. Click OK. Right-click the SII LP-2050 icon, and then click Printing Preferences. Click Apply. Click the Options tab. - Page 27 Troubleshooting Click OK. If the problem persists: Perform steps 1 to 4 and open Driver Operation Mode. Print. If the symptom persists, perform the following setting operation. Set the resolution of the printer driver to 200dpi or 100dpi. Click OK.
- Page 28 Troubleshooting Click Apply. Click OK. Print. The User's Manuals and driver are on the supplied CD-ROM.
-
Page 29: Service Representatives
Service Representatives SIIT offers support to ensure you get the most from your Teriostar LP-2050 Series Printer. For details, contact your dealer or nearest service representative. http://www.seiko-i.com/ Disposal Method Dispose of the used toner cartridges and waste toner bottles according to the local regulations. - Page 30 This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
