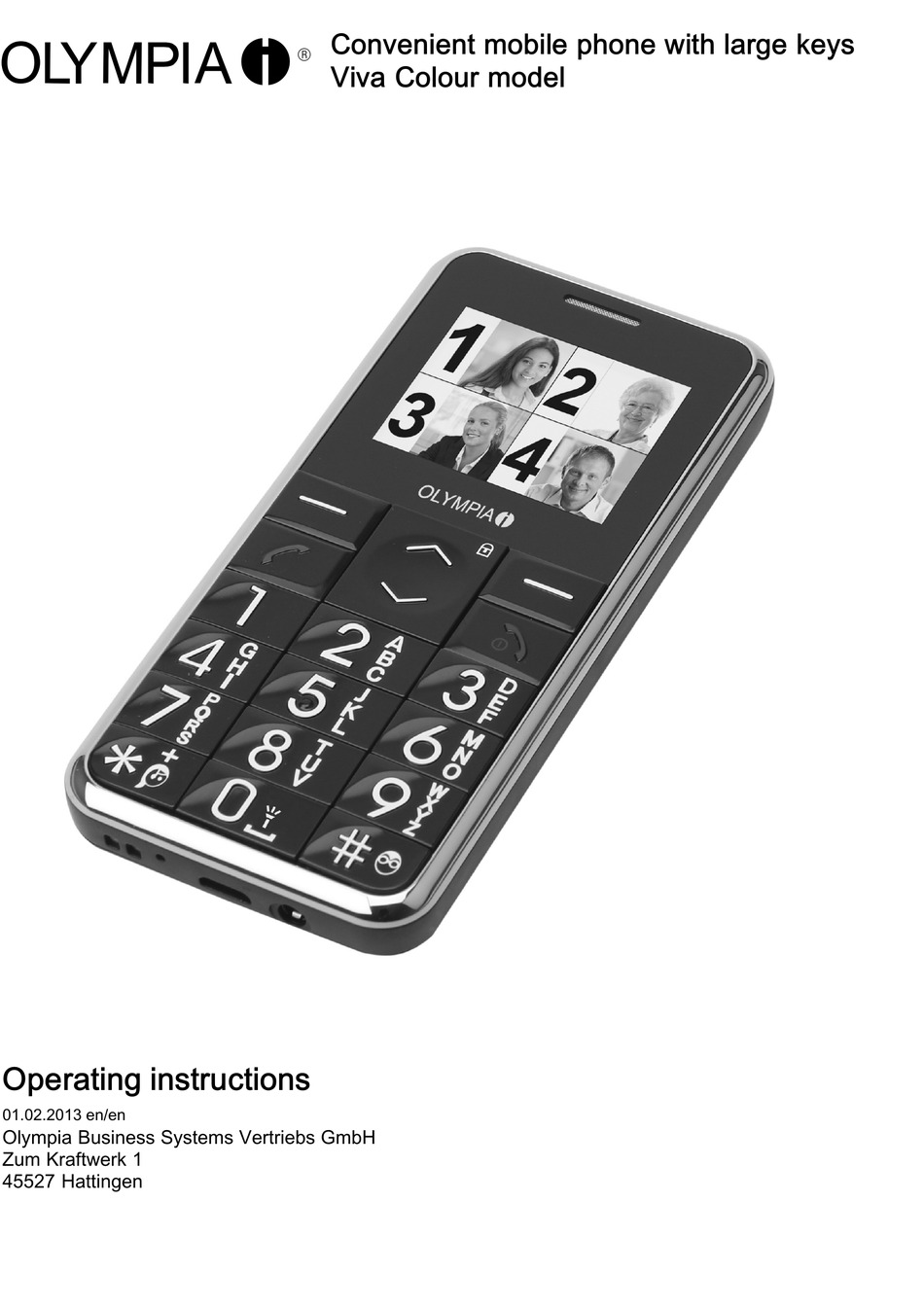

Page 1: Operating Instructions
Convenient mobile phone with large keys Viva Colour model Operating instructions 01.02.2013 en/en Olympia Business Systems Vertriebs GmbH Zum Kraftwerk 1 45527 Hattingen... -
Page 2: Table Of Contents
Contents Setting Up ................Operating Elements . -
Page 3: Setting Up
Setting Up Setting Up Caution: Before you start, please read the safety information on Page 25! Scope of delivery The box contains: 1 phone 1 USB connection cable 1 li-ion battery 1 charging cradle 1 USB charging adapter 1 headset 1 quick reference manual Installing the SIM card Caution:... - Page 4 Setting Up Inserting the microSD memory card The phone memory can be extended by installing the microSD memory card option. This increases the quantity of data which can be stored. 1. Open the silver metal clip beside the SIM card slot by sliding it gently downwards until it unlocks with a soft click.
- Page 5 Setting Up Alternatively, you can use the charging cradle supplied. Switching the phone on and off 3 sec. Switch the phone on. 3 sec. Switch the phone off. Note: Some SIM cards will require you to enter a PIN code. Follow the instructions which appear. Battery charge status indicator The current battery charge status is indicated in the display as follows: Full...
-
Page 6: Operating Elements
Operating Elements Operating Elements Earpiece Display Navigate up / Key lock on/off 4 C(right) Select picture / Back / Cancel Navigate down End a call / Switch phone on/off 7 0 - 9 Digit keys 0-9 Hash key / Speed dial number of male contact / Navigate right Switch torch on/off 10 * Star key / Speed dial number of female contact / Navigate left... -
Page 7: Getting Started
Getting Started Function keys Mode Press Press & Hold Standby Switch key lock on/off Standby Open main menu Menu Select submenu During call Adjust call volume Standby Display call list C(left) Menu Confirm selection Standby Switch phone on/off C(right) Menu Move back / Cancel C(right) Standby... - Page 8 Getting Started Softkeys Different functions are assigned to the softkeys C according to the various menus. Key lock The key lock function is intended to prevent other functions being activated inadvertently. Activate Standby mode and press: 2 sec. I Key lock on/off Note: Calls can still be taken in the normal way even when the key lock function is activated.
- Page 9 Getting Started Entering text and numbers The keys on the keypad are also labelled with letters for the entry of text. The phone provides various methods by which text can be entered. These are used when creating or editing entries in the phone book, when searching for names in the phone book and when writing text messages.
-
Page 10: Phone Book
Phone Book Phone Book The phone book in the phone can store up to 300 entries. You can store other entries on the SIM card. S Always enter phone numbers with the country and area codes. S When the memory capacity is used up, the corresponding message appears if an attempt is made to store another contact. -
Page 11: Making And Taking Calls
Making and Taking Calls Speed dialling You can use the speed dialling function to assign up to 8 phone numbers to the 2-9 keys. Note: You can only assign phone numbers which are already stored in the phone book to speed dialling keys. - Page 12 Making and Taking Calls Dialling numbers from the phone book Check that phone numbers are stored in the phone book. C(left) Open the main menu I/J Phonebook C(left) Open the phone book. I/J … A Select an entry and dial the number. Note: To skip directly to an entry, use the digit keys to enter the first letters of the name stored.
-
Page 13: Text Messages (Sms)
Text Messages (SMS) Text Messages (SMS) Your phone can be used to transmit and receive text messages. This menu is used to write and manage your text messages. Note: It is possible that not all functions described are supported by every mobile service pro vider. - Page 14 Text Messages (SMS) Sent messages Text messages sent are stored in the Sent messages menu. Navigate in the Sent messages menu to select a text message using I/J and press C(left) to select from the following menu options: View View text message. Forward Send the message received to another person.
-
Page 15: Call Lists
Call Lists Call Lists Your mobile phone stores the last numbers dialled, calls received and calls missed in a corresponding call lists. Note: If one of the phone numbers received matches an entry in the phone book, the associated name appears. C(left) I/J Call logs C(left)I/J Call history C(left) Press the I/J keys to navigate and press C (left) to select from the following menu options: Missed calls... - Page 16 Call Lists Diverting calls This menu is used to divert incoming calls to another number which you define. Navigate in the Call divert option using the I/J keys and press C(left) to select any of the following menu options: Divert all voice calls Diverts all incoming phone calls.
-
Page 17: Phone Settings
Phone Settings Phone Settings The Phone settings menu is used to modify the basic settings, such as time, language, etc. To access the menu, press the following: C(left) I/J Settings C(left) I/J Phone settings C(left) Navigate using the I/J keys and press C(left) to select from the following menu options: Time and date Setting the time and date, Page 17. -
Page 18: Security Settings
Security Settings Network selection Navigate in the Network selection menu using the I/J keys and press C(left) to select any of the following menu options: New search Search for available networks. Select network Select network manually. Selection mode Select whether a network will be defined automatically or manually. Security Settings Navigate in the Security settings menu using the I/J keys and press C(left) to select from the following options:... -
Page 19: Restoring The Default Factory Settings
Restoring the Default Factory Settings Restoring the Default Factory Settings Note: If you restore the factory (default) settings, all the data saved is lost! You must use the phone lock password ( Page 18) to restore the default settings. Proceed as follows to restore the factory settings: 1. -
Page 20: Organizer
Organizer Adapting user profiles Navigate in the profile with the I/J keys and press C(left) to select from the following menu options: Alert type Set whether the phone should ring and vibrate, ring only or vibrate only. Ring type Set the ringing type. Incoming call Set the ringing tone for incoming calls. - Page 21 Organizer Tasks Navigate in the Tasks option using the I/J keys and press C(left) to select from the following options: View View the task selected. Creating tasks, Page 21. Edit Edit the task (change name, date, time, etc.). Search Search for a task. Delete Delete the task selected.
-
Page 22: Multimedia
Multimedia Multimedia This mobile phone is equipped with an integrate radio and image viewer. Radio The FM radio function can be used to receive radio stations and listen to them via the headset (supplied). Navigate as follows: C(left) I/J Multimedia I/J FM radio C(left) Switch the radio on/off. -
Page 23: Troubleshooting
Troubleshooting Troubleshooting Problems and solutions Problems Solutions The mobile phone cannot - No battery inserted. be switched on. - Battery is not charged. No signal quality is dis - No network connection. The mobile phone is in a location where played. -
Page 24: Technical Properties
Technical Properties Technical Properties Feature Value Standard 900, 1800 MHz dual band Dimensions (H x W x D) 116.3 x 54 x 14.1 [mm] Weight Approx. 87 g incl. battery Power supply Input: 100-240 V, 50-60 Hz, 0.15 A Output: 5 V, 500 mA Battery 3.7 V, 600 mAh Charging time: approx. -
Page 25: Safety Information
Safety Information Safety Information Please read this section carefully. Caution: Risk of suffocation! Keep packaging materials and protective foils out of reach of children. Intended use This mobile phone is designed for use when connected to a mobile phone network. Any other use is considered unintended use. - Page 26 Safety Information Power adapter plug Attention: Only use the power adapter plug supplied because other power supplies could damage the telephone. Ensure access to the power adapter plug is not obstructed by furniture or such. Rechargeable batteries Attention: Never throw batteries into a fire. Only use batteries of the same type. Bar code label in the phone The bar code label contains information on the phone, such as the serial number, for example.
-
Page 27: Maintenance / Guarantee
Maintenance / Guarantee Maintenance / Guarantee Maintenance S Clean the housing surfaces with a soft, fluff-free cloth. S Do not use any cleaning agents or solvents. Guarantee Keep in a safe place! -
Page 28: Declaration Of Conformity
DoC-Nr.: 2123 Rev: 01 1. gemäß der Richtlinie 1999/5/EG (R&TTE) accordance to Directive 1999/5/EC (R&TTE Directive) OLYMPIA Business Systems Vertriebs GmbH ....................... Der Hersteller / Verantwortliche Person erklärt, dass das Produkt: The manufacturer / responsible persondeclares that the product: Mobile Phone Model: Olympia VIVA Colour …... -
Page 29: Index
Index Alarm, 21 Navigation, 8 Taking a call, 11 Network, 5 Talk time, 12 Barring calls, 16 Network selection, 18 Tasks, 21 Battery charge indicator, 5 Network settings, 17 Text messages, 13 Notation, 7 Time and date settings, 17 Calendar, 20 Tips on the battery, 23 Call list options, 15 Operating elements, 6... - Page 30 Please note that the copyright for this operating instruction manual lies with Olympia and, there fore, may not be copied or sold. The data and information in the operating instruction manual is only intended for personal use. All rights reserved.
