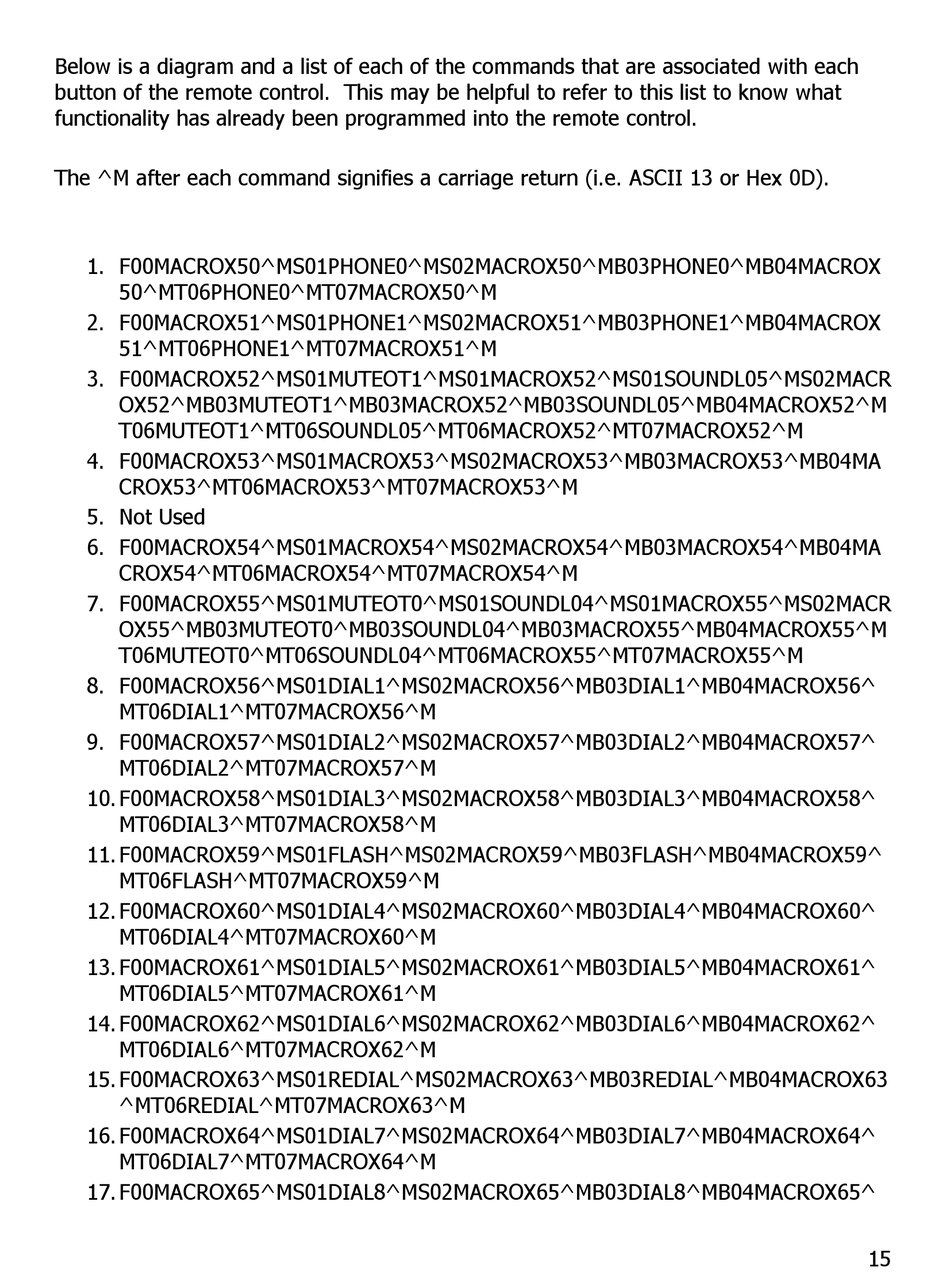

Below is a diagram and a list of each of the commands that are associated with each
button of the remote control. This may be helpful to refer to this list to know what
functionality has already been programmed into the remote control.
The ^M after each command signifies a carriage return (i.e. ASCII 13 or Hex 0D).
1. F00MACROX50^MS01PHONE0^MS02MACROX50^MB03PHONE0^MB04MACROX
50^MT06PHONE0^MT07MACROX50^M
2. F00MACROX51^MS01PHONE1^MS02MACROX51^MB03PHONE1^MB04MACROX
51^MT06PHONE1^MT07MACROX51^M
3. F00MACROX52^MS01MUTEOT1^MS01MACROX52^MS01SOUNDL05^MS02MACR
OX52^MB03MUTEOT1^MB03MACROX52^MB03SOUNDL05^MB04MACROX52^M
T06MUTEOT1^MT06SOUNDL05^MT06MACROX52^MT07MACROX52^M
4. F00MACROX53^MS01MACROX53^MS02MACROX53^MB03MACROX53^MB04MA
CROX53^MT06MACROX53^MT07MACROX53^M
5. Not Used
6. F00MACROX54^MS01MACROX54^MS02MACROX54^MB03MACROX54^MB04MA
CROX54^MT06MACROX54^MT07MACROX54^M
7. F00MACROX55^MS01MUTEOT0^MS01SOUNDL04^MS01MACROX55^MS02MACR
OX55^MB03MUTEOT0^MB03SOUNDL04^MB03MACROX55^MB04MACROX55^M
T06MUTEOT0^MT06SOUNDL04^MT06MACROX55^MT07MACROX55^M
8. F00MACROX56^MS01DIAL1^MS02MACROX56^MB03DIAL1^MB04MACROX56^
MT06DIAL1^MT07MACROX56^M
9. F00MACROX57^MS01DIAL2^MS02MACROX57^MB03DIAL2^MB04MACROX57^
MT06DIAL2^MT07MACROX57^M
10. F00MACROX58^MS01DIAL3^MS02MACROX58^MB03DIAL3^MB04MACROX58^
MT06DIAL3^MT07MACROX58^M
11. F00MACROX59^MS01FLASH^MS02MACROX59^MB03FLASH^MB04MACROX59^
MT06FLASH^MT07MACROX59^M
12. F00MACROX60^MS01DIAL4^MS02MACROX60^MB03DIAL4^MB04MACROX60^
MT06DIAL4^MT07MACROX60^M
13. F00MACROX61^MS01DIAL5^MS02MACROX61^MB03DIAL5^MB04MACROX61^
MT06DIAL5^MT07MACROX61^M
14. F00MACROX62^MS01DIAL6^MS02MACROX62^MB03DIAL6^MB04MACROX62^
MT06DIAL6^MT07MACROX62^M
15. F00MACROX63^MS01REDIAL^MS02MACROX63^MB03REDIAL^MB04MACROX63
^MT06REDIAL^MT07MACROX63^M
16. F00MACROX64^MS01DIAL7^MS02MACROX64^MB03DIAL7^MB04MACROX64^
MT06DIAL7^MT07MACROX64^M
17. F00MACROX65^MS01DIAL8^MS02MACROX65^MB03DIAL8^MB04MACROX65^
